25W 12V 24V 90V DC Small Gearbox Motor with High Torque
| Price: |
US $ 44.5-55.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
Z3D25-12GN-30S/3GN18K |
| Dimensions Of Device: |
70mm |
| Power: |
25W |
| Voltage: |
12V |
| No-Load Speed: |
3000rpm |
| Load Speed: |
3000rpm |
| Reduction Ration: |
1:9 |
| Brush Life: |
2000h |
| Net Weight: |
3.7kg |
| Packaging Details: |
12 PCS in 1 Carton (Optional) |
| Delivery Tdetail: |
15 Days |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brush |
| Type: |
Other |
| Certification: |
SGS |
| Brand: |
Sy |
Product Description
This gear motor include a 24V 90W DC MOTOR and a gearhead with gear ratio 20:1
This size is 70mm, and 25W dc gear motor have the other size is 90mm.
We can change the power, voltage, gear ratio and other data according to your requirements.
Features:
1. Dimensions of device: 60mm, 70mm, 80mm, 90mm, 104mm
2. Power: 6W, 15W, 25W, 40W, 60W, 90W, 120W, 250W
3. Voltage: 12V, 24V, 90V, 220V
4. Shape of motor shaft:
1) GN: Genaral Helical Gear
2) A1: Milling Keyway
3) GU: Reinforced Helical Gear
4) A: Flat type
5. Gear type:
1) GN: General Helical Gear
2) GU: Reinforced Helical Gear
Motor voltage, power, and speed will be customized according to your request under the allowed circumstanced of adoptable dimension
Our company is specialized in mirco AC gear motors. At present, there are three kinds of motors in our company:
1) micro gear motor include AC gear motor and DC gear motor;
2) small AC gear motor;
3) High precision planetary gearbox.
They are widely used in machine tools, textile machinery, medical appliance, conveying machines, printing mechanism, food machinery, vending machines, packing machinery, and gumming machines. With excellent equipment, advanced procedure, scientific management, and modern test method, we can provide all customers both at home and abroad with our top quality products, favorable prices and sincere service. We hope that we canestablish long-term business relationships together with you for mutual business success.
| type | Power
W | Voltage
V | No-load Parameters | Load Parameters | Brush life
H | Motor weight
kg |
| | | | Speed
r/min | Current
A | Speed
r/min | Torque
mN.m | Current
A | | |
| Z2D(W) | 6 | 12 | 3200 | 0.6 Max. | 2950 | 19 | 0.8 | 2000 | 0.6 |
| | 6 | 24 | 3200 | 0.3 Max. | 2950 | 19 | 0.5 | 2000 | 0.6 |
| | 6 | 90 | 3200 | 0.1 Max | 3000 | 19 | 0.2 | 2000 | 0.6 |
| | 15 | 12 | 3000 | 0.7 Max | 2800 | 51 | 2.0 | 2000 | 0.7 |
| | 15 | 24 | 3200 | 0.3 Max | 2950 | 48 | 1.0 | 2000 | 0.7 |
| | 15 | 90 | 3000 | 0.1 Max | 2900 | 49 | 0.3 | 2000 | 0.7 |
| Z3D(W) | 25 | 12 | 3300 | 1.0 Max | 3000 | 80 | 3.0 | 2000 | 1.0 |
| | 25 | 24 | 3200 | 0.6 Max | 2800 | 87 | 1.6 | 2000 | 1.0 |
| | 25 | 90 | 3200 | 0.2 Max | 3000 | 80 | 0.5 | 2000 | 1.0 |
| Z4D | 40 | 12 | 3200 | 2.0 Max | 3000 | 127 | 5.2 | 2000 | 1.8 |
| | 40 | 24 | 3200 | 0.8 Max | 3000 | 127 | 2.1 | 2000 | 1.8 |
| | 40 | 90 | 3100 | 0.3 Max | 2950 | 129 | 0.6 | 2000 | 1.8 |
| Z5D | 40 | 12 | 3200 | 2.0 Max | 3000 | 127 | 5.2 | 2000 | 1.9 |
| | 40 | 24 | 3000 | 1.0 Max | 2800 | 140 | 2.2 | 2000 | 1.9 |
| | 40 | 90 | 3100 | 0.3 Max | 2950 | 129 | 0.6 | 2000 | 1.98 |
| | 60 | 12 | 3200 | 2.0 Max | 2950 | 194 | 7.5 | 2000 | 2.2 |
| | 60 | 24 | 3100 | 1.5 Max | 2800 | 210 | 3.5 | 2000 | 2.2 |
| | 60 | 90 | 3200 | 0.3 Max | 3000 | 191 | 1.0 | 2000 | 2.2 |
| | 90 | 12 | 3300 | 3.0 Max | 2800 | 307 | 10.0 | 2000 | 2.2 |
| | 90 | 24 | 3100 | 1.5 Max | 2800 | 307 | 5.0 | 2000 | 2.2 |
| | 90 | 90 | 3100 | 0.5 Max | 2850 | 302 | 1.5 | 2000 | 2.2 |
| | 120 | 12 | 3400 | 3.0 Max | 3000 | 382 | 14.0 | 2000 | 2.2 |
| | 120 | 24 | 3300 | 1.5 Max | 2600 | 441 | 7.0 | 2000 | 2.2 |
| | 120 | 90 | 3100 | 0.3 Max | 3000 | 382 | 1.8 | 2000 | 2.2 |
| Z55D | 250 | 24 | 3600 | 4.0 Max | 3200 | 746 | 16.0 | 2000 | 3.2 |
| | 250 | 90 | 3300 | 2.0 Max | 3000 | 796 | 4.2 | 2000 | 3.2 |
| | 250 | 220 | 3100 | 0.2 Max | 2800 | 853 | 1.5 | 2000 | 3.2 |
| Z6D | 250 | 24 | 3600 | 4.0 Max | 3200 | 746 | 16.0 | 2000 | 5 |
| | 250 | 90 | 3300 | 2.0 Max | 3000 | 796 | 4.2 | 2000 | 5 |
| | 250 | 220 | 3100 | 0.2 Max | 2800 | 853 | 1.5 | 2000 | 5 |

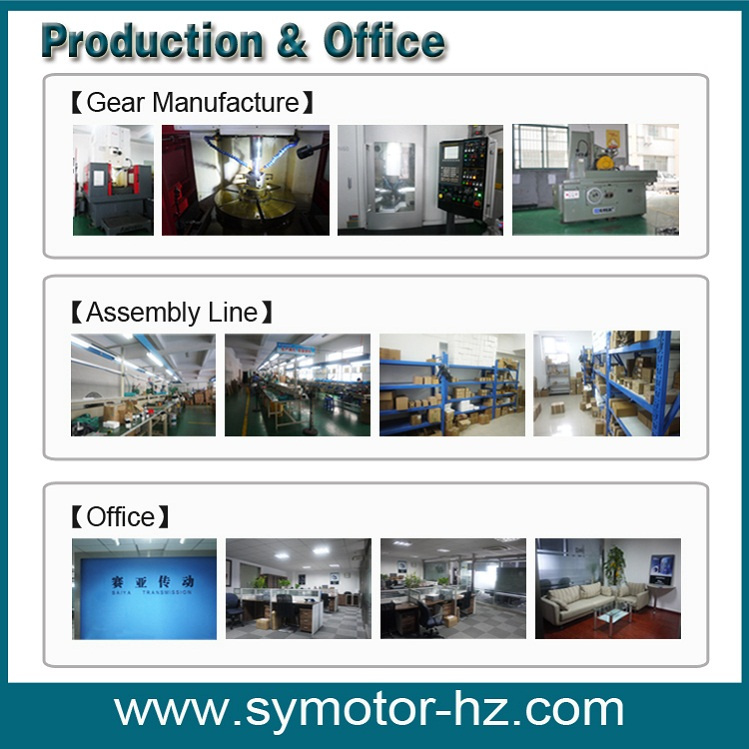

The brief introduction of our company:
Our company supplys different kinds of products. High quality and reasonable price.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
To perfect our service, we provide the products with good quality at the reasonable price.

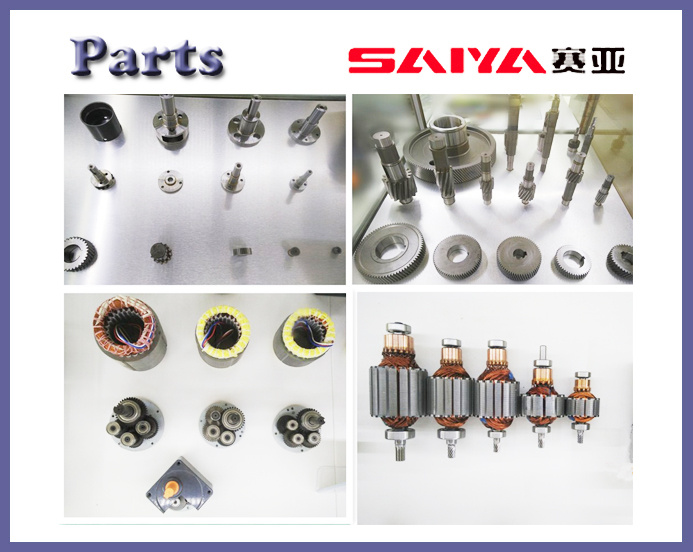

The Products Of Our Company:
Our Company Is Specialized In Gear Motors. At Present, There Are Three Kinds Of Motors In Our Company:
1) Micro Gear Motor Include Micro AC Gear Motor And Micro DC Gear Motor;
2) Small AC Gear Motor;
3) Planetary Gear Motor.
The Usages Of Our Products:
They Are Widely Used In Machine Tools, Textile Machinery, Medical Appliance, Conveying Machines, Printing Mechanism, Food Machinery, Vending Machines, Packing Machinery, And Gumming Machines. With Excellent Equipment, Advanced Procedure, Scientific Management, And Modern Test Method, We Can Provide All Customers Both At Home And Abroad With Our Top Quality Products, Favorable Prices And Sincere Service.
You Can Tell Us About Your Requirements, And We Will Help You To Find The Right Type And Model Which Is Suitable For Your Products. Or You Can Also Provide Your Products Information And We Can Help You To Choose The Right Motors For You.
We Hope That We Can Establish Long-term Business Relationships Together With You For Mutual Business Success.
Motor Voltage, Power, And Speed Will Be Customized According To Your Request Under The Allowed Circumstanced Of Adoptable Dimension
