2700W 72V 32A on Board Lithium Battery Charger

Name: 2700W 72V 32A on Board Lithium Battery Charger
Brand: all-electronics-online.com
SKU: 818034305
Availability: InStock
Rating: 5 (89 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD2700-EVCN08-83
Output Power:	2700W
Color:	Black
Warranty:	5 Years or 100,000 Km
Type:	Lithium Ion Battery Charger
Charging Type:	Electric Charger
Principle:	PWM

Product Description

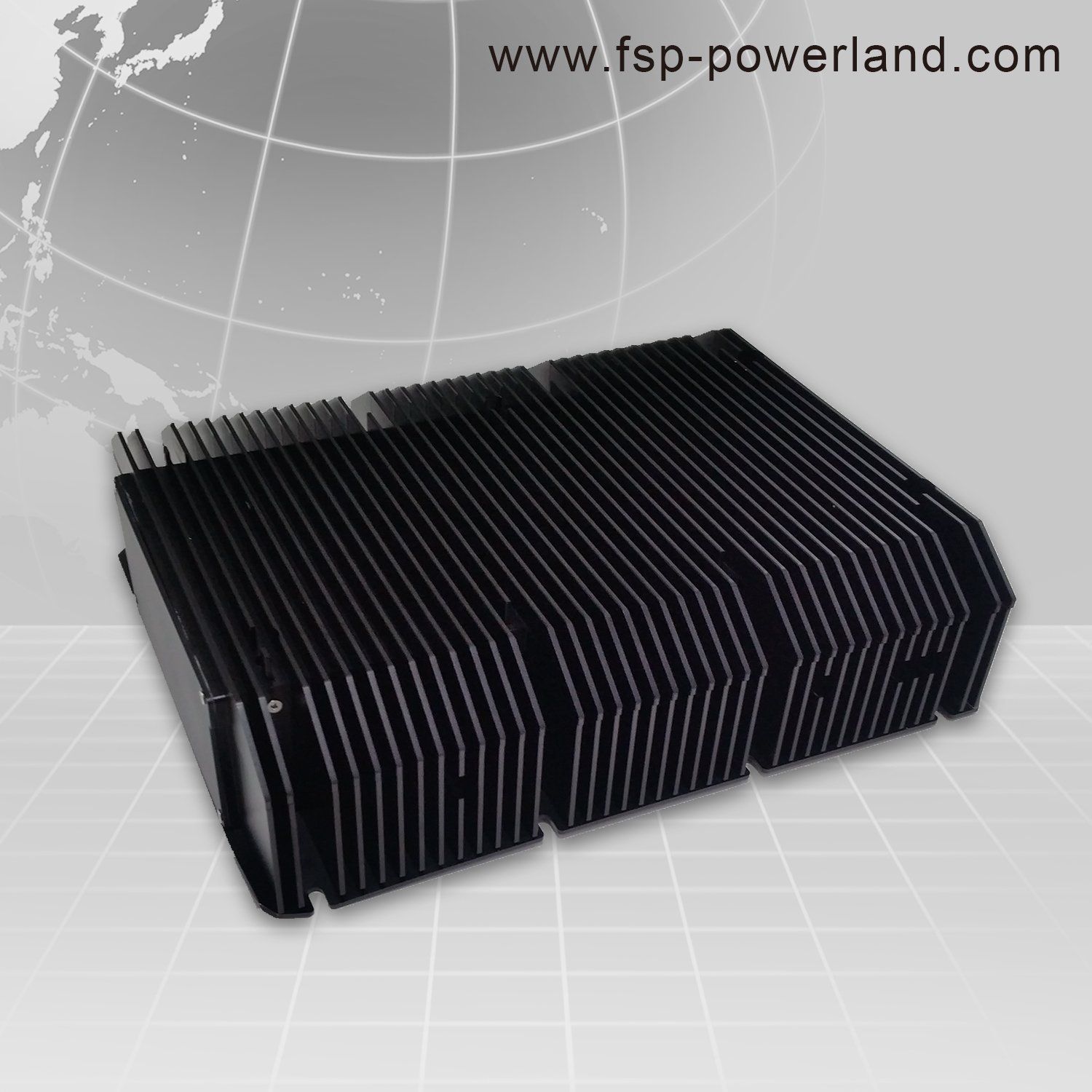

2700W 72V 32A Lithium Battery Charger

Powerland's 2700W 72V Lithium battery charger is designed with ultra-high efficiency, as well as full metal case enclosure. The extraordinary performances of low power dissipation and water proof provide the chargers high reliability and super long life time. This series of chargers offer solid power conversions for applications such as e-vehicles, e-boat, e-machines, etc.

Features
Universal AC Input :185~265 Vac
Output Power:2700W
High Reliability
Efficiency Up to 93%
All-around Protections:OVP,OCP,SCP,OTP,UVLO
Low Temperature Start Up -20 ºC
High Temperature Full Load Operation:50 ºC
Three Times Life Time

Warranty: 5 Years or 100,000 km

Model Specifications

Model Number	Output Current	Output Current Range	Output Voltage Range
PLD2700-EVCN08-83	32A	95%Io~105%Io	40V~83V

Specifications

Model	PLD2700-EVCN08-83
Output Voltage	40V~83V
Output Current	32A
Max. Output Voltage (Float Charging)	83V
Current Accuracy	±5%
Voltage Accuracy	±0.5%
Output Power	2700W
Input Voltage Range	185~265Vac
Input Frequency Range	47-63Hz
Input Current(MAX)	14A@230Vac
Max. Input Power	3000W
Power Factor	>0.95@230Vac
Efficiency	93% @ 230Vac
THD	20%Max
Protections	OVP, OTP , SCP, Open Circuit Protection
Environmental Protection Rating	IP65
Working Temp	-20ºC~+55ºC
Cooling	Free Air Cooling
Max Case Temp. (o C)	<85oC@25ºC Ambient Temperature
EMI	Comply with EN55014
Surge Protection	1kV/2kV
Isolation Test	Primary to Secondary: 3000Vac / 10mAMax / 60seconds Primary to Earth: 1500Vac 10mA max./60 seconds Secondary to Earth: 500Vac 10mA max./60 seconds
Dimension	294x232x71.6mm (LxWxH)
Weight	6.2Kg
Life Time	50,000 hours at 25ºC, 230Vac Input, and Continuous Full Load Output
