280W 36V Fanless Lithium Battery Charger

Name: 280W 36V Fanless Lithium Battery Charger
Brand: all-electronics-online.com
SKU: 817979095
Availability: InStock
Rating: 4.5 (86 reviews)

Price:	US $ 18.54-18.64/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD280-EVCS06-42
Output Power:	280W
Color:	Black
Warranty:	2 Year
Type:	Lithium Ion Battery Charger
Charging Type:	Electric Charger
Principle:	PWM

Product Description

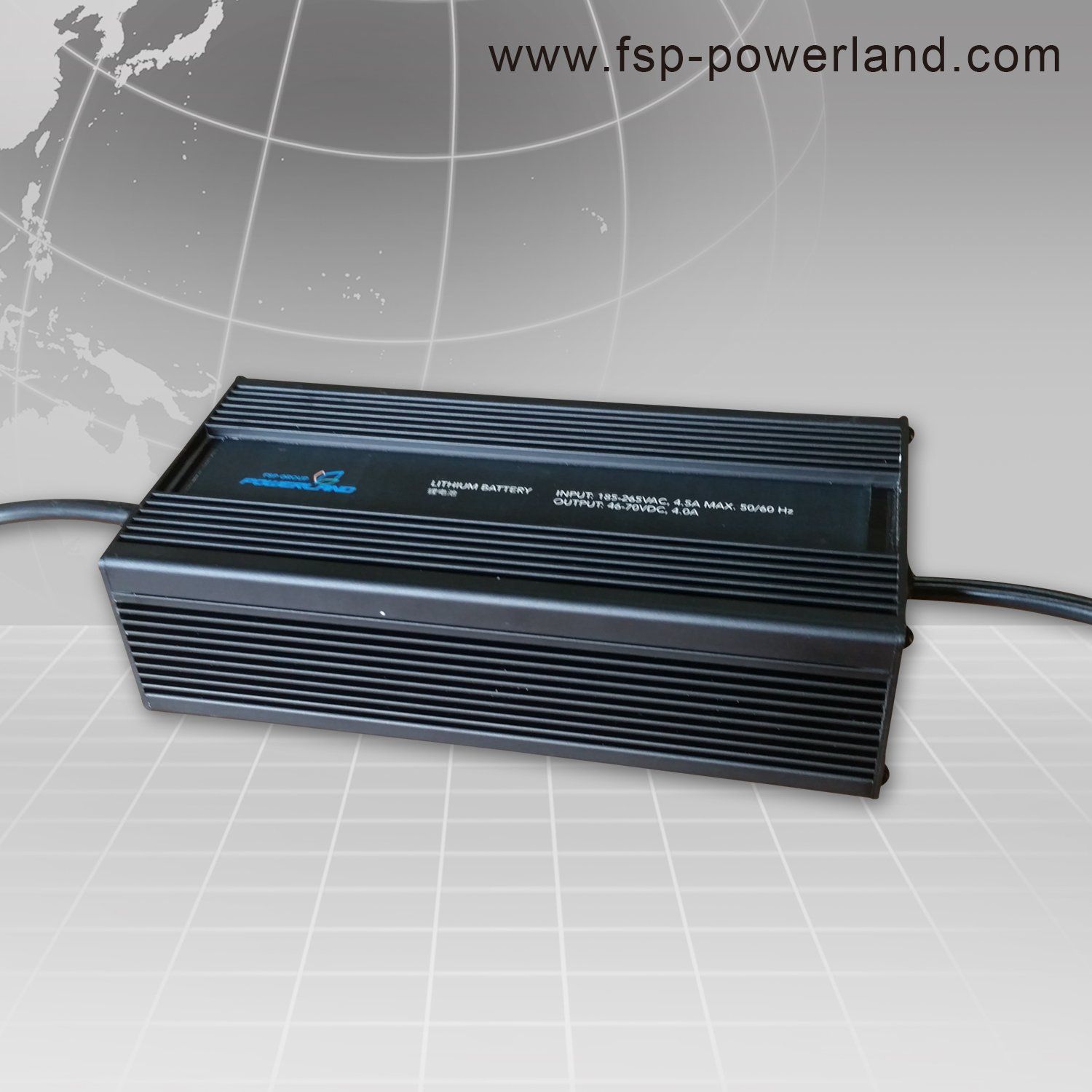

280W 36V Fanless Lithium Battery Charger

Powerland's 280W 36V Lithium battery chargers are designed with ultra-high efficiency,as well as full metal case enclosure. The extraordinary performances of low power dissipation and water proof provide the chargers high reliability and super long life time. This series of chargers offer solid power conversions for applications such as e-vehicles, e-bikes, e-motorcycles, e-boat, emachines, etc.

Features
Universal AC Input :90~264 Vac
Output Power:280W
High Reliability
Efficiency Up to 93%
All-around Protections:OVP,OCP,SCP,OTP
Low Temperature Start Up -20 ºC
High Temperature Full Load Operation:50 ºC
IP65 Ingress Grade
Three Times Life Time
2 Year Warranty

Model Specifications

Model Number	Output Power	Output Current	Output Voltage	Output Current Range
PLD280-EVCS06-42	280W	6.6A	25~42V	95~105%Io

Specifications

Model	PLD280-EVCS06-42
Output Voltage	25~42V
Output Current	6.6A
Current Accuracy	±5%
Voltage Accuracy	±0.5%
Output Power	280W
Input Voltage Range	90~264Vac
Input Frequency Range	47-63Hz
Input Current(MAX)	3A @115Vac 1.6A @230Vac
Max. Input Power	320W
Power Factor	0.97 Min @115Vac 0.95 Min @230Vac
Efficiency	93% @ 230Vac 90% @115Vac
THD	20%Max
Protections	OVP, OTP , SCP, Open Circuit Protection
Environmental Protection Rating	IP65
Working Temp	-20ºC~+50ºC
Cooling	Free Air Cooling
Max Case Temp. (o C)	<55ºC @ 25ºC Ambient Temperature
Electromagnetic Compliance	Comply with EN55014
Surge Protection	1kV DM, 2kV CM
Isolation Test	Primary to Secondary: 3000Vac / 10mAMax / 60seconds Primary to Earth: 1500Vac 10mA max./60 seconds Secondary to Earth: 500Vac 10mA max./60 seconds
Dimension	2108851mm (LxWxH)
Weight	1.92Kg,4.23lb
Life Time	15,000 hours at 25 ºC, 230Vac input, and full load output.

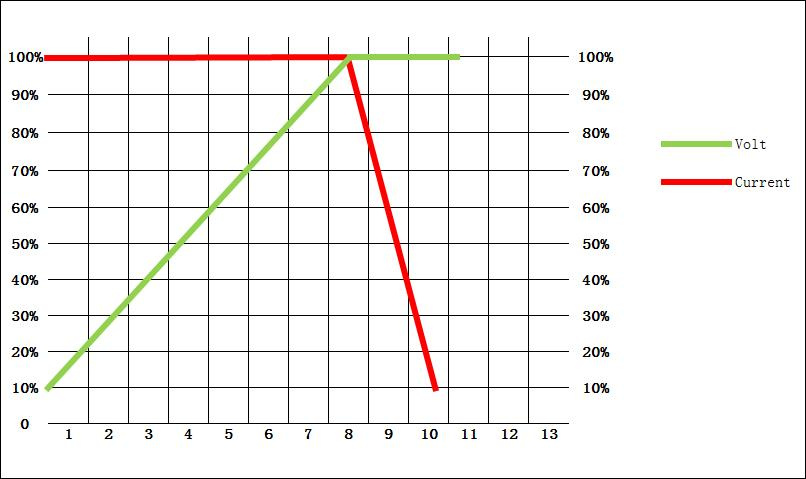

Charging Curve

Our Service & Payment

FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.

Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.

Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
