280W 46V-70.4V 4A Lithium Battery Charger

Name: 280W 46V-70.4V 4A Lithium Battery Charger
Brand: all-electronics-online.com
SKU: 818020985
Availability: InStock
Rating: 5 (133 reviews)

Price:	US $ 15.54-15.64/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD280-15CF03
Output Power:	280W
Color:	Black
Warranty:	2 Year
Type:	Lithium Ion Battery Charger
Charging Type:	Electric Charger
Principle:	PWM

Product Description

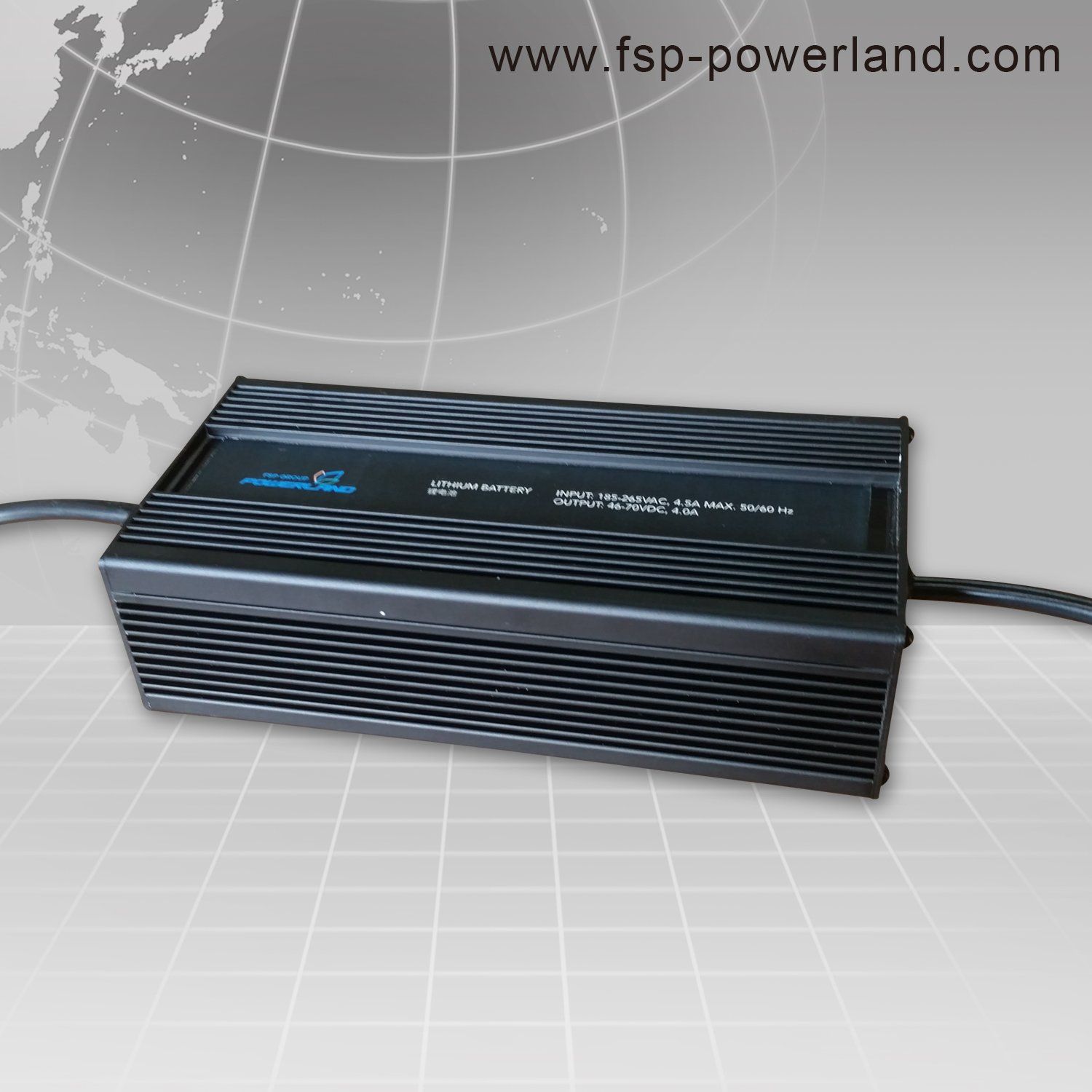

280W 46V-70.4V 4A Lithium Battery Charger

Powerland's 60V Lithium battery chargers are designed with ultra-high efficiency, as well as full metal case enclosure. The extraordinary performances of low power dissipation and water proof provide the chargers high reliability and super long life time. This series of chargers offer solid power conversions for applications such as e-vehicles, e-bikes, e-motorcycles, e-boat, e-machines, etc.

Features
Universal AC Input :90~264 Vac
Output Power:280W
High ReliabilityEfficiency Up to 93%
All-around Protections:OVP,OCP,SCP,OTP
Low Temperature Start Up -20 ºC
High Temperature Full Load Operation:50 ºC
IP65 Ingress Grade
Three Times Life Time
2 Year Warranty

Model Specifications

Model Number	Output Power	Output Voltage	Output Current	Output Current Range
PLD280-15CF03	280W	46~70.4V	4A	95~105%Io

Specifications

Model	PLD280-15CF03
Output Voltage	46~70.4V
Output Current	4A
Max. Output Voltage (Float Charging)	70.4V
Output Voltage @ Open Circuit	70.4V
Current Accuracy	±5%
Voltage Accuracy	±0.5%
Output Power	280W
Input Voltage Range	90~264Vac
Input Frequency Range	47-63Hz
Input Current(MAX)	3A@115Vac 1.5A@230Vac
Max. Input Power	320W
Power Factor	>0.97@115Vac, >0.95@230Vac
Efficiency	90%@115Vac 93%@230Vac
THD	20%Max
Protections	OVP, OTP , SCP, Open Circuit Protection
Environmental Protection Rating	IP65
Working Temp	-20ºC~+50ºC
Cooling	Free Air Cooling
Max Case Temp. (o C)	<55ºC@25ºC Ambient Temperature
EMI	Comply with EN55014
Surge Protection	1kV DM, 2kV CM
Isolation Test	Primary to Secondary: 3000Vac/10mA max./60s Primary to Earth: 1500Vac/10mA max./60s Secondary to Earth: 500Vac/10mA max./60
Dimension	210x88x51mm (LxWxH)
Weight	1.92kg
Life Time	30,000 hours at 25ºC, 230Vac Input, and Continuous Full Load Output
