2kv Digital AC Power Source

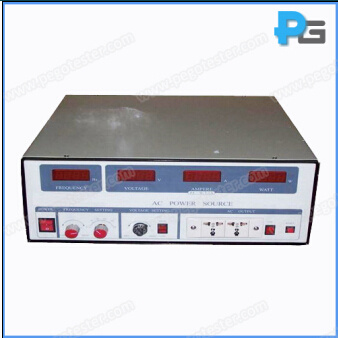

Name: 2kv Digital AC Power Source
Brand: all-electronics-online.com
SKU: 775630665
Availability: InStock
Rating: 4.7 (53 reviews)

Price:	US $ 1000-5000/Set
Trade Terms:	FOB,EXW
Min Order:	1/Set
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Ty-8200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition:	New
Lead Time:	15 Days
Service:	Oec or ODM
Capacity:	500va, 1kVA, 5kVA etc.
Output Type:	Single
Warranty:	1 Year
Input Voltage:	220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Output Power:	2kVA

Product Description

IGBT/PWM AC Power Source
Features:
1. 4 digits display voltage (V),frequency (Hz),current(A) and power(W) at real time.
2.Not radiation interference,low harmonic.
3.Purity and stable sine-wave.
4.Protection at over-current,high temperature and short-circuit.

Model		TY-8200(IGBT/PWM)	TY-8201(IGBT/PWM)	TY-8202(IGBT/PWM)
Phase		Single phase (1 phase, 2 wire) Single phase
Capacity		500VA	1KVA	2KVA
Input	Voltage	220V±10%
	Frequency	47Hz-63Hz or 400Hz±5%
Output	Voltage	0-150V (Low range)
		0-300V (High range)
	Current	4.2A (Low range)	8.4A(low range)	16.8A(low range)
		2.1A (High range)	4.2A(high range)	8.4A(high range)
	Load stability	≤±1%
	Frequency	43.0Hz-400Hz		40.0Hz-499.9Hz
	Stability	≤±0.01%
	Harmonic distortion	Sine-wave, ≤2%
	Frequency meter	4 digit, resolution: 0.1Hz/step
	Voltmeter	4 digit, resolution: 0.1V
	Amperemeter	4 digit, resolution: 0.1A
	Wattmeter	4 digit, resolution: 0.1W
Protection and warning device		Overload, high temperature, short circuit, cut down
Working condition	temperature	0-40ºC
	humidity	0-90%

Note: Accept customized

3. Pego supplies standard or customized solutions and products for many tests, measurements and quality control tasks required in the field of cable, wire, socket, plug, switch, plastic and rubber testing. All of our products are complying with the requirements of many standards, such as IEC, UL, VDE, VS, JIS, GB and so on.

4. Our products include: Glow wire tester, Needle flame tester, horizontal and vertical burning tester, tracking tester, textile burning tester, protective clothing thermal conductivity tester, Water Spray Nozzle, automotive interior combustion tester, Spring Operated Impact Hammer, universal testing machine and other testing instruments.

Please feel free to contact us if you are interested in our products. We'll be very happy to give your the best quotation on your detail requirements.

Pego Tester (Jiangxi) is founded by PEGO GROUP in 2011, a professional high-tech enterprise engaged in developing, marketing and service for electronic test equipment. Our business scope includes IEC60061-3 gauges for lamp caps and holders, UL498/VDE0620/BS1363-1 gauges for plug and socket, IEC61032 IP code probes, UL probes, flame test apparatus, glow-wire test apparatus, tracking index apparatus, needle flame test apparatus, ground resistance tester, insulating resistance tester, hipot tester, temperature chamber, waterproof test equipment, dust chamber, spring hammer, pendulum hammer, tumbling barrel test equipment, test vessels, ESD gun, surge generator, goniophotometer, integrating sphere, spectroradiometer, power supply and etc. Besides, we can provide customized service.

Nowadays, we have several production lines in China, we imported advance technology and machines to make the gauges to keep high precision, and use the world famous-brand components to make the equipment more reliable. We promise the customers can get the high quality products during the shortest lead time, and we can provide the third-lab calibration certificates if customer request. The Pego's products have been sold to the world wide, and widely used in labs, production line, QC and R&D departments with the features of high precision, simple operation, humanization design and good performance.

To Provide better user experience with better quality and better price is the motto of Pego. With the growth of test items, PEGO hope to grow with our users, and search for better test solution for our users.
