500va Digital Adjustable AC Power Source

Name: 500va Digital Adjustable AC Power Source
Brand: all-electronics-online.com
SKU: 790769565
Availability: InStock
Rating: 4.3 (136 reviews)

Price:	US $ 100-5000/Set
Min Order:	1/Set
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	TY-8200
Capacity:	500va, 1kVA, 2kVA etc.
Phase:	Single Phase
Output Type:	Single
Warranty:	1 Year
Input Voltage:	220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Output Power:	2kVA

Product Description

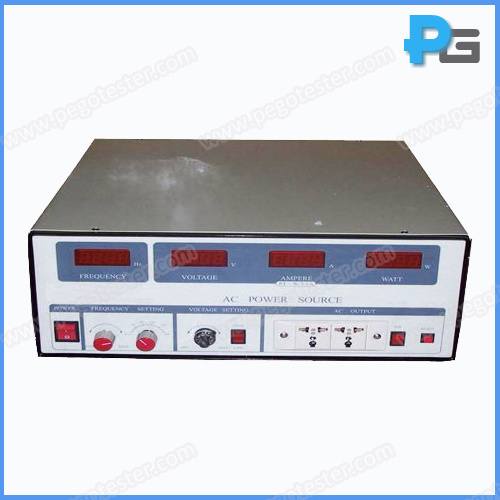

500VA Digital Adjustable AC Power Source
Features:
1. 4 digits display voltage (V),frequency (Hz),current(A) and power(W) at real time.
2.Not radiation interference,low harmonic.
3.Purity and stable sine-wave.
4.Protection at over-current,high temperature and short-circuit.

Model		TY-8200(IGBT/PWM)	TY-8201(IGBT/PWM)	TY-8202(IGBT/PWM)
Phase		Single phase (1 phase, 2 wire) Single phase
Capacity		500VA	1KVA	2KVA
Input	Voltage	220V±10%
	Frequency	47Hz-63Hz or 400Hz±5%
Output	Voltage	0-150V (Low range)
		0-300V (High range)
	Current	4.2A (Low range)	8.4A(low range)	16.8A(low range)
		2.1A (High range)	4.2A(high range)	8.4A(high range)
	Load stability	≤±1%
	Frequency	43.0Hz-400Hz		40.0Hz-499.9Hz
	Stability	≤±0.01%
	Harmonic distortion	Sine-wave, ≤2%
	Frequency meter	4 digit, resolution: 0.1Hz/step
	Voltmeter	4 digit, resolution: 0.1V
	Amperemeter	4 digit, resolution: 0.1A
	Wattmeter	4 digit, resolution: 0.1W
Protection and warning device		Overload, high temperature, short circuit, cut down
Working condition	temperature	0-40ºC
	humidity	0-90%

Note: Accept customized
