2u or 3u Height Rack Mount UPS for House

Name: 2u or 3u Height Rack Mount UPS for House
Brand: all-electronics-online.com
SKU: 777979645
Availability: InStock
Rating: 4.4 (79 reviews)

Price:	US $ 1-100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operating Temperature:	0-40 Degree
Transfer Time:	0ms
Communications:	RS232
Intelligent Slot:	Snmp Adaptor
Phase:	Single Phase
Type:	On-line
Protection:	Overcurrent
Brand:	Upsen

Product Description

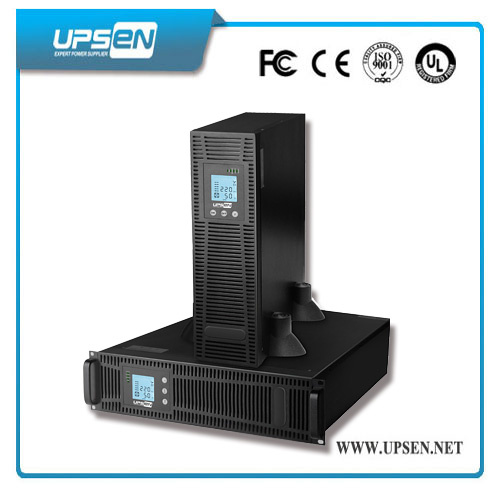

2U or 3U Height Rack mount UPS for house
High Frequency Online UPS Rack Tower Star Series RT 1K-10KVA(1Ph in/1Ph out)

Key Features:
1:High Frequency and double conversion online technology
2:LCD Disply ,SNMP card , USB Communication is option
3:Automatic startup function, Long-term type power design
4:Smart RS232 communication with monitoring software
5:Microprocessor control optimizes reliability
6:User-Replaceable hot swappable battery design & cold startup capability
7:High-performance DSP, precision and fast data processing, high reliability
8:Diverse options of accessories, intelligent management
9:Comprehensive display allows easy monitoring and access of UPS status
10:True on-line double conversion technology with advanced microprocessor control
11:Enable to extend runtime with scalable external battery pack (inbuilt 10A battery charger)

Applications
Alarm Systems,Marine Equipment,Cable Television,Data Processing Center,National Defense System, telecom, bank, hospital, bureau, traffic, public security, ATM etc.

Technical Specification

MODEL(RT Series)		RT1K	RT1KL	RT2K	RT2KL	RT3K	RT3KL	RT6KL	RT10KL
Input	Rated Capacity	1KVA/800W		2KVA/1600W		3KVA/2400W		6KVA/4800W	10KVA/8000W
	Voltage	90 ± 5 ~290 ± 5Vac						176 ~ 276Vac
	Current	6A(max)		12A(max)		16A(max)		31A(max)	60A(max)
	Frequency	40 ~ 60 Hz
	Power factor	Conformity EN60555-2(≥0.95)							≥0.95(MAX)
Output	Voltage	220Vac ( 1 ± 2%)						220Vac ( 1 ± 1%)
	Current	4.55A		9.1A		13.6A		27.3A	54A
	Frequency	(50 ± 2)Hz						(50 ± 1)Hz
	Power Factor	0.8 lag
	Waveform	Sine Wave
	Waveform	Linear ≤ 7% when RCD 100% loading (Non-line)
	Distortion	Linear ≤ 3% when RCD 100% loading (line)
Overload protection		105%< <125% → 50s						100%-125%, 1 minutes to
		125%< <150% → 25s						transfer to bypass; >150%,
		>150% → 300s						100ms to transfer to bypass
Transfer Time		Oms
Type of Battery		Sealed lead acid maintenance-free
External Battery Voltage		3x7 Ah	36Vdc	6x7 Ah	72Vdc	8x7 Ah	96Vdc	192Vdc/240Vdc
Working	Operating	0-40ºC
Environment	Temperatures(ºC)
	Relative	0-90(%)
	Temperature(ºC)
	Altitude	<1500m
Communication		9pin D trpe comector (RS232)
Size (WXDXH) mm		482x450x88		Standard Type (3U): 482x680x132.5				482x680x132.5
				Long Backup Type (2U): 482x450x88
Weight (kg)		14.5	8	22	9.8	26	9.8	20	25
