Product Description

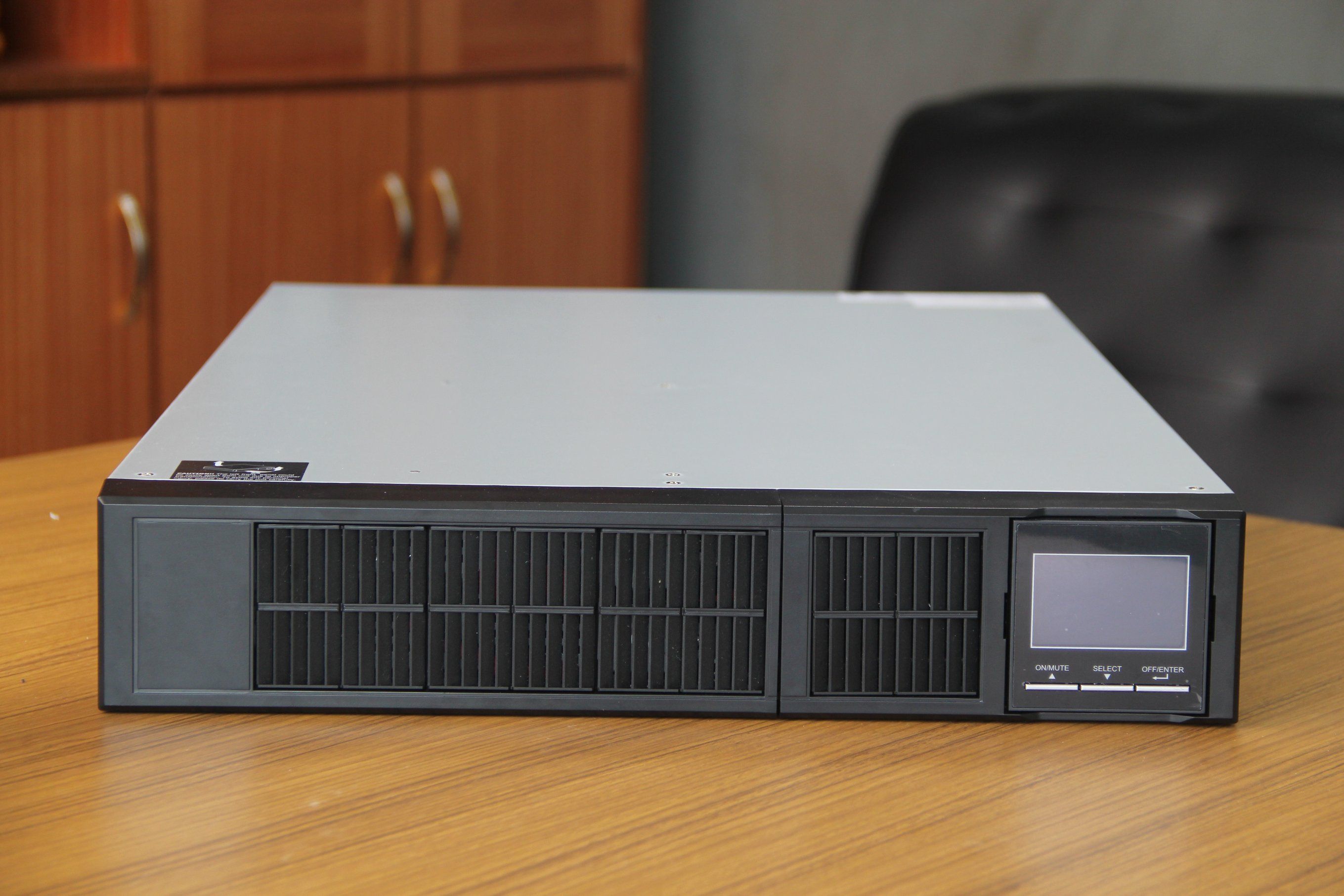

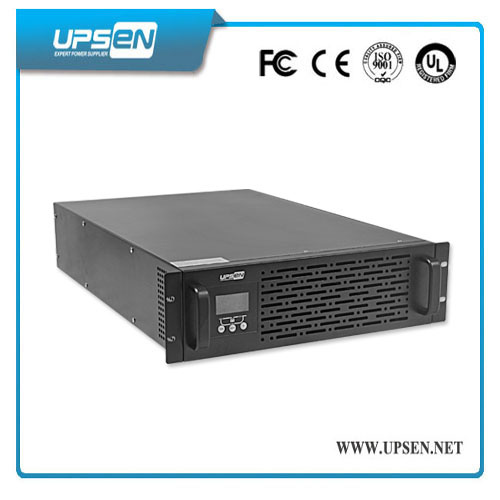

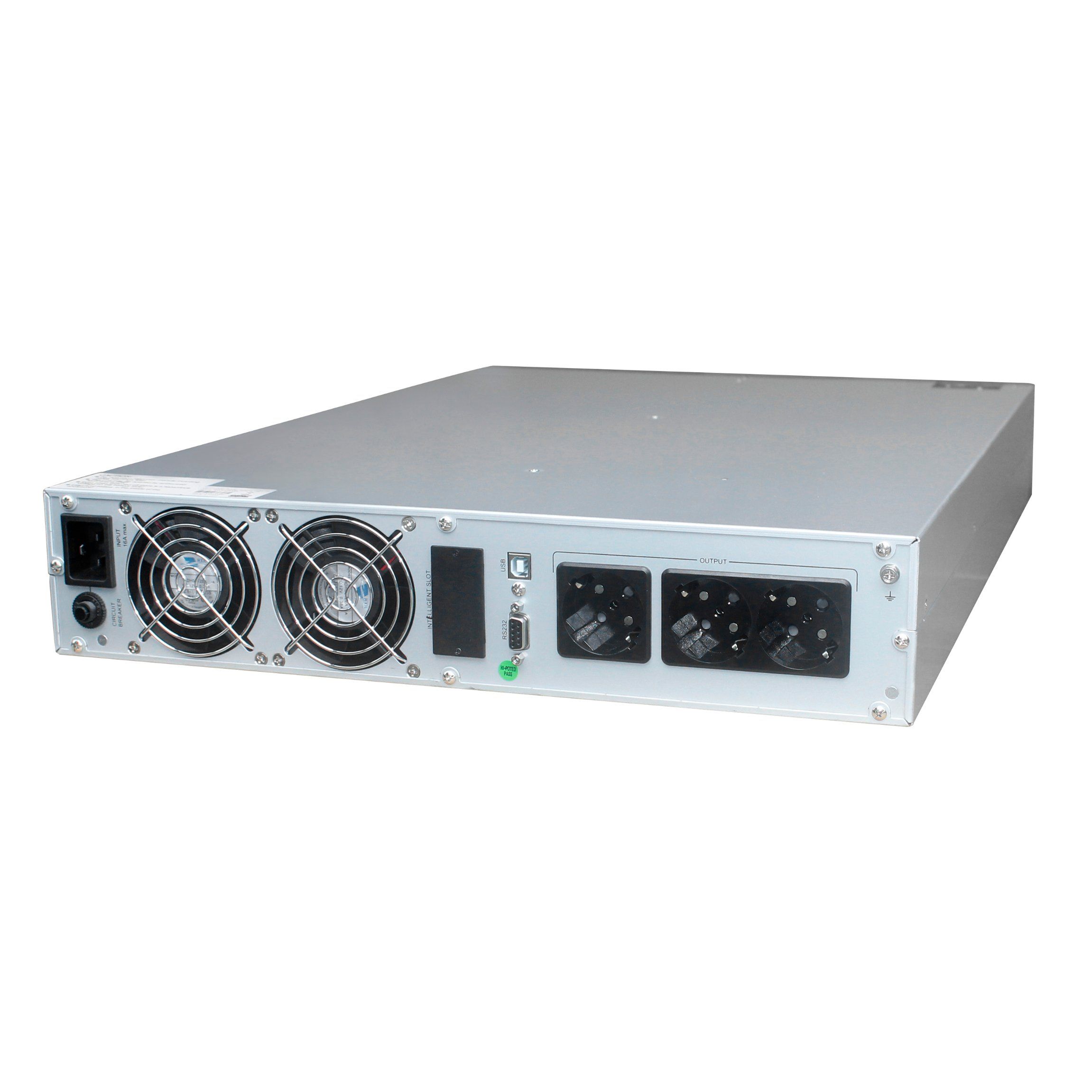

2U Rack Mount UPS Double Conversion Online UPS with EPO
UPS Model: High Frequency Online UPS Rack Mount Star Series RM 1K-10KVA(1Ph in/1Ph out)
Quick View:
1:Rack Mounted 19 Inch and 2U 3U 5U height design
2:Rack UPS with ECO and advanced ECO mode for energy saving
3:N+X parallel redundancy available for 6K and up models
4:Rack Mountable Online UPS with Emergency Power Off Function (EPO)
Key Features:
1:Smart RS232 communication with monitoring software
2:Strong antijamming capability
3:User-friendly and easy-shift LCD display
4:Rack Mounted 19 Inch and 2U 3U 5U height design
5:Programmable power management outlets
6:Intelligent battery charger, durable and worry-saving
7:ECO and advanced ECO mode for energy saving
8:Emergency Power Off Function (EPO)
9:Stable performance for advanced digital circuit system
10:Humanization bypass output, can be adjustable.
11:Optional extension battery pack
12:Rack mount 19"design to save space
13:Network/fax/modem surge protection
14:Transfer time 0ms, no interruption from AC state to DC state
Technical Specification
Rack Mount Star Series RM1K-10K |
| Model | RM1K | RM2K | RM3K | RM1KL | RM2KL | RM3KL | RM6KL | RM10KL |
| Input | Phase | Single Phase with Ground |
| Nominal Voltage | 110/115//120Vac or 220/230/240Vac | 220/230/240Vac |
| Voltage Range | 60-138VAC or 115 ~ 300VAC | 176 ~ 276VAC |
| Frequency Range | 46 ~ 54Hz(default), user adjustable within 40~60Hz | 46 ~ 54Hz |
| Power Factor | 0.97 | 0.98 |
| Connection | IEC320-10A inlet | IEC320-16A inlet | IEC320-10A inlet | IEC320-16A inlet | Terminal Block |
| Output | Phase | Single Phase |
| Voltage | 110/115/120Vac or 220/230/240VAC ± 2% | 110/115/120Vac or 220/230/240VAC± 1% |
| Frequency | 46~54Hz or 50Hz ± 0.2Hz (Line mode) | 46~54Hz (Line mode) |
| 50Hz ± 0.2Hz ( Battery mode) | 50Hz ± 0.05Hz ( Battery mode) |
| Waveform | Pure Sine Wave |
| Power Factor | 0.7/0.8 Optional |
| Overload Capability | 108%~150% for 30 sec., 150% for 300 ms |
105%~130% for 10 min.,
130% for 1 min. |
Current Crest Ratio | 3:1 |
| Connections | IEC320 -10A * 4 |
IEC320-10A and
Terminal Block |
IEC320 -10A * 4 |
IEC320-10A and
Terminal Block |
IEC320-10A * 4 and
Terminal Block |
Bypass | Automatic Transfer | on overload and UPS failure |
| Before UPS Power-on | Default "NO", user adjustable to "YES" | Yes |
| Voltage Range | 80~264VAC (Default), user adjustable within 80~286VAC | 176 ~ 261VAC |
| Transfer Time | 0 ms; less than 4 ms from inverter to bypass and vice versa | Zero |
| LED /LCD indicators |
Load level / Battery level, Battery , Utility Power,
Inverter, Bypass, Overload, Fault |
Audible Alarm | Bypass, On battery mode, Battery low, Overload, Fault |
| Communications | RS-232 Serial Interface |
| Intelligent Slot; |
OPTIONS: WEBPOWER SNMP/WEB card,
AS400 card or WinPower CMC) |
Network Surge Protection | RJ45 I/O port available for network or Fax/Modem |
| Environmental | Operating Temperature | 0 ~ 40°C |
| Operating Humidity | 20 ~ 90% non-condensing |
| Main Unit | Net Weight (Kg) | 16.3 | 10.3 | 11.2 | 9.1 | 11.5 | 12.3 | 18.3 | 20.3 |
| Dimensions (W x D x H) mm | 482 x 420 x 88 (2U) |
482 x 420 x 88 (2U) or
(3U Internal Batteries) |
482 x 420 x 88 (2U) | 482.6 x 600 x 130 (3U) |
| Battery Pack | Type | Internal Batteries | External Battery Pack |
| Nominal DC Voltage | 24/36VDC | 48/72VDC | 72/96VDC | 24/36VDC | 48/72VDC | 72/96VDC | 192/240VDC |
Battery Numbers
& Capacity |
2/3Pcs *12V7.2Ah | 4/6Pcs *12V7.2Ah | 6/8Pcs *12V7.2Ah |
Depending on the capacity of
external battery packs |
Backup Time (Full load) | 5 min | 7min (with 1 BP) | 5 min (with 1 BP) |
|
| Recharge Time | 5hrs to 90% | 5hrs to 90% | 5hrs to 90% |
| Charging Current (Max.) | 1.0A | 1.0A | 1.0A | 8A±1A | 4.2A |
| Charging Voltage | 41.1Vdc±0.6V | 110Vdc±0.4V | 41.1Vdc±0.6V | 110Vdc±0.4V | 274Vdc±1%V |
| Net Weight (Kg) | --- | 25.3 | 25.3 | --- | --- | --- | --- |
| Dimensions (W x D x H) mm | --- | 482 x 420 x88 (2U) | 482 x 420 x88 (2U) | --- | --- | --- | --- |
