3.0mm Fiber Optic OM2 Multimode Cable Assembly FDDI to FDDI Connector

Name: 3.0mm Fiber Optic OM2 Multimode Cable Assembly FDDI to FDDI Connector
Brand: all-electronics-online.com
SKU: 691528761
Availability: InStock
Rating: 4.4 (73 reviews)

Price:	US $ 20-30/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	0321
Color:	Orange
Fiber Type:	Multimode
Polish Type:	APC
Connector Type:	FDDI
Cable Diameter:	3.0mm
Cable Weight:	0.5g
Fiber Count:	2
Application:	Probe
Type:	Multi-mode Fiber
Certification:	CCC
Connection Structure:	FDDI
Sheath Material:	LSZH

Product Description

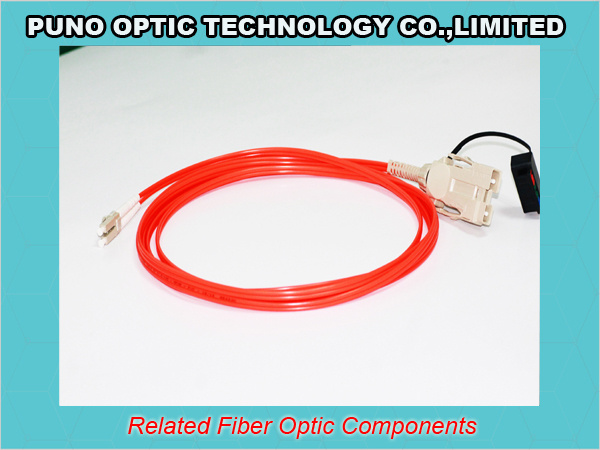

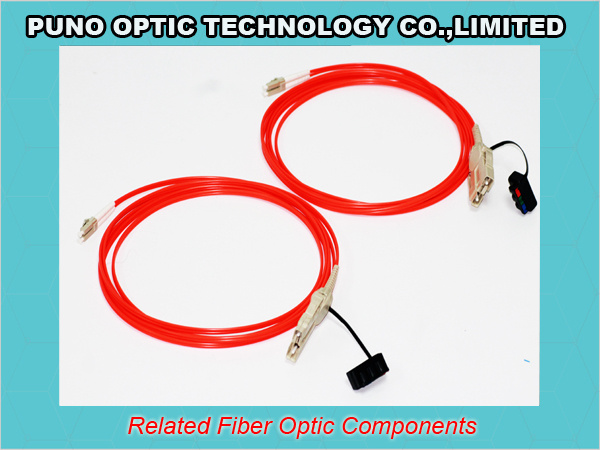

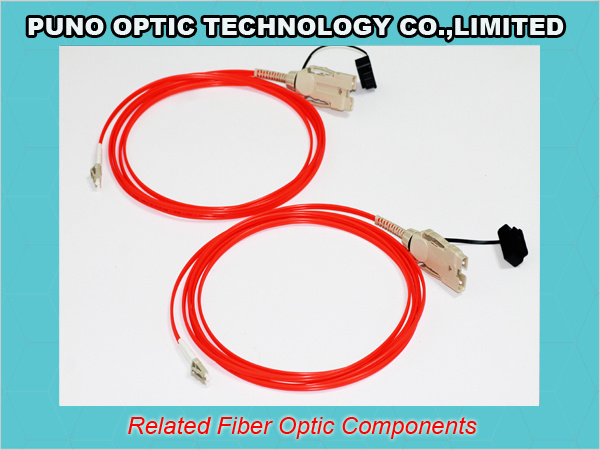

3.0mm Fiber Optic OM2 Multimode Cable Assembly FDDI to FDDI Connector

PUNO duplex patch leads are manufactured from the highest quality G.652.D optical fibre, terminated with ceramic ferrule connectors of various types. The singlemode are compatible with OS1 & OS2 optical fibre channels. Cable preparation, termination and testing is carried out to strictly managed procedures in an PUNO approved manufacturing facility. Applications include the connections between optical patching panels and network or server equipment and directly from devices to the local or wide area network or physical security equipment. Each cable has strain relief boots to prolong and maintain performance levels of the assembly, transmit and receive 'legs' of each duplex cable are identified by means of ring type cable marker fixed to each end the assembly. A short distance from these identification rings heat shrink is applied to maintain an easy to manage bonded two fibre cable, finally a label containing a unique batch number is fixed to the centre of cable for quality and traceability purposes.

Used / Application

High bit rate data transmission;
Telecommunication networks;
Data processing networks;
Metro applications;
Military, medical and industrial;
Active device termination;
CATV system;
Active device terminations;
FTTx (including FTTB, FTTC, FTTD, FTTH).

Features & Benifits

RoHS Compliant;
Standard & custom configurations;
Meets Telecordia-GR-326-CORE standards;
Easy installation;
Environmentally stable;
Low insertion loss, high return loss;
Ultra low back reflection;
For 3.0mm, 2.4mm, 2.0mm jacket or 900um buffer;
Single mode fiber: ITU - T G. 652D;
Multi mode fiber: ITU - T G. 651;
Fiber Min. Bending radius: 10D (Static).

Technical Parameter

Fiber Type	MM
Connector Type	2.0mm/3.0mm Duplex LC
Insertion Loss (Typical)	≤0.2dB
Insertion Loss (Max)	≤0.3dB
Return Loss (Typical)	PC ≥50dB	UPC ≥55dB
Mating Durability	≤0.2dB
Durability	≥1000 times
Temperature Stability	≤0.2dB Max.Increase
Working Temperature	- 20ºC~+ 70ºC
Storage Temperature	- 40ºC~+ 85ºC
Outer Sheath	PVC / ONFP / OFNR

Connector	Polish Type	Optical Properties				Reference Standard
		SM		MM
		IL (dB)	RL (dB)	IL (dB)	RL (dB)	YD/T 1272.3-2005;IEC 60874-19-1 IEC 60874-14-5;IEC 60874-14-10
SC	UPC	≤0.35	≥50	≤0.20	-
	APC		≥60	-	-
Operating Temperature(ºC)		-40ºC~+80ºC
Storage Temperature(ºC)		-40ºC~+85ºC
Fireproof standard		IEC 60332-3
RoHs 2002/95/EC directive
