3000W 200-750VDC on-Board DC/DC Converter for Electric Car

Name: 3000W 200-750VDC on-Board DC/DC Converter for Electric Car
Brand: all-electronics-online.com
SKU: 733204382
Availability: InStock
Rating: 4.5 (80 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPEV-DD302M-H-N-1A
Efficiency:	≥96%
Output Voltage:	27VDC
Usage:	Electric Car/Bicycle/Motorcyle/Scooter
Output Type:	Single
Warranty:	2 Years
Certification:	ISO
Output Power:	3000W
Input Voltage:	200-750VAC
Brand:	Goldpower

Product Description

3000W 200-750Vdc on-Board DC/DC converter for electric car is mainly used for Electric Vehicles

Features

1. Phase-shifted full bridge soft-switching design, efficiency up to 97%
2. Digital interleaved boost design, small current ripple
3. Modularized output converter part, easy for parallel expansion

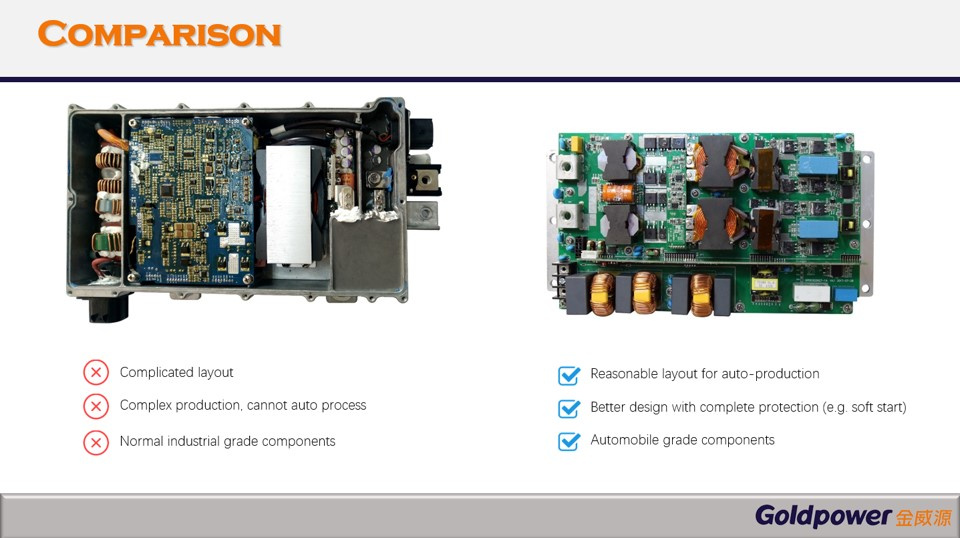

4. SMT components and production process, stable the quality
5. HV aluminum substrate and optimized layout, higher the thermal conductivity
6. Anti-reverse connection, failure detection and isolation

Applications:

New energy carmakers
New energy vehicle service providers
New energy vehicle aftermarket companies

Specification:

Model	GPEV-DD302M-H-N-1A
Rated output power	3KW
Input voltage	200~750Vdc
Output voltage	27Vdc
Power factor	≥0.995
Stability voltage precision	≤±1%
Full load efficiency	96%
Ripple & Noise	≤300mV
Load regualtion	±1%
Boot time	<3s
Controlling method	CAN controlling/EN controlling
Operating temperature	-40~+85ºC
Storage temperature	-40~+105ºC
Cooling method	Fan cooling or Hydrocooling
Acoustic Noise	≤55dB
MTBF	≥400,000H
Waterproof & dustproof	IP00

Protection	Input over/ under voltage, output over voltage,short circuit,over temperature, anti-reverse.
Application	Low speed vehicles
Dimensions	276mm158.5mm55mm
Weight	≤2.5KG

About us:

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
