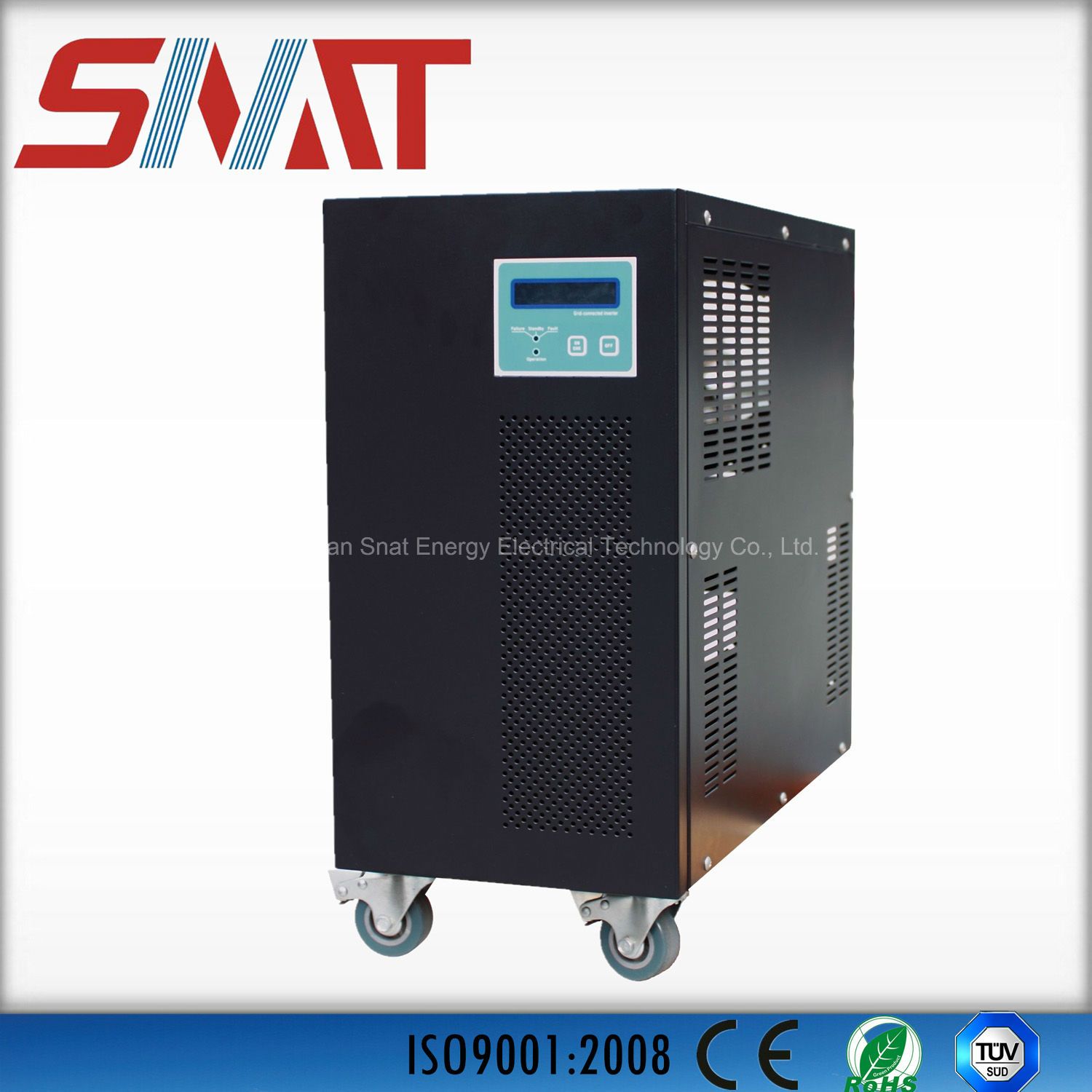

3000W/5000W Pure Sine Wave Inverter for Power System.

Prod Model:	FI-3050
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Snat
OEM/ODM:	Provide
Sample Order:	Accept
Accessory:	Controller, Inverter, Battery.Power System
Company:	Manufacture
Phase:	Single
Power Source:	Solar Power
Application:	School, Streets, Pasturing Areas, etc

Product Description

Product overview
The product applies to different type of loads because of its full digital design and real pure sine wave output, with power-frequency and design and highly stable output voltage and frequency, it can operate continuously for a long time, thus it can avoids the disadvantages of direct use of the mains supply, such as interruption of power supply, voltage instability, noise, and lightning attacks and the disadvantage of short power supply time of small inverter supplies, guaranteeing continuous and reliable operation for electrical equipment, sine wave inverter supplier are the best guarantee for the safe and reliable operation of systems.
The product is now widely used in china Telecom, china Mobile, china Unicom, aerospace railways financial management, office automation industrial automatic control, medical health, military scientific research, etc.
Main features
Excellent performance because of an MCU intelligent control technology
a wide range of applicable loads because of power-frequency transformer design and pure sine wave AC output
Personalized digital communication via an intelligent RS232 interface
A wide range, high accuracy, and full automatic voltage stabilization
Overall protection functions (overload protection, short circuit protection, overvoltage protection, under voltage protection and over temperature protection.)
Simple LEDs and a LCD for visualization of operation status of the equipment
Use with generators because of high adaptability to power grids
A longer battery life because of intelligent battery management and overcharge protection


MODEL -FIH	3kw	5KW
Rated power	3000W	5000W
DC voltage	48VDS /96VDS
Input voltage	160-265VAC
Input frequency	45--65 Hz
Output voltage	220VAC ±5%
Output frequency	50Hz±1%
Switching time	5ms
Charge Current	Max15A
Inverter output protection	input overvoltage/under voltage protection, DC under voltage protection, peak surge protection, over; load protection; 100-120%, 30s ;>120%, 100ms; 150%, 50ms; output short circuit<150μs
Noise	<45dB
Ambient temperature for operation	0-40ºC
ambient temperature for storage	-15------ +15
Relative humidity for operation/storage	0-90% (no condensation)
Altitude for operation	0-3000m
Attitude for storage	0-15000m
Net weight/gross weight	32/40	43.6/51.6

Warranty:
Quality warranty for 1 year;Parts will be shipped for free during warranty period.

Delivery time:
Stick to contract.

Concurrently engaged in relative solar power system products such as solar panel, gel battery, sealed lead acid battery, Combiner box, etc

Accept special design requirements.
