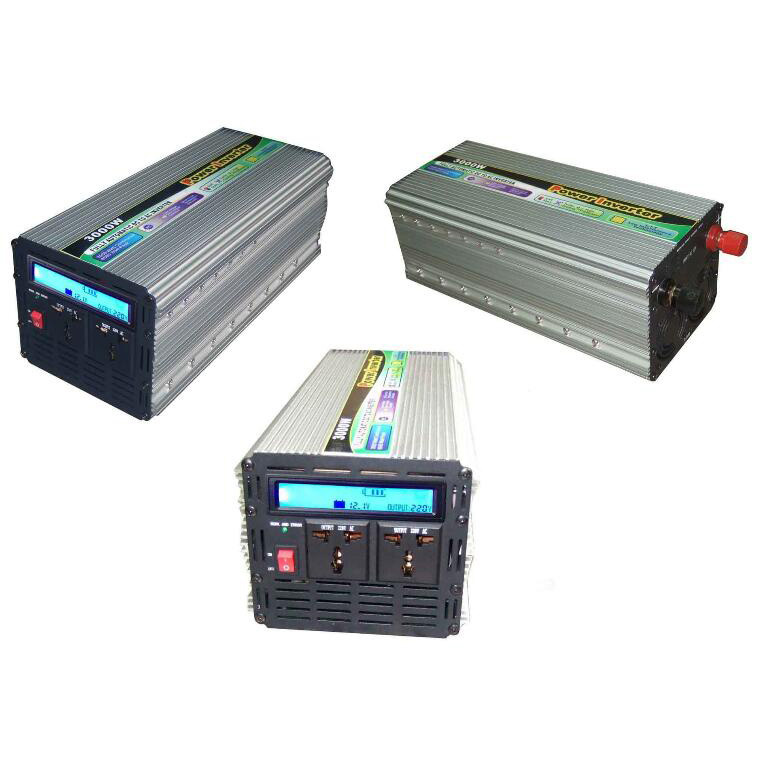

3000W DC to AC Modified Sine Wave Power Inverters with UPS Charger

Name: 3000W DC to AC Modified Sine Wave Power Inverters with UPS Charger
Brand: all-electronics-online.com
SKU: 786314255
Availability: InStock
Rating: 4.8 (86 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WSP-3000MSW+UPS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	320150125mm
Phase:	Single
Power Source:	Electric Power
Application:	Electric Tools
Brand:	OEM

Product Description

3000W DC to AC Modified Sine Wave Power Inverters with UPS Charger
3000W continuous power inverter 6000 watt peak.
Over temperature protection
Low battery alarm
Over voltage protection
Overload protection
Low battery shut down
UPS and battery charger

1. / Output continuous power	3000W
2. / Output peak power	6000W
3.DC / Input DC voltage	12V			24V
4. / Working voltage	11-15V			21-29V
5. / Low-voltage protection	9 -10.5V			18.5-20.5V
6. / Lack-voltage alarm	9.5 -11V			19.5 -21V
7. / Over-voltage protection	≥15V			≥29V
8. / Fuse	50A X 7			25A X 7
9. / Non-load current	≤0.8A			≤0.8A
10. / Convert efficiency	≥90%
11. / Overload protection	3000V - 3600V
12. / Short circuit protection	Have
13. / Work temperature	-10ºC -- +50ºC
14. / Temperature protection	+60ºC -- +70ºC
15. / Output wave	/ Modified sine wave
16.AC / AC Output voltage	110V	117V	220V		240V
17. / Output frequency	60Hz	60Hz	50Hz		50Hz

AC / AC input voltage	110V	220V
AC / AC input frequency	50HZ/60HZ	50HZ/60HZ
AC / AC working voltage	85V-130V	170V-250V
AC / AC input low voltage protection	≤75V	≤150V
AC / AC input high voltage protection	≥130V	≥250V
AC / AC input Fuse	20A X 2	20A
/ Charge current	Maximal 25A
/ Charge voltage	14.5V-16V	29V-32V
/ DC to AC inverting household electricity supply time	≤0.5S
/ household electricity supply inverting DC to AC time	≤1S
/ DC to AC inverting household electricity supply requirement	AC / AC input voltage under normal working scope
/ household electricity supply inverting DC to AC requirement	,AC,AC / Not household electricity supply, AC input low voltage protection, AC input high voltage protection

Packing:
1, Packing                          Paper Box
2, PCS/CTN                           2PCS
3, Measurement                  320*150*125mm
4, Carton dimension         410*230*350mm
5, Unit weight                    6.0kg ± 0.15kg
6, Net weight (N.W)                  12kg
7, Gross weight (G.W)                12.7kg

Our company supplies High frequency power inverter, Uninterrupter power supply, Solar inverter&controller, Industrial switch power supply, LED switch power supply, Power adapter ect. Which apply to solar power, wind power, electric power, lighting appliance ect. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
