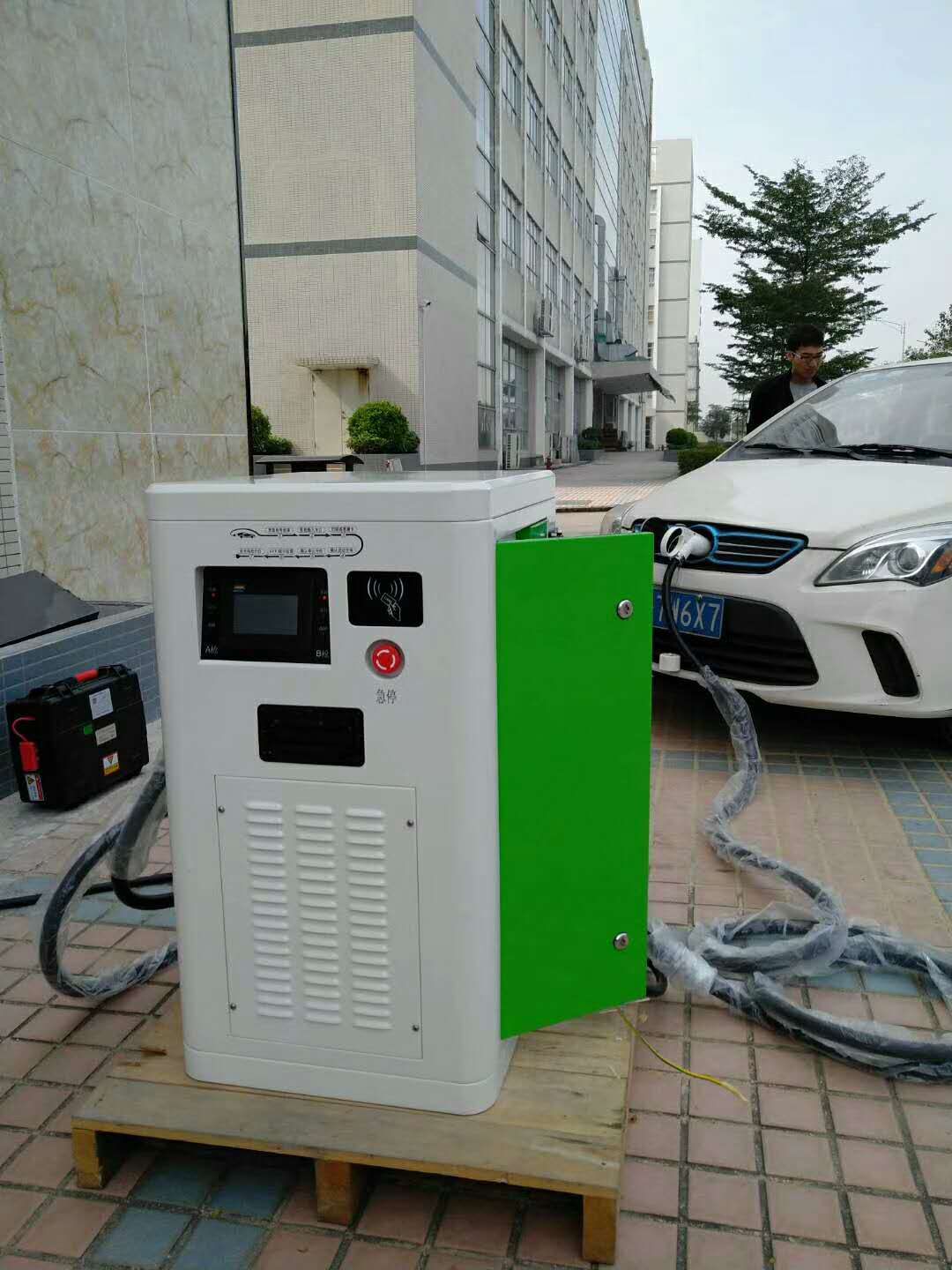

30kw Double Gun DC Quick Charger for Electric Car
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GPEV30-AA750-S1B |
| Input Mode: |
3-Phase, 5 Wire(3pH+N+E) |
| Input Operating Voltage Range: |
295~437VAC |
| Max. Input Voltage: |
560VAC |
| Max. Input Current: |
60A |
| Max. Input Power: |
32kVA |
| Power Factor: |
0.98 |
| Rated Output Voltage: |
750VDC |
| Rated Output Current: |
40A |
| Rated Output Power: |
30kw |
| Operating Temp. Range: |
-20~50ºC |
Product Description
Features- Goldpower 30KW portable DC charger designed with double gun, the maximum power is 30KW.
- Using high-performance ARM chip control, 5-inch true color LCD touch screen, easy to achieve man-machine information exchange
- With perfect protective function: input over/under voltage protection, output over current protection, output over voltage protection, output short circuit protection, over temperature protection, battery anti-reverse protection, insulation detection protection, emergency stop protection.
- The charging rectifier module adopts full bridge soft switch technology, the efficiency up to 95% or more.
- The charging rectifier module adopts active power factor compensation technology, the value up to 0.98.
- Perfect AC side lightning protection design, to adapt to thunderstorm areas.
- Ultra-low radiation, safe and reliable. Pressure level, insulation class and EMC of the charger comply to relative requirements as per NB/T 33001-2010,and part of function designed as per "Typical design of EVSE"
- The design of dustproof and waterproof up to level IP54 to meet indoor and outdoor requirements.To prevent rain directly onto the equipment, the roof needs to be installed outdoor.
System Configuration
GPEV30-750-S1 charger consists of outdoor cabinet, HMI, power distribution unit, monitoring module and charging rectifier module.Optional
Configuration | Rectifier module | Optional number | Distribution
| Monitoring system | Remark |
configuration
| GPR75020A | 2pcs | AC input:
3-phase 5wire,63A/4P air switch;
Anti--thunder:3-phase C pole
DC output:
the gun mode output maximum
output current is 40A(DC+,DC-)
EV auxiliary power supply:
12V10A/24V5A optional(A+,A-) | Monitoring system | See the module
specifications
for more detailed
information
|
Specifications| Ambient |
| Parameter | Min. | Typ. | Max. | Unit | Remark |
| Operating temp. range | -20 | 25 | 50 | °C | Certificated within this range |
Extreme operating
temp. range | -40 | 25 | 55 | °C | -40°C ~-20°can be loaded with start,
extended temperature:50 -55°C,
The module outputs linearly at 4% / ° C |
| Relative humidity | 5 | | 95 | % | No condensation on the surface |
| Altitude | 0 | | 2000 | m | |
| Input |
| Parameter | Min. | Typ. | Max. | Unit | Remark |
| Input mode | 3-Phase, 5 Wire (3Ph+N+E) | Note: the charger rectifier module without midcourt line |
| Nominal input voltage range | 323 | 380 | 437 | Vac | Nominal voltage, certified within this voltage range |
| Input operating voltage range | 295 | 380 | 437 | Vac | The input voltage 315-265Vac is linearly reduced from 15KW to 5KW by 2% / V |
| Max. input voltage | | | 560 | Vac | The module could not work but can't be damaged under this input voltage |
| Max. input current | | | 60 | A | Low voltage full load ,each phase |
| Max. input power | | | 32 | KVA | Input 323Vac,output full load. |
Soft start time
| 5 | | 15 | S | The nominal input voltage range rises to the set value of the output voltage. |
Power factor
| >0.98 | Rated input, full load output |
| >0.97 | Rated input, half load output |
Input current harmonic
| THD<5% | Rated input, full load output |
| THD<10% | Rated input, half load output |
| Grounding method | Protective ground to the power supply case |
| Output |
| Parameter | Min. | Typ. | Max. | Unit | Remark |
| Rated output voltage | 750 | Vdc | |
| Rated output voltage range | 300 | | 750 | Vdc | Certificated within this output voltage range |
| Rated output current | 2 | | 40 | A | |
| Rated output power | | | 30 | KW | |
| Stabilized voltage precision | -0.5 | | +0.5 | % | |
| Ripple effective value | | | 1 | % | |
| Dynamic response time | | | 200 | us | |
Dynamic response
overshoot | -0.5 | | +0.5 | % | |
| Efficiency | | | 95.8 | % | |
| Noise | | | 65 | dB(A) | |
| Current-sharing | -5 | | 5 | % | Tested when the output current more than 50% |
| Cooling | Forced air cooling |
| Protection |
| Parameter | Min. | Typ. | Max. | Unit | Remark |
Input over current
protection | With input over current protection function, the input circuit breaker trip during protection. |
Input over voltage
protection | 455 | | 465 | V | |
Input over voltage
Protection recovery | 445 | | 455 | V | |
Input under voltage
protection | 250 | | 264 | V | |
Input under voltage
protection recovery | 280 | | 305 | V | |
Module over temp.
protection | | 56 | | °C | Auto recovery after the module temperature is reduced, |
Output over voltage
protection | 765 | | 785 | V | Overvoltage lock, the module re-unlocked |
Output over current
protection | | | 44 | A | Over current, or constant current |
Output short circuit
protection | With short circuit protection function |
| Fan fault protection | Any fan failure corresponding to the power module no output. |
Battery anti-reverse
protection | When the output charging battery is reversed, the system has no output |
| Insulation detection | With insulation detection protection function. |
System abnormal
protection | During the charging process, in an emergency (such as starting the emergency stop switch, communication failure with the electric vehicle battery management system, control guidance failure, etc.), the charger should immediately disconnect the output contactor, and through the discharge circuit within 1S The charge interface voltage drops below 60VDC. |
| Mechanical |
| Dimension(W×H×D) | 400 mm×750 mm×650mm |
| Weight | ≤60Kg(including module) |
