30W 36W Dimmable 1-10V LED Power Supply

30W 36W Dimmable 1-10V LED Power Supply
Price: US $ 5-6/Piece
Min Order: 5/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: HC-36LV
Product Name: 1-10V LED Power Supply
Cover Material: Plastic
Color: White
IP Degree: IP44
Grade: Class 2
Dimming Manner: 0-10V/1-10V Dimming
Output: Constant Current Version
Protection: Short Circuit/Over Load/Over Voltage
Efficiency: 85%
Watt: 30-36W
Output Type: Single
Input Voltage: 220V
Connection Mode: Series Switching Power Supply
Starting Mode: Separate-excited Switching Power Supply
Power Supplying System: Terminal Power Distribution Equipment
Certification: TUV SAA
Warranty: 3years
Output Power: 30-36W
Brand: Sunred

Product Description

30w 36w dimmable 1-10v led power supply
0-10V/1-10V dimming led driver Parameter can be customized
Input voltage100-130vac/200-240vac
Ac frequency48-62HZ
Output current500ma/700ma/900ma
Output voltage60-72/40-55v/30-40v
Size140*47*29mm

Features of the 0-10v led driver:
-big wiring terminal,screw assembling
-suitable for LED home light,commercial Lighting and other application
-safety protective device
-simple installation
-conform to the world lighting equipment safety standards
-protection class II
-three years warranty

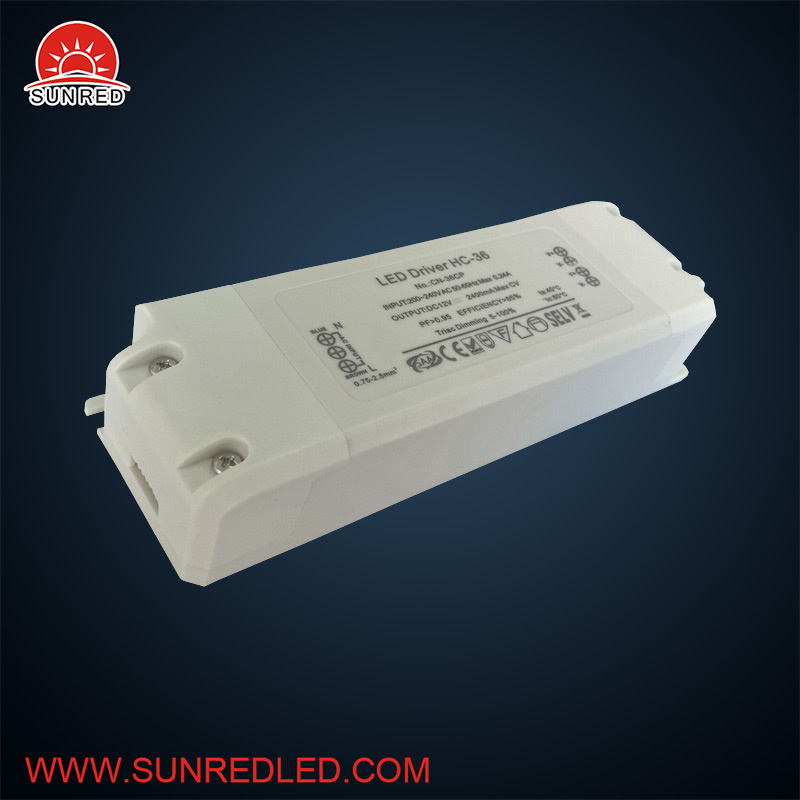

 More pictures of the 0-10v dimmable led driver

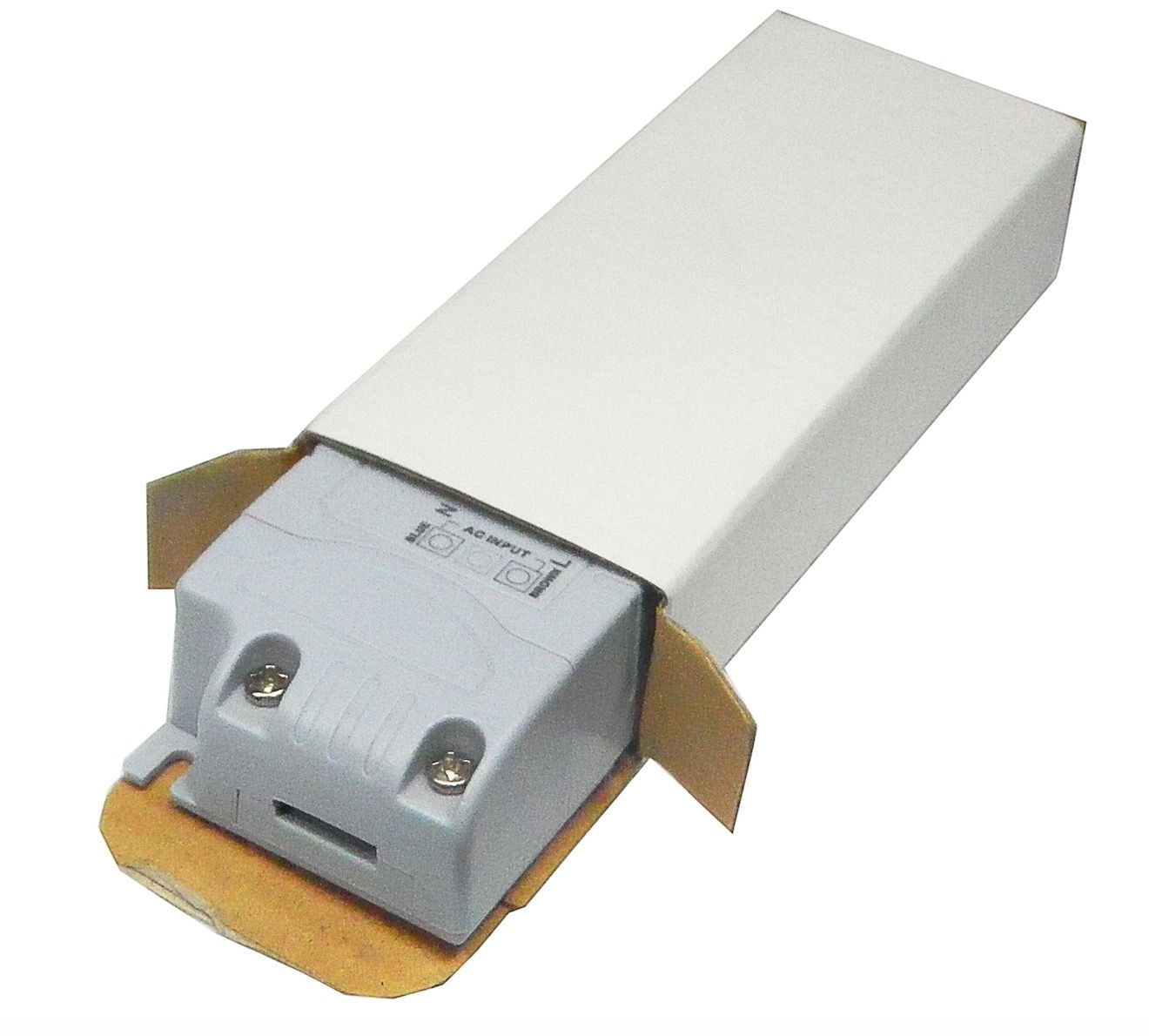

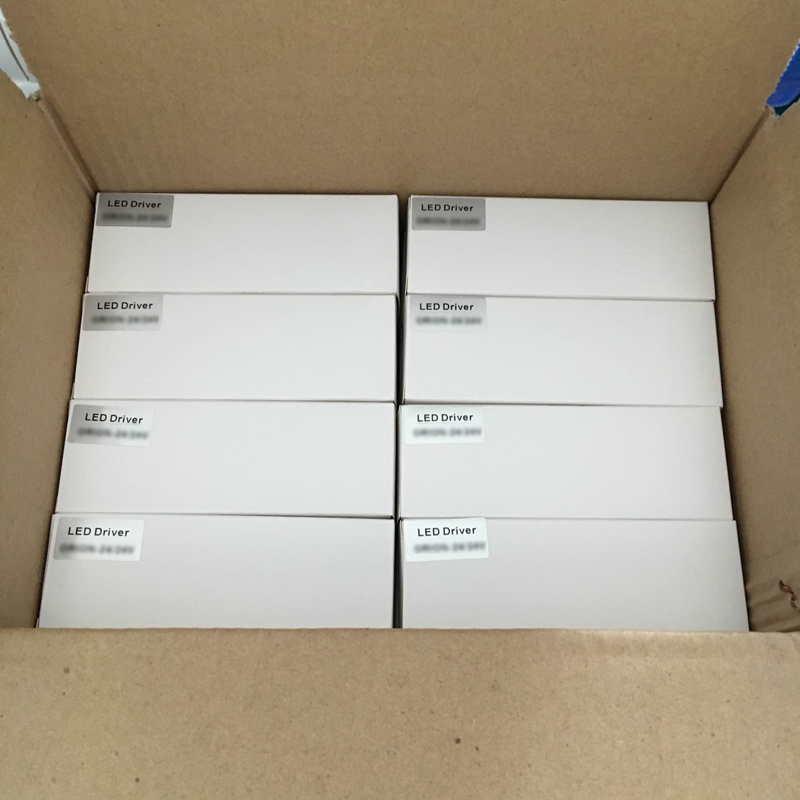

Packing information:
white box packing :80pcs/carton , Grosss weight :14kg, size: 38x27x27cm

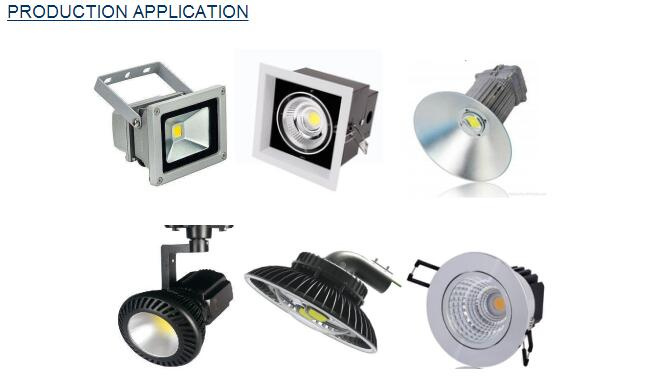

Application: The 0-10v dimmable led drivers widely used on led spot light, downlight, panel light,
led street light, led highbay light etc.
18-36W SAA Approved Dali LED Driver 800mA 1200mA 1500mA




Products we can offer:
DALI DIMMABLE 5W TO 300W led power supply
TRIAC DIMMABLE 5W TO 200W led driver
0-10V DIMMABLE 5W TO 240V led transformer
Waterproof led power supplies up to 400w
SUNRED LED Co., Limited!

We are LED driver manufacturer and LED car lighting trader located in Shenzhen, China

Which established in 2017.

Our main products are

0-10V/PWM dimmable drivers.

TRIAC dimmable LED driver,

DALI dimmable LED driver

IP67 Waterproof LED power supply

Low voltage LED transformer

LED car lighting

We have many good partners and suppliers, all of our products are with certificates,

CE EMC LVD TUV for Europ and SAA for Australia, For America market we have ETL UL certificates.

Also we can offer you good price, acceptable lead time and excellent after sale service.

Sunred LED, this young and flexible company will keep the innovation and honest in heart. To built a long good and mutual business relationship with you. Always fighting to prop the hope of green and lighten the future of the world.
