| Prod Model: |
PL-SL30W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Color: |
Black, Grey |
| Beam Angle: |
120 |
| PF: |
0.95 |
| CRI: |
75 |
| Lifetime: |
50000hrs |
| Warranty: |
3 Years |
| Type: |
LED Sensor Light |
| Theory: |
Infrared Control |
| Light Source: |
LED |
| Lamp Type: |
Flood light |
| Emitting Color: |
White |
| Material: |
Metal |
| Appliances: |
Garden |
| Lamp Power: |
30W~40W |
| Waterproof: |
Waterproof |
| Certification: |
RoHS |
Product Description

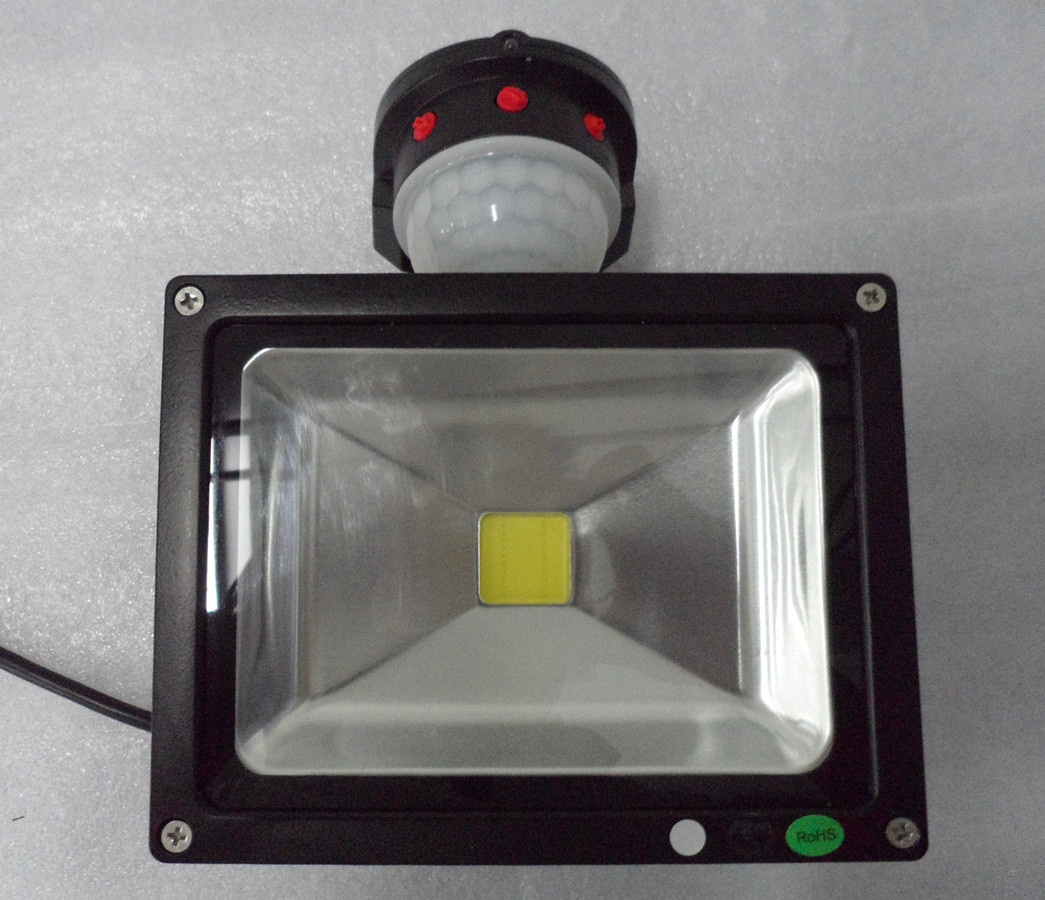

30W IP65 LED lamp motion sensor / LED motion sensor flood lights
Item No.: PL-SL30W
Specifications:
Dimension: L225mm × W185mm x H135mm
Power: 30 W
Housing Material: Aluminum Alloy (White, Silver, Black Color)
LED Type: COB High power LED
Cover: Glass
LED Qty: 1 PCS
Colour Temperature: 3000-7000K
Voltage: AC85-265V
Beam Angle: 120°
Time-Delay: 10-900 second
Detection Distance: 2-11m
Operation Temperature: -20-40
Luminous Flux: 2900 -3000LM
Operation Humidity: 10% - 90%
Protection Class: IP65
Lifespan: 50, 000 Hrs
Description:
1. It can identify day and night automatically.
2. Detection distance: 2-11m
3. Luminous Flux; 5000-5100 Lm
Keys on the sensor:
1) LUX is to adjust whether lights work during the day or evening.
A: When transferred to the sun position (on the right), the sensor works full time;
B: When transferred to the moon position(on the left), the sensor does not work during the day and work until in the evening.
2) TIME is to adjust the sensor delay time(from 5seconds to 5 minutes). Delay time is the lights working time after people leave.
When pointed to the left, it means 5 seconds. When pointed to the right, it means 5 minutes.
3) SENS is to adjust the sensitivity of the sensor. Normally not need to adjust.
Introduction:
The product is an energy-saving automatic switch, it adopts integrated circuit and precise detecting components. It can be on when one comes and will off automatically after leaves.
1. It can identify day and night automatically. Its performance is very stable. Can identify day and night automatically. Ambient-light can be adjusted. So it will work at night and stop in the daytime. The consumer can adjust it freely.
2. Detection distance can be adjusted according to the local place.
3. The time delay can be adjusted vary to the place.
4. The light-time can be added automatically. When human moves in the detection fields when the lamp is lighting, it can compute time once more and delay automatically the light-time after the light-time detect the signals every time.
Applications:
Widely used in factory, gymnasium, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting project etc.
Competitive Advantage:
1. Imported original Cree & Bridgelux & Epistar chip, superior light source
2. OEM & ODM welcome, independent R&D ability, patent design.
3. Fast delivery, 3-15 workdays depends on order quantity after payment confirmed
4. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan
| Item no. | Voltage | Color | Size | Lumen |
| PL-SL10W | 110-245V | 3000-7000K | 115*85*90mm | 1000lm |
| PL-SL-20W | 110-245V | 3000-7000K | 180*140*110mm | 2000lm |
| PL-SL-30W | 110-245V | 3000-7000K | 225*185*135mm | 3000lm |
| PL-SL-50W | 110-245V | 3000-7000K | 290*240*150mm | 5000lm |
