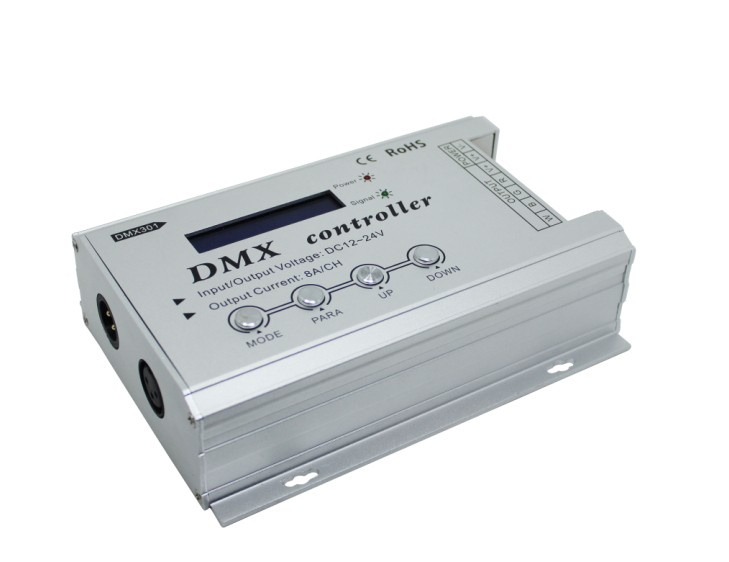

Low-Voltage DMX Controller with LCD Display

Name: Low-Voltage DMX Controller with LCD Display
Brand: all-electronics-online.com
SKU: 701550755
Availability: InStock
Rating: 4.6 (30 reviews)

Price:	Negotiable/Piece
Trade Terms:	CFR,CIF,EXW
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PL-DMX301
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	LED Products
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Transmission Distance:	<50m
Voltage:	DC12V/24V
Material:	a Luminum

Product Description

Summarization
Low-voltage DMX controller with LCD display is a kind of controller with LCD digital display interface, used for control the RGB color change of 4 line 3 channels(common anode) LED lamps and brightness change of one channel, up to 34kinds of change programs to choose, at the same time can accept DMX-512 international standard digital control. Controller can be stand-alone operation, automatically online, accept standard DMX512 console control signal etc. method to work. According to the customer's actual demand, can achieve jumpy changing, gradual changing, stroboscopic such change effect.

Technical Parameters
Working temperature: -20-60ºC
Power supply voltage: DC 12~24V
Output voltage: DC 12~24V
Output connect way: common anode 4 channels
External dimension: L203ΧW134ΧH50 mm
Packing size: L255ΧW155ΧH60 mm
Net weight: 0.59kg
Gross weight: 0.75kg
Static power consumption: <3.96W
Maximum output current: 8A/each channel
Working frequence: 300Hz

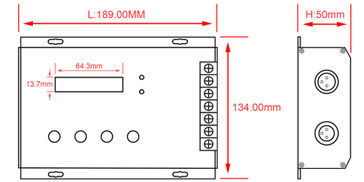

External Dimension

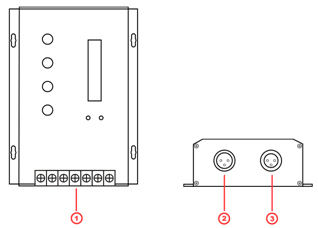

Interface instruction:

1.fence type terminal    2.XLR male port(input)    3.XLR female port(input)

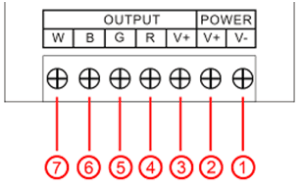

Fence type terminal with cover

1.Power supply negative pole
2.Power supply positive pole
3.Load output common positive pole
4.Load red output pole
5.Load green output pole
6.Load blue output pole

DMX XLR interface

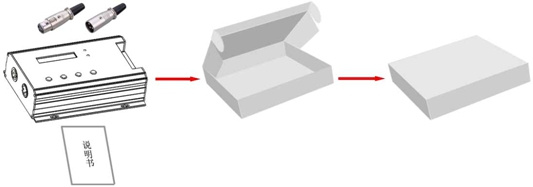

Product packing schematic diagram

Typical Applications

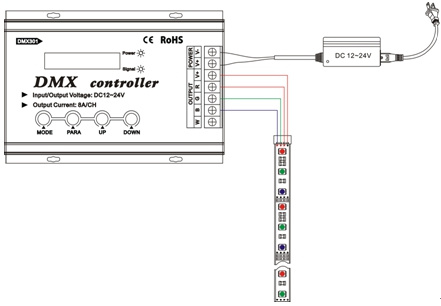

Typical application 1---do not have DMX function:
