High-Voltage DMX Controller with LCD Display

Name: High-Voltage DMX Controller with LCD Display
Brand: all-electronics-online.com
SKU: 768603515
Availability: InStock
Rating: 4.9 (137 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PL-DMX300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Carton Size(Cm):412620:	L203xw134xh50mm
Waterproof IP67:	OEM Is Acceptable
Application:	LED Products
Signal Transmission:	RF Remote Control
Type:	Joystick
Certification:	CE
Transmission Distance:	<50m
Material:	Plastic
Voltage:	110V/220V

Product Description

Product Specification

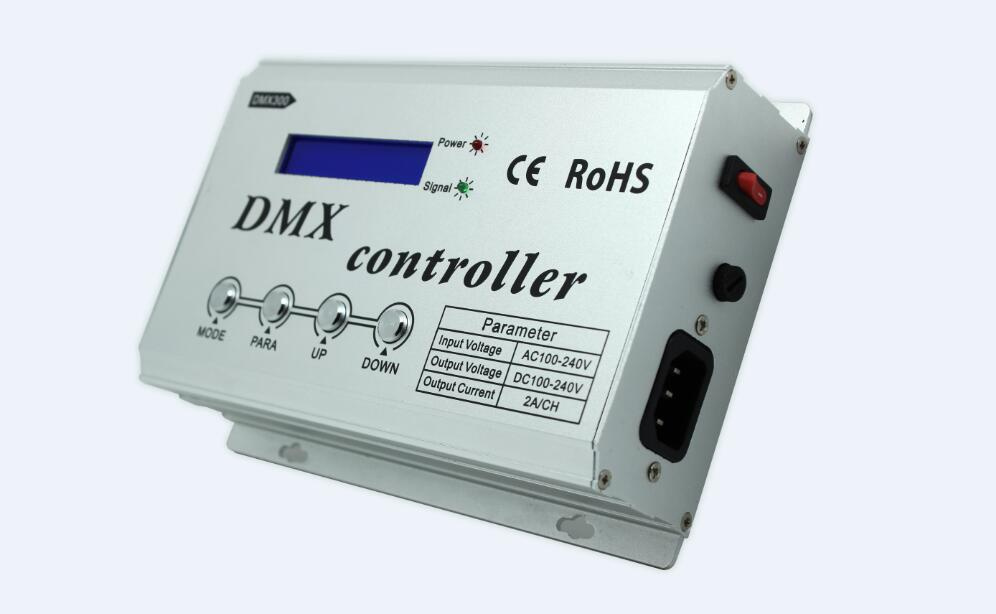

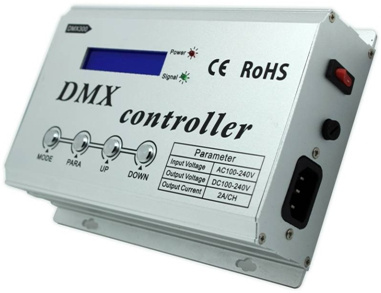

Name: High-voltage DMX controller with LCD display

Model: DMX300

I. Summarization
High-voltage DMX controller with LCD display is a kind of controller with LCD digital display interface, used for control the RGB color change of 4 line 3 channels(common anode) LED lamps, up to 34kinds of change programs to choose, at the same time can accept DMX-512 international standard digital control. Controller can be stand-alone operation, automatically online, accept standard DMX512 console control signal etc. method to work. According to the customer's actual demand, can achieve jumpy changing, gradual changing, stroboscopic such change effect.
II. Technical Parameters
Working temperature: -20-60ºC
Power supply voltage: AC 100~240V 50/60HZ
Output voltage: DC 100~240V
Output connect way: common anode 4 line 3 channels
External dimension: L203ΧW134ΧH50 mm
Packing size: L310ΧW170ΧH60 mm
Net weight: 0.77kg
Gross weight: 1.22kg
Static power consumption: <3.96W
Maximum output current: 3*2A
Dimming frequence: 800Hz
Maximum output power: 660W(input voltage 110V), 1320W(input voltage 220V)

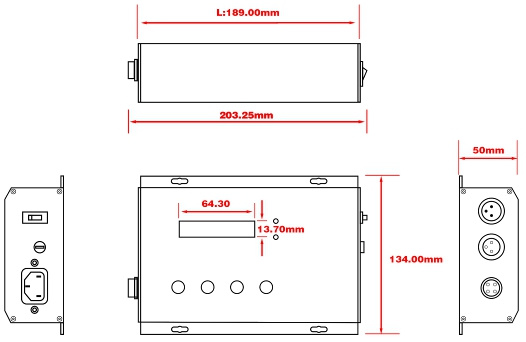

III. External Dimension

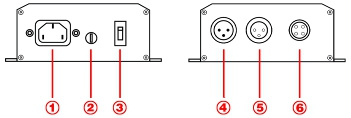

Interface instruction:

1.power supply interface: input AC100~240V
2.Insurance block: when short circuit, can protect the whole circuit
3.Switch: control whole controller power on/off
4.5.DMX512 signal input/output interface: interface sequence and detailed see below picture

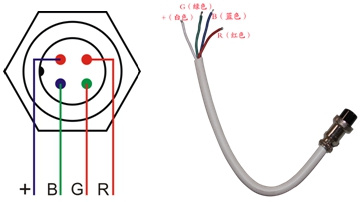

6.Load output interface: load output, interface detail instruction see below picture.

+--Load common positive pole
R--Load red output pole
G--Load green output pole
B--Load blue output pole

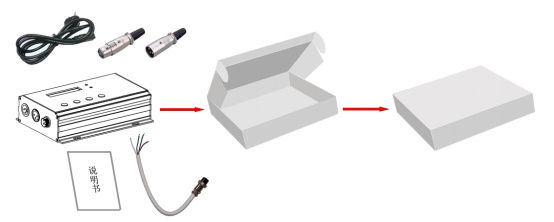

Product packing schematic diagram
