3300W 200V~420V on-Board Lithium Battery Charger

Name: 3300W 200V~420V on-Board Lithium Battery Charger
Brand: all-electronics-online.com
SKU: 818066745
Availability: InStock
Rating: 4.6 (146 reviews)

Price:	US $ 265-295/Piece
Min Order:	300/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD3300-EVCS02-100
Output Power:	3300W
Color:	Black
Warranty:	5 Years or 100,000 Km
Type:	Lithium Ion Battery Charger
Charging Type:	Electric Charger
Principle:	PWM

Product Description

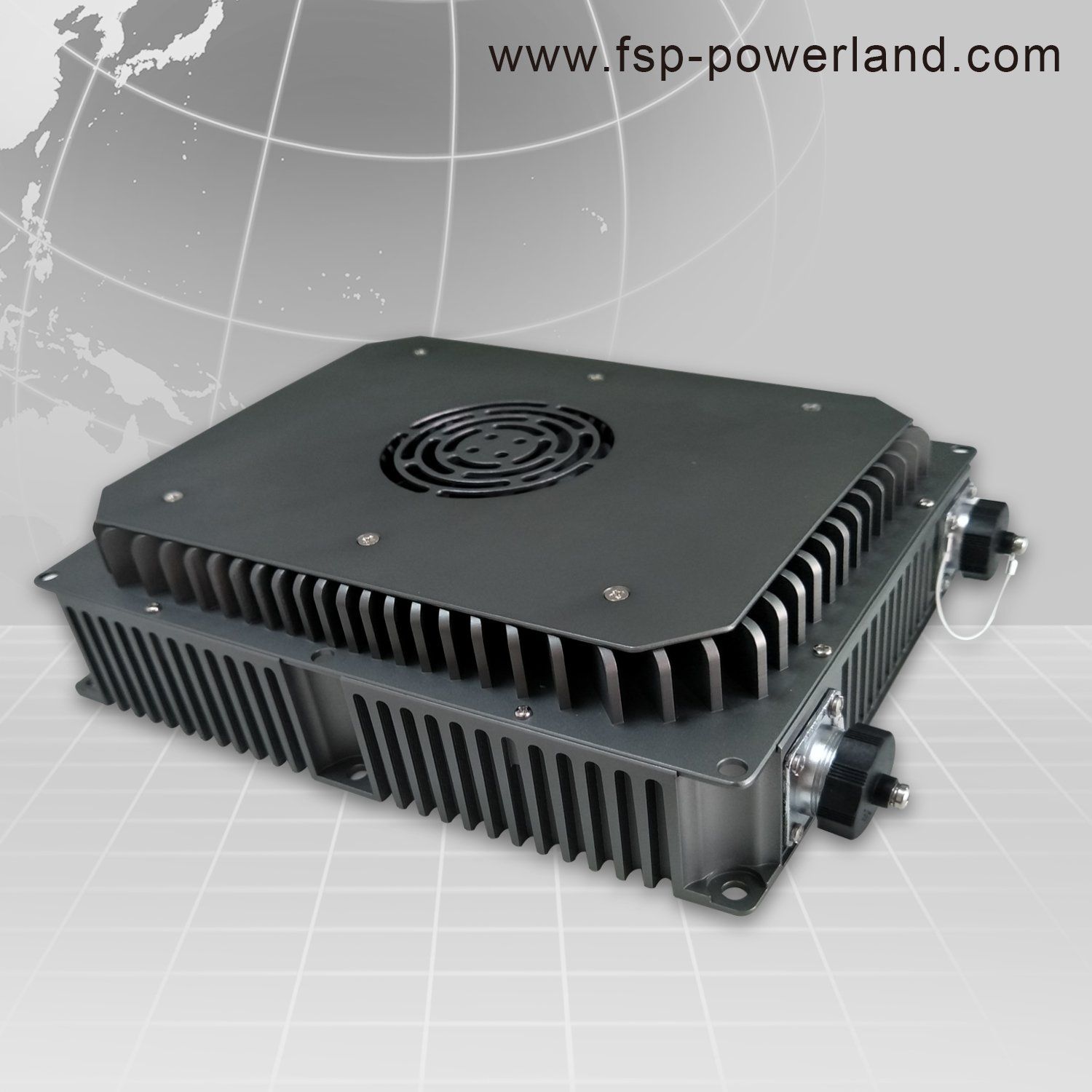

3300W 200V~420V On-Board Lithium Battery Charger

Powerland's 3300W Lithium battery chargers are designed with ultra-high efficiency, as well as full metal case enclosure. The excellent heat dissipation provides the on-board standard chargers ultra high reliability and super long life time. This series of chargers offer solid power conversions for applications such as e-vehicles, e-bus, e-boat, etc.

Features
Universal AC Input :90~264 Vac
Output Power:3300W

Ultra-High Reliable On-Board Design

Compatible with Water Cooling and Air Cooling

Efficiency Up to 95%
All-around Protections:OVP,OCP,SCP,OTP,UVLO
Low Temperature Start Up -40 ºC
High Temperature Full Load Operation:60 ºC

IP66 Ingress Grade

Warranty: 5 Years or 100,000 km

Model Specifications

Model Number	Output Power	Output Voltage	Output Current	Output Current Range
PLD3300-EVCS02-100	3300W	200~420V	10A	0~10A

Specifications

Model	PLD3300-EVCS02-100
Output Voltage	200V~420V
Output Current	10A
Max. Output Voltage (Float Charging)	420V
Output Voltage@Open Circuit	420V
Current Accuracy	<±1% @ above 2A
Voltage Accuracy	<±0.5%
Output Power	3300W
Input Voltage Range	90~264Vac
Input Frequency Range	45-65Hz
Input Current(MAX)	22A
Max. Input Power	4000W
Power Factor	>0.99
Efficiency	95%
THD	<5%
Protections	OVP, OTP , SCP, Open Circuit Protection, UVLO
Environmental Protection Rating	IP66 for Module, IP20 for System
Working Temp	-40ºC~+60ºC
Cooling	Forced External Air Cooling/Water Cooling
Max Case Temp. (o C)	<80ºC@25ºC Ambient Temperature
EMI	Comply with EN55022 Class A
Surge Protection	3kV/6kV
Isolation Test	Primary to Secondary: 3600Vac/10mA max./60s
Dimension	230x181x62mm (LxWxH)
Weight	5Kg
Life Time	80,000 hours at 25ºC, 230Vac Input, and Continuous Full Load Output
