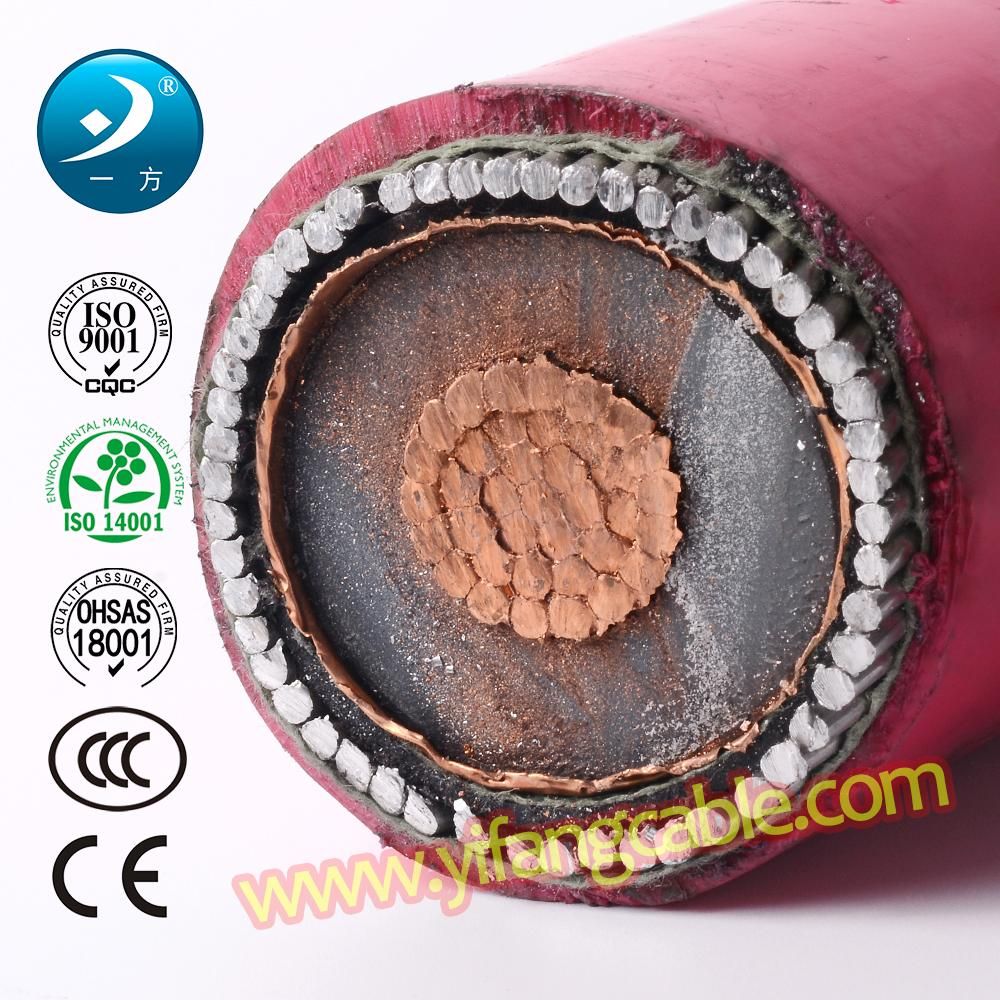

33kv XLPE/Sta/PVC Power Cable Single Core 240mm2

Prod Model:	YJV22
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheath Colour:	Red , Black , Other as Per Requirement
Oil Resistant:	According to Requirements
Anti-Termite:	According to Requirements
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Sheath Material:	PVC.PE or Lszh
Wire Core Material:	Copper or Aluminum
Model:	Yjv72,Yjv22
Brand:	Yifang

Product Description

XLPE Insulation, AWA/ATA Single Core MV Power Cable

Manufacture according to IEC, ASTM, BS, DIN, NFC, AS/NZS, CSA, IS, etc.

1. This cable belongs to cables rated voltage up to 35KV.

2. Commonly the cables comply with IEC 60502 standard. We can also produce according to the standard required by our clients, such as ASTM, BS, DIN, NFC, AS/NZS, CSA, IS, etc.

3. Rated Voltage of the cable is from 1KV to 35KV, Cross-section area is up to 1000 SQMM.

4. The cable can be used for laying indoor, tunnel, underground, canal, water and seabed, etc. The cable can bear external mechanical pressure and moderate pulling force with different design, such as metallic armour, water proof material, corrugated alu sheath, lead sheath, etc.

5. Conductor long-time operating temperature is 90 degrees. In short circuit, conductor highest temperature is 250 degrees.

6. Cable Structure:
6.1 Single core or 3 Core
6.2 Copper or aluminium conductor
6.3 XLPE insulation
6.4 Copper tape or copper wire screen / Alu-Plastic Tape screen
6.5 Armoured with Galvanized steel wire / Steel tape / Aluminium Wire / Aluminium tape
6.6 Outer sheath with PVC / PE / LDPE / LLDPE

7. Export Areas: Philippines, Korea, Saudi Arab, Bangladesh, Singapore, Yemen, India, Iraq, Iran, UAE, Jordan, Qatar, Indonesia, Syria, UK, Italy, Germany, Romania, Belgium, Russia, South Africa, Zambia, Nigeria, Guinea, Gambia, Ghana, Kenya, Rwanda, Cô Te d'Ivoire, Eritrea, Zimbabwe, Mauritius, US, Peru, Canada, Mexico, Jamaica, Brazil, Chile, Bolivia, Ecutor, Dominican, etc.

8. Certificate: ISO, CE, SGS, SONCAP, BV, COC, ETC.

9. For other detailed information, pls contact us directly.


Class 2 stranded conductors for single-core and multi-core cables
1	2	3	4	5	6	7	8	9	10
Nominal crosssectional area	Minimum number of wires in the conductor						Maximum resistance of conductor at 20ºC
	Circular		Circular compacted		Shaped		Annealed copper conductor		Aluminium or aluminium alloy conductor
	Cu	Al	Cu	Al	Cu	Al	Plain wires	Metal-coated wires
mm2							Ω/KM	Ω/KM	Ω/KM
0.5	7						36	36.7
0.75	7						24.5	24.8
1	7						18.1	18.2
1.5	7		6				12.1	12.2
2.5	7		6				7.41	7.58
4	7		6				4.61	4.7
6	7		6				3.08	3.11
10	7	7	6	6			1.83	1.84	3.08
16	7	7	6	6			1.15	1.16	1.91
25	7	7	6	6	6	6	0.727	0.734	1.2
35	7	7	6	6	6	6	0.524	0.529	0.868
50	19	19	6	6	6	6	0.387	0.391	0.641
70	19	19	12	12	12	12	0.268	0.27	0.443
95	19	19	15	15	15	15	0.193	0.195	0.32
120	37	37	18	15	18	15	0.153	0.154	0.253
150	37	37	18	15	18	15	0.124	0.126	0.206
185	37	37	30	30	30	30	0.0991	0.1	0.164
240	37	37	34	30	34	30	0.0754	0.0762	0.125
300	61	61	34	30	34	30	0.0601	0.0607	0.1
400	61	61	53	53	53	53	0.047	0.0475	0.0778
500	61	61	53	53	53	53	0.0368	0.0369	0.0605
630	91	91	53	53	53	53	0.0283	0.0286	0.0469
800	91	91	53	53			0.0221	0.0224	0.0367
1000	91	91	53	53			0.0176	0.0177	0.0291
