| Prod Model: |
I-TECH 18000 |
| Amplifier Type: |
Digital Power Amplifier Class D |
| Frequency Response: |
20Hz-20kHz |
| Power Handling: |
3600watts |
| Sensitivity(1W/1m): |
0.775V |
| Channels Number: |
2 |
| Power Voltage: |
AC220V or AC110V |
| Power Plug: |
European, American, Asia or Customise |
| Warranty: |
3 Years |
| Safe Protection 1: |
DC Protection |
| Safe Protection 2: |
Short Circuit Protection |
| Type: |
Professional Amplifier |
| Usage: |
Professional Preformance |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
D |
| Function: |
Digital Power Amplifier |
| Output Number: |
2 |
| Sound Channel: |
2 |
Product Description
3600watts I-Tech 18000 Power Audio Amplifier Dj Amplifier Price
With us your business in safe, your money in safe.
Quality is our culture.
We can offer you:
1. Competitive advantage products
2. Confidentiality agreement
3. Factory price
4. Quality assurance contract
5. After-sales service 24*7Power amplifier
Amplifier power
Dj power amplifier
Sound power amplifier
Professional power amplifier

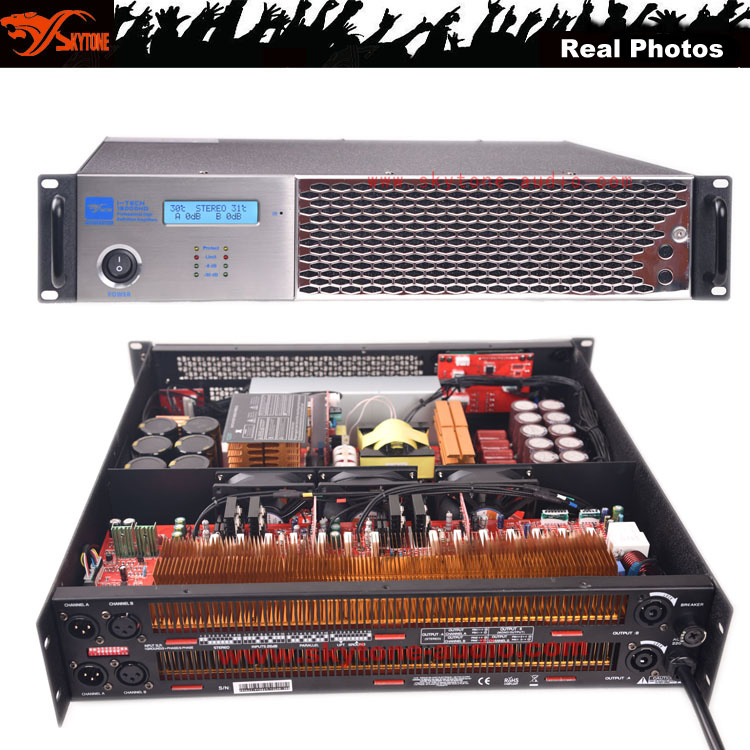

Class H professional power amplifierReal photos of 3600watts I-Tech 18000 Power Audio Amplifier Dj Amplifier Price:

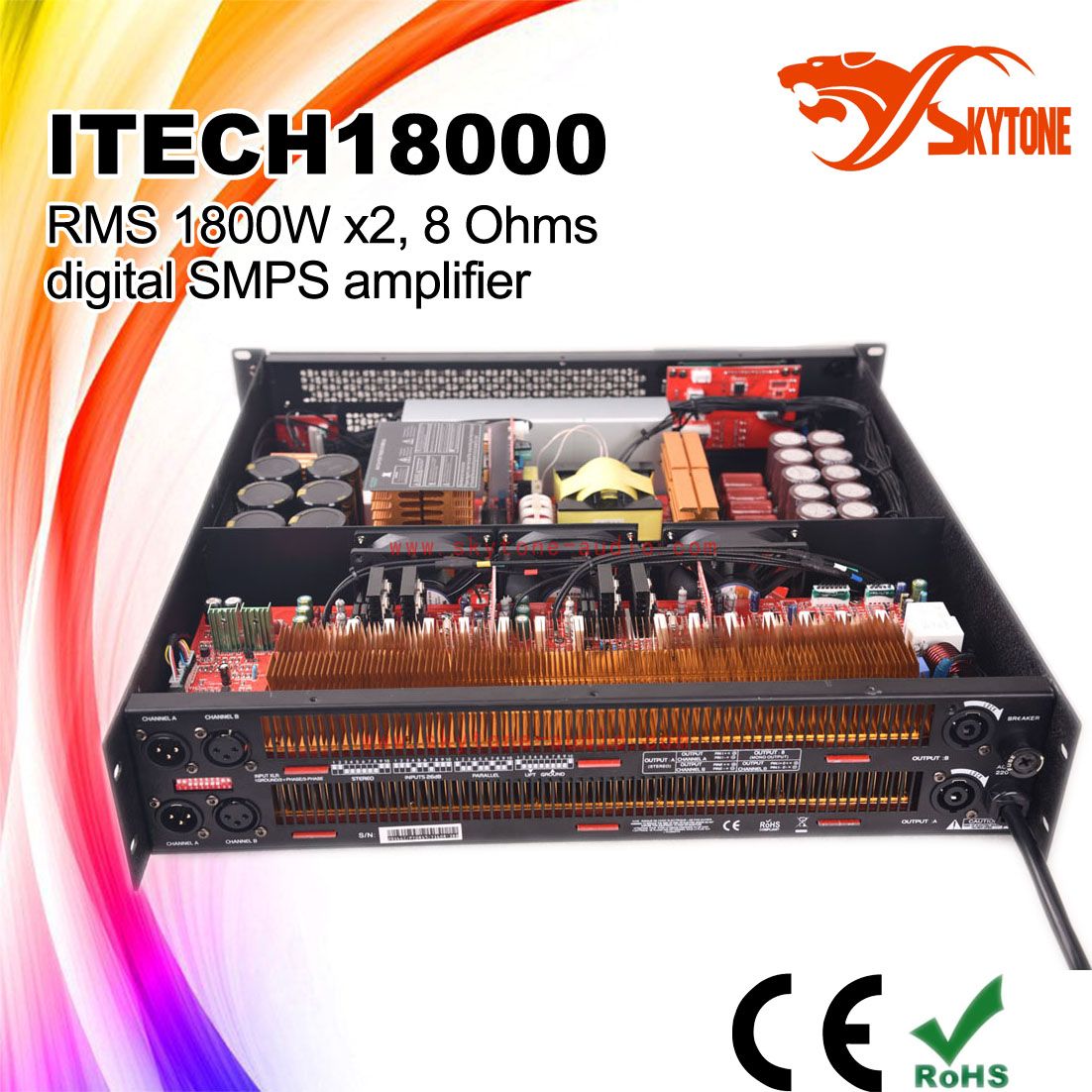

This series amplifier is the new designed amplifier of Skytone audio, it's switch power supply digital ammplifier, lightweight with high performance, more efficient than transformer power amplifier.

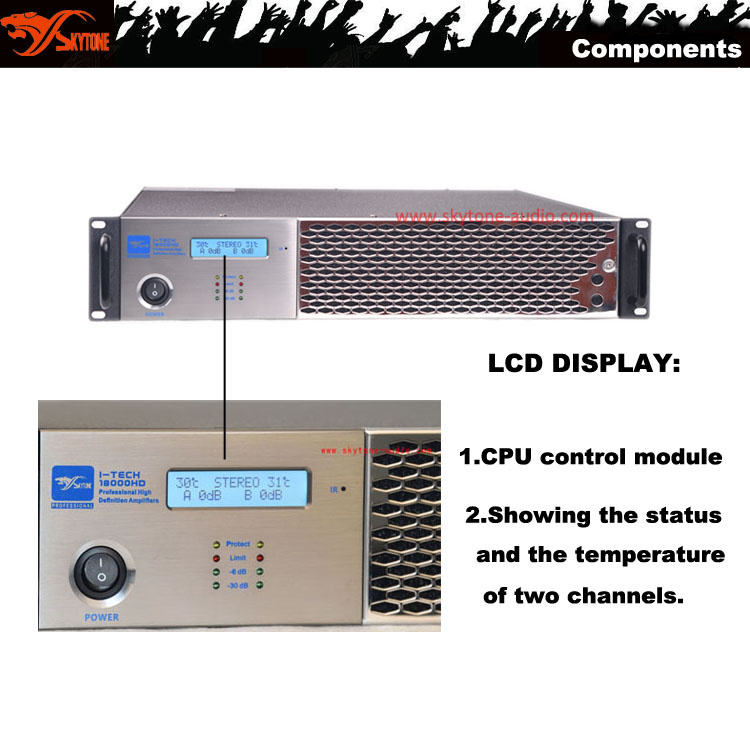

Skytone 12 years experience provide you professional products and service.Features of 3600watts I-Tech 18000 Power Audio Amplifier Dj Amplifier Price:1. LCD display: Can help you to check the amplifier temperature and how long time used.

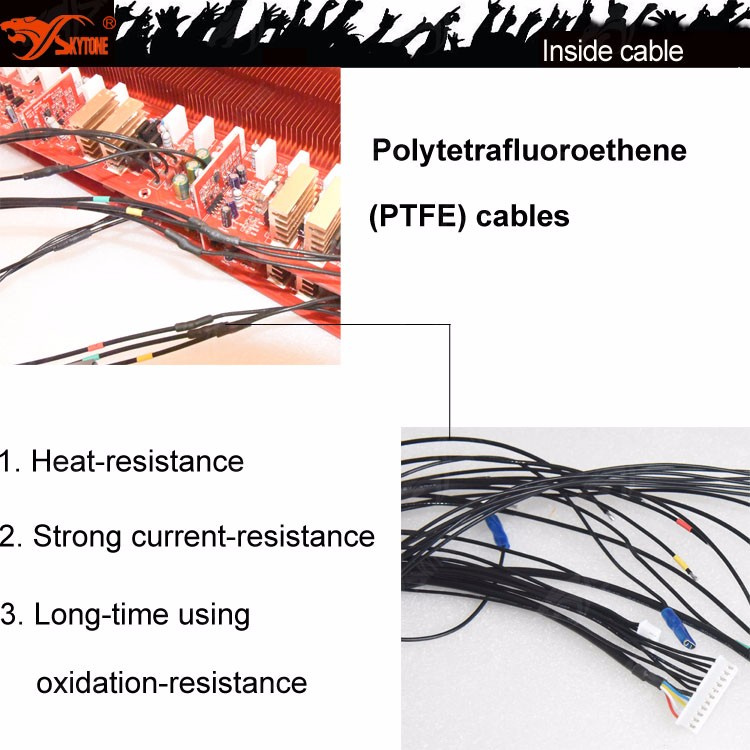

2. Cables: Using Polytetrafluoroethene(PTFE) cables, high temperature, resistance heavy current, Non-Oxidation for long time using.
3.Using Advanced Welding Procedure,preventing oxidation and poor connect, fuse for preventing DC overload
4.JICON large volume capacitor from listed state-owned enterprise, wide frequency
5.Powerful in low frequency, the delicate mid-high frequency highlights the appealing wide-range of frequency
6.Intelligent fans: dust-removing while powered on, the fans smoothly start working when temperature reaching 40 degrees , / silent mode at normal times to prolong the service life.
I-TECH Series has two big function:
1. Audio processing:
A. Adopt LCR0202 linear optical coupling: Pure resistance materials, nonpolar output; Input and output isolation, low distortion coupling.
B. Adopt Original ON Semi MJD340G & MJD350G high-class special-used triode transistor.
C. Adopt 2pcs pure copper , high-power output inductor: ensure the output dynamic.
D. Adopt high-class France Thomson feedback capacitor: fire-proof, low loss, high temperature resistant and wet resistance are good, stable capacitance, so I - TECH will be more stable.
2. Circuit protecting:
A.JICON large volume capacitor: Flitering and frequency selective function.
B. Philips safety capacitor: prevent the self-excitation caused by long distance audio cable transmission.
C. China best output relay: Compact with high contact rating, high switching capability, high sensitivity and high breakdown voltage.D. Adopt pure copper cables with PTFE Insulationofacable with heat-resistance, strong current-resistance, Long-time oxidation-resistance function.Specification of 3600watts I-Tech 18000 Power Audio Amplifier Dj Amplifier Price:| Technical Specification | I-Tech18000HD |
| Rated power(20Hz-20KHz) | 2 ohms Stereo Dual | 8640 |
| 4 ohms Stereo Dual | 7200 |
| 8 ohms Stereo Dual | 3600 |
| safe protection | Dc protection | √ |
| Short circuit protection | √ |
| Overheat Protection | √ |
| Input Overload Protection | √ |
| Output Overload Protection | √ |
| Frequency Response(1W 8ohms) | 20Hz-20KHz(±3dB) |
| Sensitivity(8ohms 1KHz) | 0.775V |
| Installation space | 2U |
| Cooling system | intelligent system,automatic adjustment according to changing
temperature |
| Size(WXHXD) | 46cm X 48.5cm X9.5cm |
| Net Weight | 14kg |
| After-sales service | 3 years Warranty (non-artificial Damage) |
Package of 3600watts I-Tech 18000 Power Audio Amplifier Dj Amplifier Price:1. I-TECH18000 packed in carton case, putting foam to prevent damage from delivery.

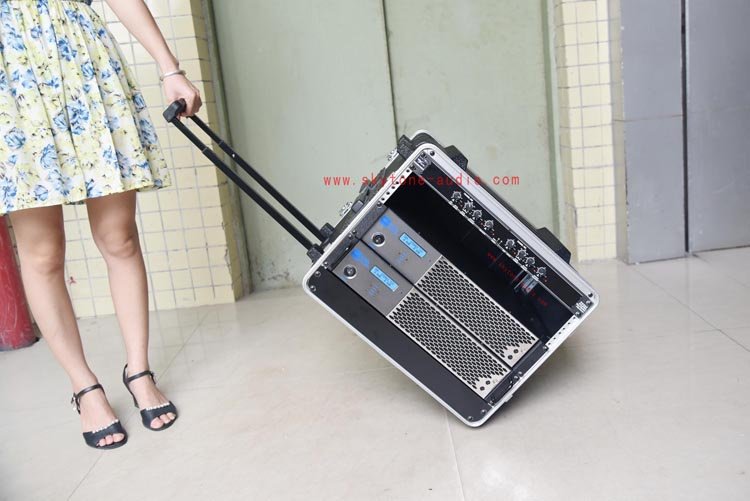

2. I-TECH18000 packed in flight case, durable and easy to move.
Shipping of 3600watts I-Tech 18000 Power Audio Amplifier Dj Amplifier Price:3 shipping ways are available depending on customers needs.
# Ship by air cargo to customer's nearest airport.
#Ship by courier (door to door), such as TNT,DHL,UPS,FEDEX and so on.
#Ship by sea to your nearest port.Certification of Skytone Audio:
