360W LED Controller for RGB, Single Color, CCT LED Light

Power:	20W/Meter Max
CCT:	Ww/ Wh/ R/ G/B/Y/RGB/RGBW Ect Available
Lead Time:	3 Working Days
Warranty:	3years
Application:	Building

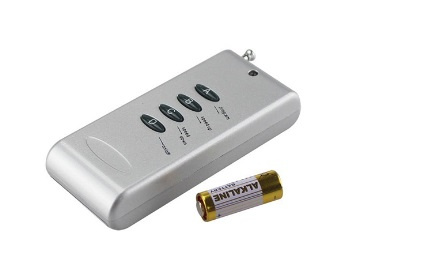

Signal Transmission:	RF Remote Control
Type:	Button
Certification:	RoHS
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	AAA Battery
Voltage:	12V-24V

Product Description

                                                1. This RGB controller is used for adjust the color brightness and speed changing
2. There are total 25 kinds of changing functions
3. With the RF controller, use conveniently
4. With the memory function, the setting will last longer
5. There are a lot of effects that suitable for RGB strip and Single color strip
                                                                                                      Product Description
It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light , LED module and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless remote control. And according to the actual need of customers, it can carry out jumpy changing, gradual changing, strobe-flash and other effects of change.

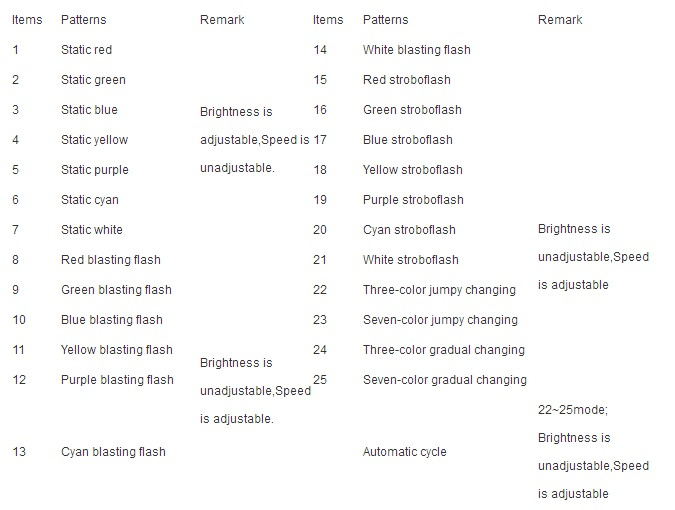

Dynamic modes




• Specifications                                                                                                                                                                         Working temperature:-20-60ºC
  Input voltage:DC5V~24V
  Output:3circuit
  Connection mode:Common anode
  Controller size:110*90*24.7
  package size:140.4*97.4*50.7
  Net weight:200 g
  Gross weight:230 g
  Static power consumption:<1W
  Output current:10A/ch
  Output power:10A  5V:<150W,  12V:<360W,  24V:<360W
