3core Multicore Cable Power Cable

Name: 3core Multicore Cable Power Cable
Brand: all-electronics-online.com
SKU: 711570962
Availability: InStock
Rating: 4.9 (50 reviews)

Price:	US $ 0.1/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Conductor Material:	Cu or Al
Sheath Colour:	Black
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Certification:	VDE
Insulation Material:	XLPE/PVC/PE
Material Shape:	Circular or Shape
Model:	Yjv32
Brand:	Yifang

Product Description

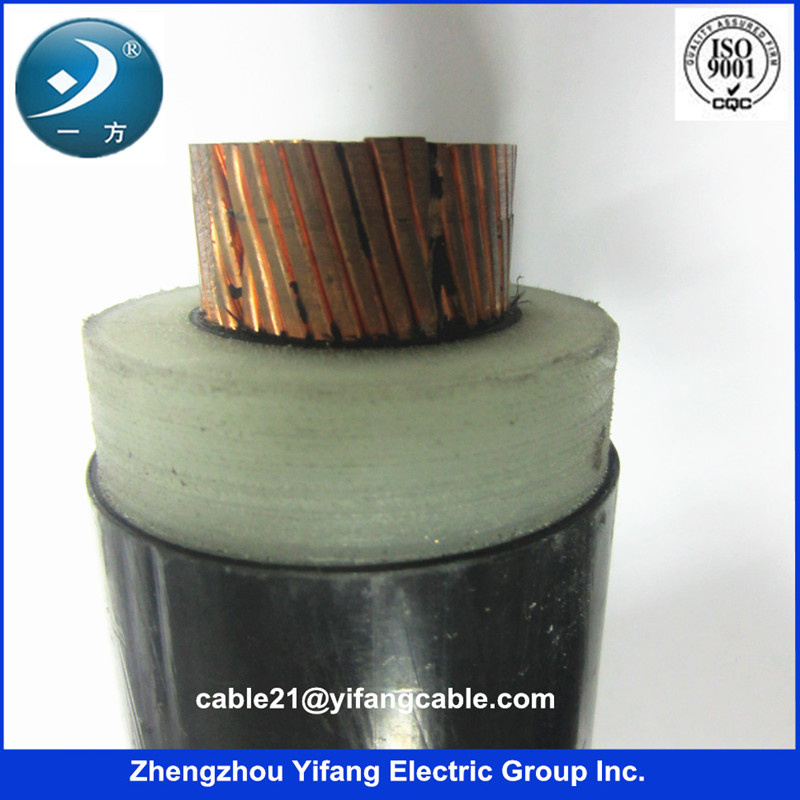

XLPE/PVC Insulation LV (Low Voltage) Power Cable

1.XLPE/PVC Insulation LV (Low Voltage) Power Cable cable belongs to cables rated voltage up to 1KV. They are used for laying indoor, tunnel, underground, canal, water and seabed, etc .

Standard available such as ASTM , BS , DIN ,NFC , AS/NZS , CSA , IS , etc.

2.Brief Construction:
2.1 Number of Core : 1Core , 2Core,3Core , 4Core , 5Core , 3+1Core(3.5Core) , 3+2 Core , 4+1Core , etc.
2.2 Conductor material: Copper or Aluminum (Stranded Round /Stranded compacted round/stranded compacted sector)
2.3 Insulation Material: XLPE/PVC/PE/LSHF
2.4 Inner sheath (applicable if there is armour layer): PVC/PE
2.5 Armour layer (if required) :Galvanized steel wire / Steel Tape
2.6 Outer sheath : PVC/PE

3.The max. conductor long time permissible operating temperature is 70 degree for PVC Insulation and 90degreefor XLPE Insulation ; In short circuit, max. Temperature is 160 degree for PVC Sheath and 250degreefor PVC Sheath.

4.Packing : In roll / In wooden drum / In Iron-wooden drum / In steel drum.

5.Certificate: ISO , CE , SGS, SONCAP , BV , COC,ETC.

6.For other detailed information, pls contact us directly .

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
