Prod Model: |
Rack Mount Star Series |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Waveform: |
Pure Sine Wave |
Interface: |
Smart RS232 Communication |
Warning: |
Site Wiring Fault Warning |
Rackmount / Tower: |
Yes |
Phase: |
Single Phase |
Type: |
On-line |
Protection: |
Overcurrent |
Brand: |
Upsen |
Product Description

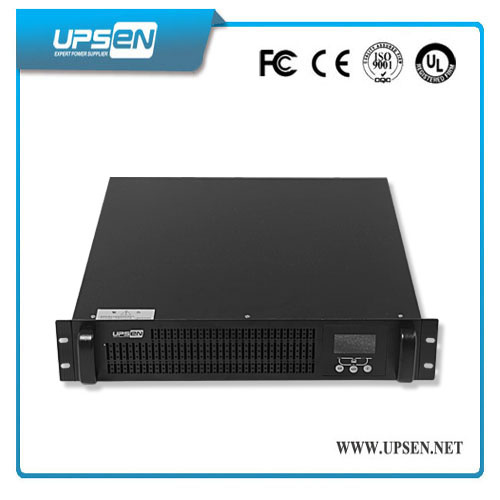

3kVA/2400W Rack Mount Online UPS for Data Room with LCD
Model: High Frequency Online UPS Rack Mount Star Series RM 1K-10KVA(1Ph in/1Ph out)
Key Features:
1:Supporting various software system
2:Intelligent battery management for long service life.
3:Input zero frontline detection function, Bypass output.
4:Automatic startup function, Long-term type power design.
5:SNMP allows for web-based remote or monitoring management.
6:It has voltage breakthrough protection and strong anti-interference function.
7:True online double conversion technology with advanced microprocessor control.
8:Adopting high frequency full bridge topology for high steady performances.
9:It has voltage breakthrough protection and strong anti-interference function.
10:True online double conversion technology with advanced microprocessor control.
11:rack mount ups, online ups high reliability from dsp-base micro-processor control tech cpu control rack mount ups
12:rack mount ups, online ups, 3 kva ups with pfc ac to dc rectifier of high input pf 0.99 bette ac-ultilization 19 inch rack mount ups
Applications
Telecom System,Network Rooms,Education System,Medical Equipment,Financial System,Securities System pump,microwave oven,squeezer,air-condition,fridge,mower,soybean milk maker,etc
Technical Specification
Rack Mount Star Series RM1K-10K |
Model | RM1K | RM2K | RM3K | RM1KL | RM2KL | RM3KL | RM6KL | RM10KL |
Input | Phase | Single Phase with Ground |
Nominal Voltage | 110115//120Vac or 220/230/240Vac | 220/230/240Vac |
Voltage Range | 60-138VAC or 115 ~ 300VAC | 176 ~ 276VAC |
Frequency Range | 46 ~ 54Hz(default), user adjustable within 40~60Hz | 46 ~ 54Hz |
Power Factor | 0.97 | 0.98 |
Connection | IEC320-10A inlet | IEC320-16A inlet | IEC320-10A inlet | IEC320-16A inlet | Terminal Block |
Output | Phase | Single Phase |
Voltage | 110/115/120Vac or 220/230/240VAC ± 2% | 110/115/120Vac or 220/230/240VAC± 1% |
Frequency | 46~54Hz or 50Hz ± 0.2Hz (Line mode) | 46~54Hz (Line mode) |
50Hz ± 0.2Hz ( Battery mode) | 50Hz ± 0.05Hz ( Battery mode) |
Waveform | Pure Sine Wave |
Power Factor | 0.7/0.8 Optional |
Overload Capability | 108%~150% for 30 sec., 150% for 300 ms | 105%~130% for 10 min., |
|
130% for 1 min. |
Current Crest Ratio | 3:01 |

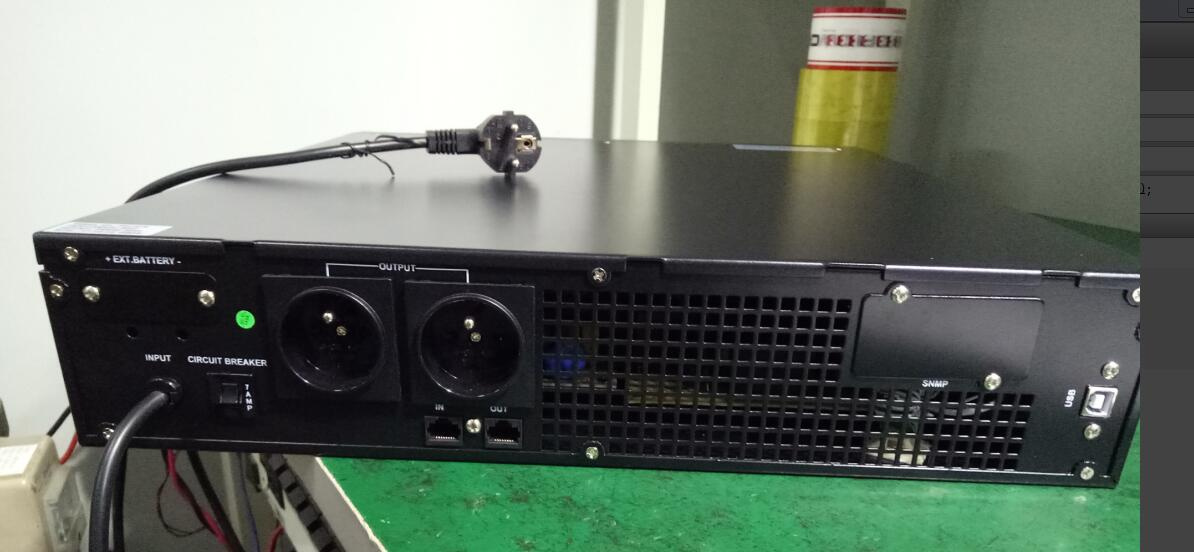

Connections | IEC320 -10A * 4 | IEC320-10A and | IEC320 -10A * 4 | IEC320-10A and | IEC320-10A * 4 and |
| | |
Terminal Block | Terminal Block | Terminal Block |
Bypass | Automatic Transfer | on overload and UPS failure |
Before UPS Power-on | Default "NO", user adjustable to "YES" | Yes |
Voltage Range | 80~264VAC (Default), user adjustable within 80~286VAC | 176 ~ 261VAC |
Transfer Time | 0 ms; less than 4 ms from inverter to bypass and vice versa | Zero |
LED /LCD indicators | Load level / Battery level, Battery , Utility Power, |
|
Inverter, Bypass, Overload, Fault |
Audible Alarm | Bypass, On battery mode, Battery low, Overload, Fault |
Communications | RS-232 Serial Interface |
Intelligent Slot; |
OPTIONS: WEBPOWER SNMP/WEB card, |
|
AS400 card or WinPower CMC) |
Network Surge Protection | RJ45 I/O port available for network or Fax/Modem |
Environmental | Operating Temperature | 0 ~ 40°C |
Operating Humidity | 20 ~ 90% non-condensing |
Main Unit | Net Weight (Kg) | 16.3 | 10.3 | 11.2 | 9.1 | 11.5 | 12.3 | 18.3 | 20.3 |
Dimensions (W x D x H) mm | 482 x 420 x 88 (2U) | 482 x 420 x 88 (2U) or | 482 x 420 x 88 (2U) | 482.6 x 600 x 130 (3U) |
|
(3U Internal Batteries) |
Battery Pack | Type | Internal Batteries | External Battery Pack |
Nominal DC Voltage | 24/36VDC | 48/72VDC | 72/96VDC | 24/36VDC | 48/72VDC | 72/96VDC | 192/240VDC |
Battery Numbers | 2/3Pcs *12V7.2Ah | 4/6Pcs *12V7.2Ah | 6/8Pcs *12V7.2Ah | Depending on the capacity of |
| |
& Capacity | external battery packs |
Backup Time (Full load) | 5 min | 7min (with 1 BP) | 5 min (with 1 BP) | |
|
Recharge Time | 5hrs to 90% | 5hrs to 90% | 5hrs to 90% | |
Charging Current (Max.) | 1.0A | 1.0A | 1.0A | 8A±1A | 4.2A |
Charging Voltage | 41.1Vdc±0.6V | 110Vdc±0.4V | 41.1Vdc±0.6V | 110Vdc±0.4V | 274Vdc±1%V |
Net Weight (Kg) | --- | 25.3 | 25.3 | --- | --- | --- | --- |
Dimensions (W x D x H) mm | --- | 482 x 420 x88 (2U) | 482 x 420 x88 (2U) | --- | --- | --- | --- |
