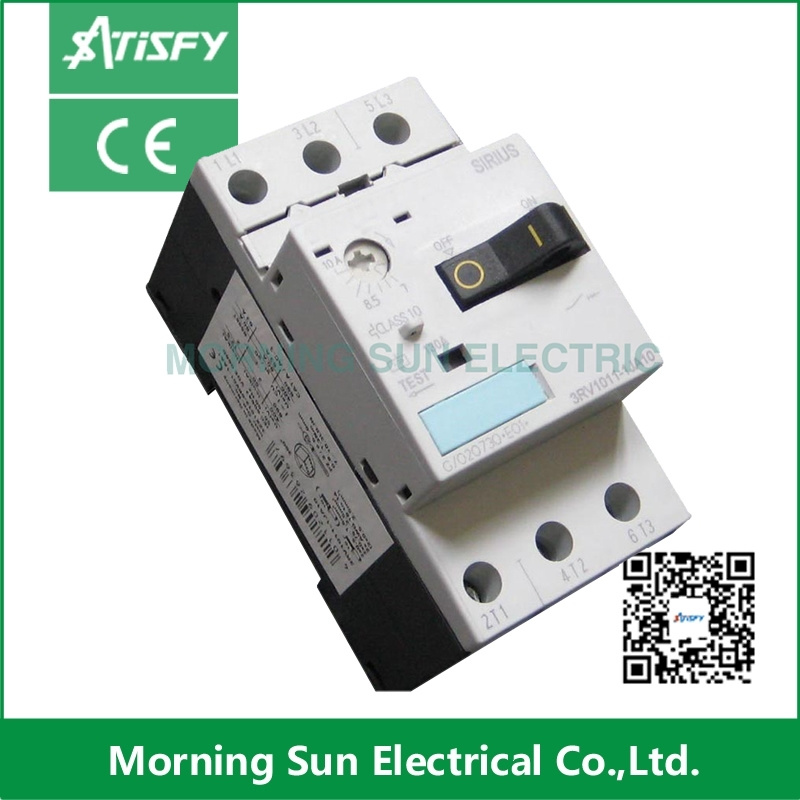

Morning Sun Electric Co., Ltd. >> 3RV MPCB with High Quality

3RV MPCB with High Quality

3RV MPCB with High Quality
Price: US $ 7.00/Piece
Trade Terms: FOB,CIF,FCA
Min Order: 50/Piece
Pay Type: T/T,D/P,Paypal,Money Gram,Western Union
Prod Model: 3RV1011 3RV1021
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competitive Prices: OEM
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Electric Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Poles Number: 3
Certification: CCC
Structure: Moulded Case Circuit Breaker

Product Description


3RV Motor Protection Circuit Breake.
3RV series circuit breakers are mainly used for the overload,short-circuit and phase-failure protection for motors in the circuit of AC 50/60Hz,rated operating voltage up to 660V,rated operating current from 0.1A to 25A.



Code Number

Ratings, In (A)

Motor Power (kW)

Current Range

Instantaneous Tripping

3RV10 21-0AA1

0.16

0.04

0.11-0.16

2.1A

3RV10 21-0BA1

0.2

0.06

0.14-0.2

2.6A

3RV10 21-0CA1

0.25

0.06

0.18-0.25

3.3A

3RV10 21-0DA1

0.32

0.09

0.22-0.32

4.2A

3RV10 21-0EA1

0.4

0.09

0.28-4

5.2A

3RV10 21-0FA1

0.5

0.12

0.35-0.5

6.5A

3RV10 21-0GA1

0.63

0.18

0.45-0.63

8.2A

3RV10 21-0HA1

0.8

0.18

0.55-0.8

10A

3RV10 21-0JA1

1

0.25

0.7-1

13A

3RV10 21-0KA1

1.25

0.37

0.9-1.25

16A

3RV10 21-1AA1

1.6

0.55

1.1-1.6

21A

3RV10 21-1BA1

2

0.75

1.4-2

26A

3RV10 21-1CA1

2.5

0.75

1.8-2.5

33A

3RV10 21-1DA1

3.2

1.1

2.2-3.2

43A

3RV10 21-1EA1

4

1.5

2.8-4

52A

3RV10 21-1FA1

5

1.5

3.5-5

65A

3RV10 21-1GA1

6.3

2.2

4.5-6.3

821

3RV10 21-1HA1

8

3

5.5-8

104A

3RV10 21-1JA1

10

4

7-10

130A

3RV10 21-1KA1

12.5

5.5

9-12.5

163A

3RV10 21-4AA1

16

7.5

11-16

208A

3RV10 21-4BA1

20

7.5

14-20

260A

3RV10 21-4CA1

22

11

17-22

286A

3RV10 21-4DA1

25

11

20-25

325A

Morning Sun Electrical Co., Ltd. Founded in 1995, located in the Liushi Town - "Electric Capital", mainly producing Micro switch, Contactor, MCB, MCCB, Auto-Air-Conditioner Parts and Thermostats and related products, which have been sold to Europe, North America, South America, Middle East, Southeast Asia and so on. Based of the "Good quality, competitive price, timely shipment and nice service", now getting regular repeated orders and enjoying the good reputation among our customers.

"Morsun" is prepared and willing to cooperate with any friends from all over the customers for the mutual benefits and bright tomorrow!
