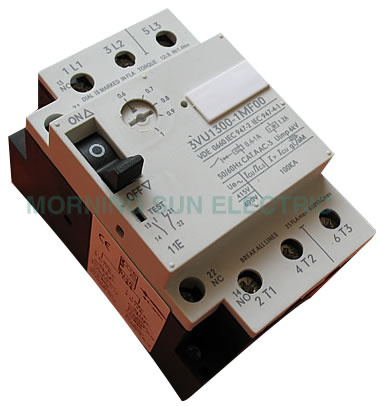

3VU13 Motor Protection Circuit Breaker

Name: 3VU13 Motor Protection Circuit Breaker
Brand: all-electronics-online.com
SKU: 680546855
Availability: InStock
Rating: 4.4 (89 reviews)

Price:	Negotiable
Min Order:	1

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Energy-storage Type
Installation:	Fixed
Speed:	Normal Type Circuit Breaker
Structure:	Moulded Case Circuit Breaker

Product Description

The product is suitable to be used in circuit of rated voltage up to AC 660V 50/60Hz, rated current from 0.1A to 63A. It is applicable for protection of overload & short circuit of 3 phase squirrel-cage motors. It also can be used as direct starter to start the motor and a switch for changeover the circuit under normal conditions.

3VU1300			3VU1600
Current setting range(A)	Power of controlled motor(KW)	Current rated (A)	Current setting range(A)	Power of controlled motor(KW)	Current rated (A)
0.1-0.16		0.16	1-1.6	0.37-0.55	1.6
0.16-0.24	0.06	0.24	1.6-2.4	0.75	2.4
0.24-0.4	0.09/0.12	0.4	2.4-4	1.1-1.5	4
0.4-0.6	0.12/0.18	0.6	4-6	2.2	6
0.6-1	0.25	1	6-10	3/4	10
1-1.6	0.37/0.55	1.6	10-16	5.5/7.5	16
1.6-2.4	0.75	2.4	16-25	11	25
2-3.2	1.1	3.2	22-32	15	32
2.4-4	1.1/1.5	4	28-40	18.5	40
3.2-5	1.5/2.2	5	36-52	22	52
4-6	2.2	6	45-63	-	63
5-8	3	8
6-10	3/4	10
8-13	4/4.5	13
10-16	7.5	16
14-20	7.5	20
18-25	11	25
