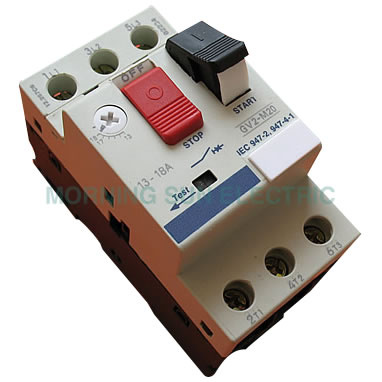

GV2 Motor Protection Circuit Breaker, MPCB

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Energy-storage Type
Installation:	Fixed
Speed:	Normal Type Circuit Breaker
Structure:	Moulded Case Circuit Breaker

Product Description

GV2 series motor protection circuit breaker are mainly used for the overload and short circuit protection of the motor in AC 50/60Hz, up to 660V, 0.1-80A power circuit, as a full-voltage starter to start and cut off the motor, under the AC3 load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network.

GV2-M01 0.10-0.16A, GV2-M02 0.16-0.25A, GV2-M03 0.25-0.40A
GV2-M04 0.40-0.63A, GV2-M05 0.63-1.00A, GV2-M06 1.00-1.60A
GV2-M07 1.60-2.50A, GV2-M08 2.50-4.00A, GV2-M10 4.00-6.30A
GV2-M14 6.00-10.0A, GV2-M16 9.00-14.0A, GV2-M20 13.0-18.0A
GV2-M21 17.0-23.0A, GV2-M22 20.0-25.0A, GV2-M32 24.0-32.0A
Top Mount Auxiliary: GV2-AE11, AE20
Side Mount Auxiliary: GV2-AN11, AN20
