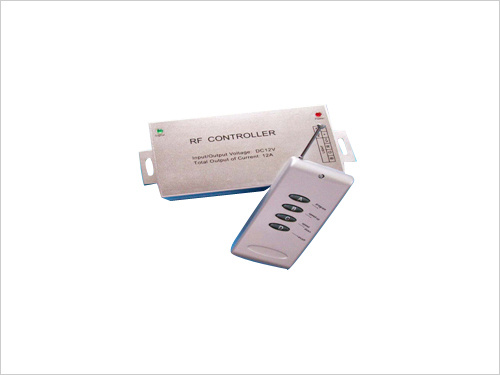

4-Key RF Controller with RF (GN-CTL002)

Name: 4-Key RF Controller with RF (GN-CTL002)
Brand: all-electronics-online.com
SKU: 735395805
Availability: InStock
Rating: 4.6 (58 reviews)

Price:	US $ 4.8-5.2/Piece
Trade Terms:	FOB
Min Order:	5/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GN-CTL002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Control The LED Lamp
Application:	LED Products
Signal Transmission:	RF Remote Control
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V

Product Description

Product Description
RF controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection, simplicity to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.

TechnicalParameters
Working temperature: -20-60° C
Supply voltage: DC5V, 12V~24V
0utput: 3channels
Connecting mode: Common anode
External dimension: L130*W64*H24mm
Packing size: L137*W80*H54 mm
Net weight: 185g
Gross weight: 215g
Static power consumption: <1W
Output current: <4A(each channel)
Output power: 12V: <144W, 24V: <288W
