4 kHz Direct Current Resistance Seam Welding Inverter with LCD Display for Encapsulating Metal Shells of Quartz Crystal, Sensor

Name: 4 kHz Direct Current Resistance Seam Welding Inverter with LCD Display for Encapsulating Metal Shells of Quartz Crystal, Sensor
Brand: all-electronics-online.com
SKU: 838887965
Availability: InStock
Rating: 4.6 (57 reviews)

Price:	Negotiable/Set
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MD-05L
Application:	Supply Power for Welding Machine
Type:	Pulse Current
Duty Cycle:	20
Warranty:	1 Year
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Certification:	CE
Output Type:	DC (Vp)
Output Power:	4~12kVA
Input Voltage:	3~380V

Product Description

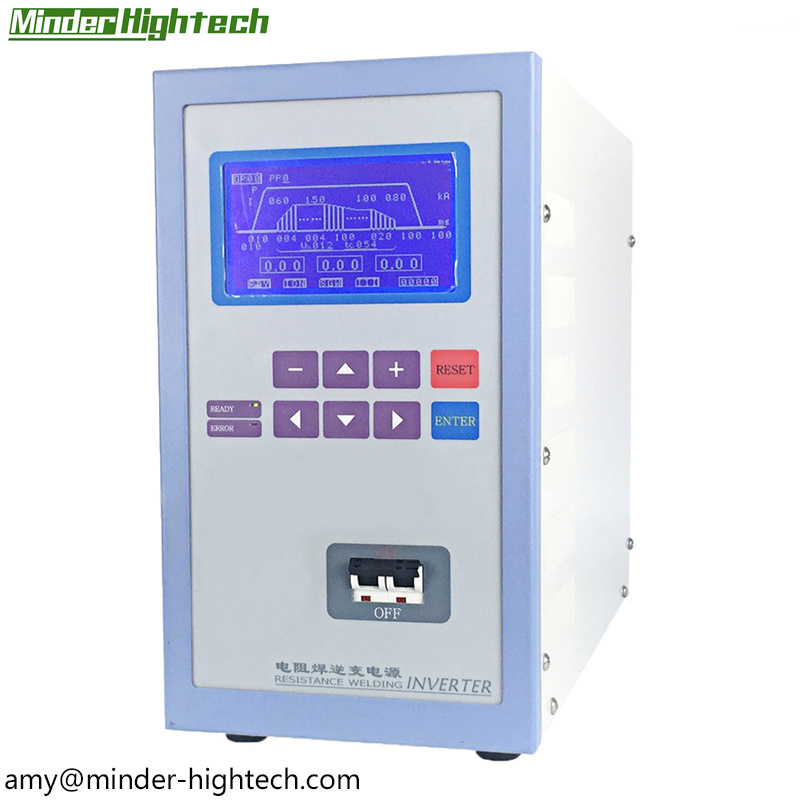

PRODUCT SHOW

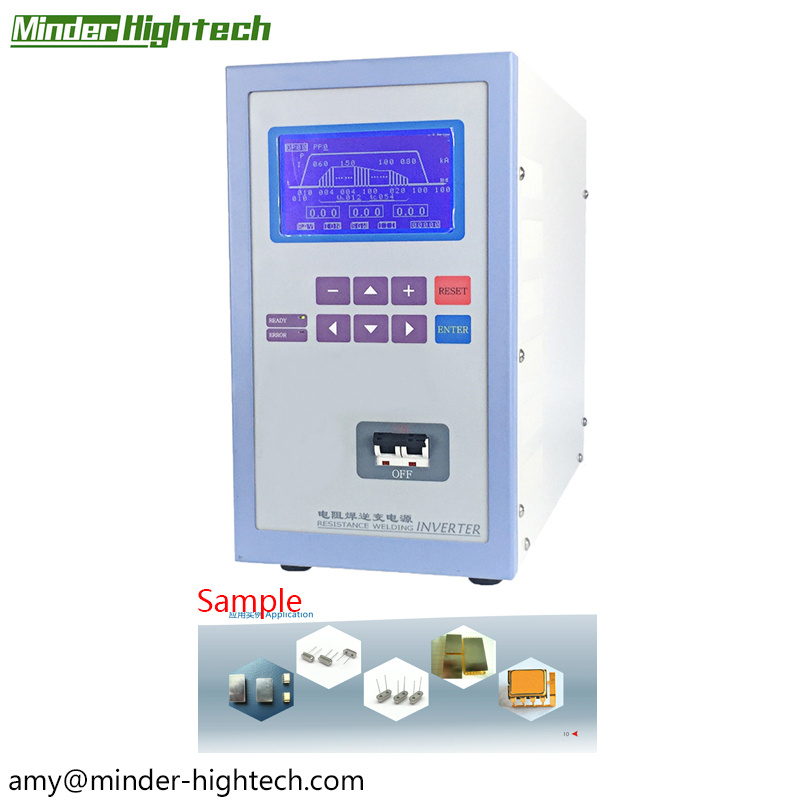

WELDING SAMPLES

FEATURES

1. Seam welding system based on 4 kHz inverter, high precision.

2. The pulse current, time and the interval time are fine adjusted,

available for most process requirement.

3. Waveform programming, easy to control the heat balance

during welding process.

4. Displaying parameters and functions by LCD.

5. With various interfaces, convenient for automatic application.

6. Suitable for encapsulating metal shells of quartz crystal,

integrated circuit, sensor and so on.

TECHNICAL PARAMETER

Type	MD-05L	MD-06L	MD-07L	MD-08L
Line voltage (V)	220V	220V	220V	0~380V
Rated capacity (kVA)	4	6	10	12
Max. output current (DCA)	1000	2000	3000	4000
Duty cycle (%)	20	20	20	20
Inverting frequency (kHz)	4	4	4	4
Heating stage	5	5	5	5
Upslope and downslope	yes	yes	yes	yes
schedules	20	20	20	20
Dimensions (LBH) (mm)	435185320	435185320	435185320	460400300
Weight (kg)	18	20.5	22	33

QUALIFICATION HONOR

If you need more further details about our machine, please feel free to contact us .

Guangzhou Minder-Hightech Co., Ltd is focused on connection(welding).

We are specialized in most of the connection(welding) technics, the most application we have participated in are electronic component(resistance, capacitor, inductor), chip on board, automotive electronic accessories, cell phone, IC cards, motor armature commutator etc. By material, we have engaged in connecting the Aluminum, Copper, Brass, Aurum(gold), Platinum, Nickel, Enameled wire, etc.

Our product are classified into resistance spot welding, inverter seam welding, ultrasonic wire bonding, hot bar soldering, automatic TIN soldering, stud welding, all the product are with mature latest technology, high performance, high precision, and high reliability.

At the same time, we maintain a good relationship with the high school scientific research institution, we know the newest connection(welding) technology direction all over the world, committed to give out the best connection(welding) solution to our global customer.

We chose the most open and industrialized city-guangzhou-to be our base head place, to ensure the efficiency and rapidly response.

We company are fresh, but we have more than 20 years welding experience, these years, we proud of our growth with the famous company such as TPT, K&S, Bosch, Miyachi, Uniteck, Avio, Apollo etc.
