High Quality Fet Linear DC Spot Resistance Welding Power Supply for Industrial Use From China

High Quality Fet Linear DC Spot Resistance Welding Power Supply for Industrial Use From China
Price: Negotiable/Set
Min Order: 1/Set
Pay Type: T/T
Prod Model: MD-05T
Application: Supply Power
Type: Consant Current
Duty Cycle: 5
Warranty: 1 Year
Input Voltage: 110-220V
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Certification: CE
Output Type: DC (Vp)
Output Power: 2.5~10kVA

Product Description

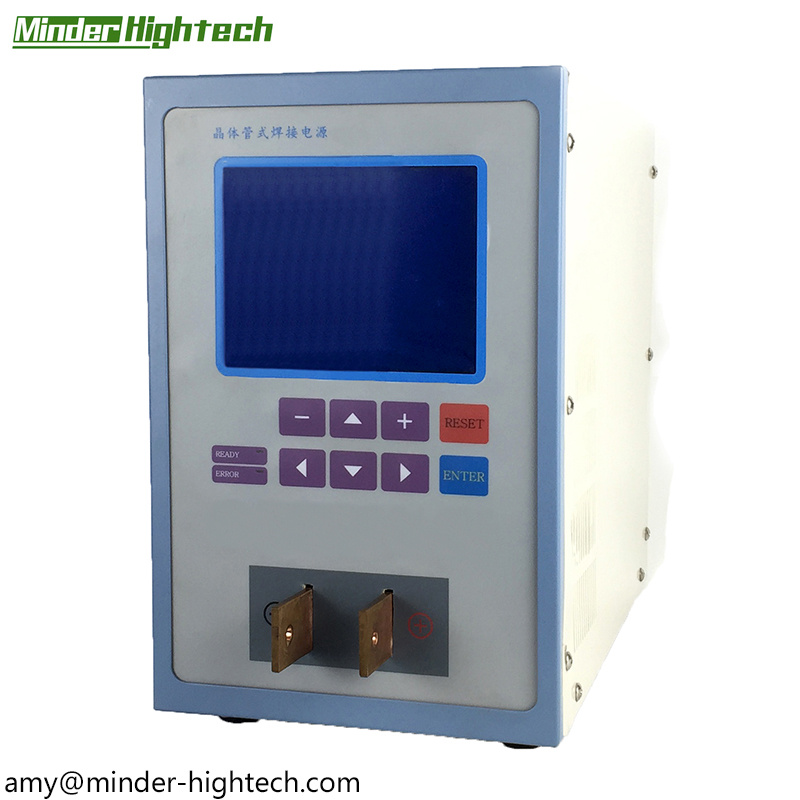

PRODUCT SHOW

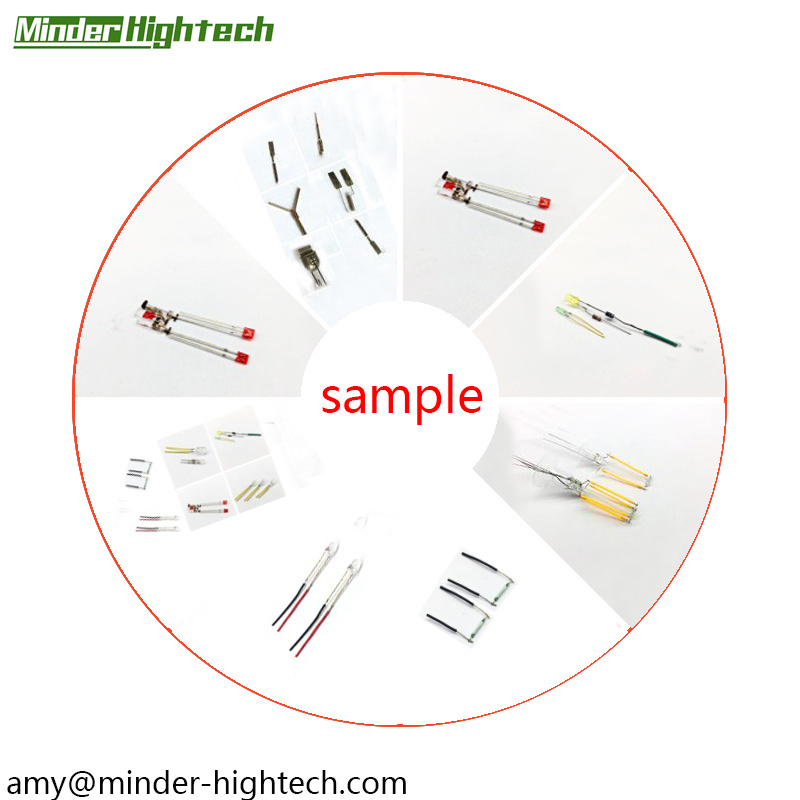

WELDING SAMPLES






FEATURES

1. Constant current, constant voltage, constant

  power control modes available.

2. Dynamic resistance monitor.

3. High stable current output.

4. High-resolution current and welding time.

5. Fast dynamic response.



TECHNICAL PARAMETER

Type

MD-05T

MD-06T

MD-08T

Line voltage (V)

220V

220V

220V

Rated capacity (kVA)

2.5

5

10

Max. output current (DCA)

1000

2000

4000

Duty cycle (%)

5

5

5

Output mode

DC(VP)

DC(VP)DC(VP)

Time setting(ms)

0-9.99 0-9.99 0-9.99

Welding pulses

333

Upslope and downslope

yes

yes yes

Dimensions (L*B*H)  (mm)

365*200*320

400*220*360

480*230*390

Weight (kg)

13.5

21

35





QUALIFICATION HONOR








If you need more further details about our machine,  please feel free to contact us .









Guangzhou Minder-Hightech Co., Ltd is focused on connection(welding).

We are specialized in most of the connection(welding) technics, the most application we have participated in are electronic component(resistance, capacitor, inductor), chip on board, automotive electronic accessories, cell phone, IC cards, motor armature commutator etc. By material, we have engaged in connecting the Aluminum, Copper, Brass, Aurum(gold), Platinum, Nickel, Enameled wire, etc.

Our product are classified into resistance spot welding, inverter seam welding, ultrasonic wire bonding, hot bar soldering, automatic TIN soldering, stud welding, all the product are with mature latest technology, high performance, high precision, and high reliability.

At the same time, we maintain a good relationship with the high school scientific research institution, we know the newest connection(welding) technology direction all over the world, committed to give out the best connection(welding) solution to our global customer.

We chose the most open and industrialized city-guangzhou-to be our base head place, to ensure the efficiency and rapidly response.

We company are fresh, but we have more than 20 years welding experience, these years, we proud of our growth with the famous company such as TPT, K&S, Bosch, Miyachi, Uniteck, Avio, Apollo etc.
