6" 8" Horizontal Automatic Wafer Back Grinder

Price:	US $ 1-57000/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MDYM-230WH
Type:	Disc Grinder
Power Source:	Electricity
Material:	Panel
Working Style:	High-speed universal
Application:	Semiconductor

Product Description

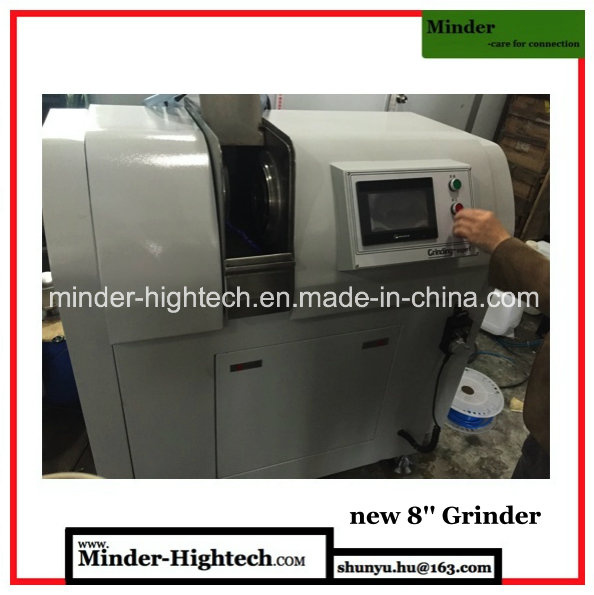

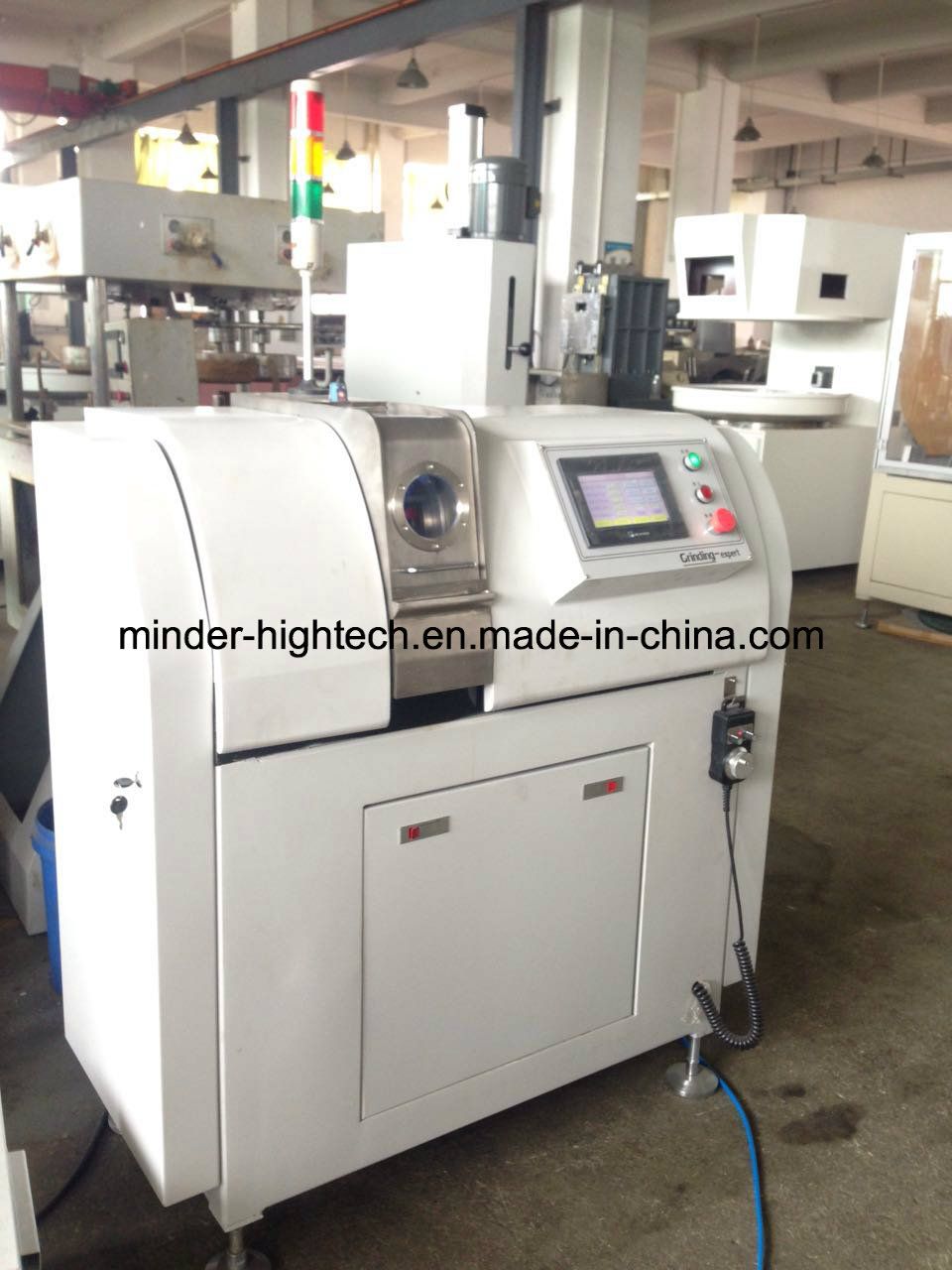

6" 8" horizontal automatic wafer back grinder

Application:

This ginder is suitable for high hardness,thin,and high precision product. like LED sapphire substrate,quartz crystal,silicon wafer,ceramic,wolfram plate, germanium plate thinning(grinding)

Principle:

This machine is automatic precision grinding machine,the sucker/chuck(either vacuum type or electromagnetism type) suck the wafer and rotary opposite from the grinding wheel,the grinding wheel feeding by driving system. this method has low drag force,will not broke the wafer,and high productivity.

This machine can auto aiming the tool, actually test the grinding torque,automatic adjust the grinding speed, so to avoid broking the wafer.

1,Can grind the wafer to 80um, and the planeness and parallelism can be +-0.002mm.

2,High speed, LED sapphire substrate can be 48um/minute, silicon wafer can be 250um/minute.

Specification:

Model	MDYM-150WH	MDYM-180WH	MDYM-200WH	MDYM-230WH	MDYM-300WH
Grinding wheel	D150*h25mm	D180*h25mm	D200*h30mm	D230*h30mm	D300*h30mm
Max material size	D150mm	D180mm	D200mm	D230mm	D300mm
Material spindle speed(adjustable)	0-1000rpm	0-1000rpm	0-800rpm	0-800rpm	0-800rpm
Grinding wheel speed(adjustable)	0-2000rpm	0-2000rpm	0-1800 rpm	0-1800 rpm	0-1800 rpm
Grinding wheel motor power	1.5kw/3*380V	1.5kw/3*380V	2.2kw/3*380V	2.2kw/3*380V	2.2kw/3*380V
Material spindle motor power	0.75kw/3*380V	0.75kw/3*380V	0.75kw/3*380V	0.75kw/3*380V	1.1kw/3*380V
Parallelism	1um(for D100mm)	1um(for D100mm)	1um(for D100mm)	1um(for D100mm)	1um(for D100mm)
Dimension(mm)	12005501550	12005501550	13506001600	13506001600	15007001650
Weight	760kg	850kg	960kg	1000kg	1100kg

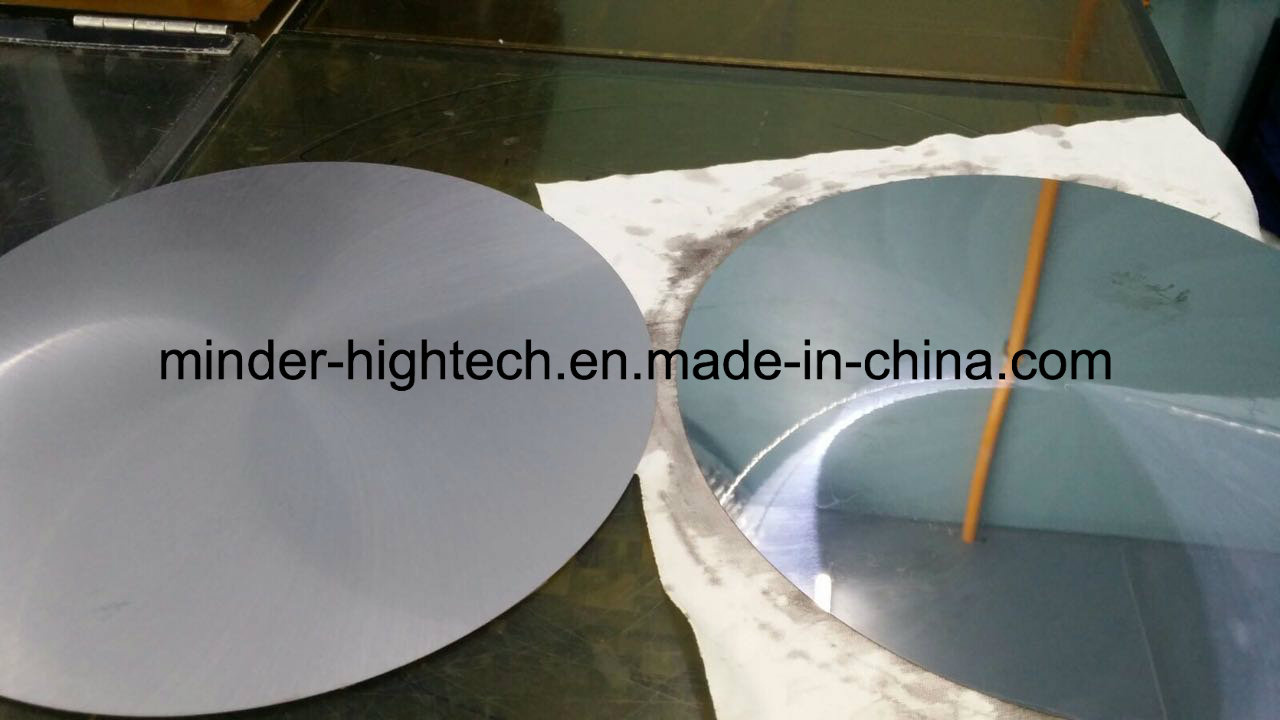

some grinding sample:

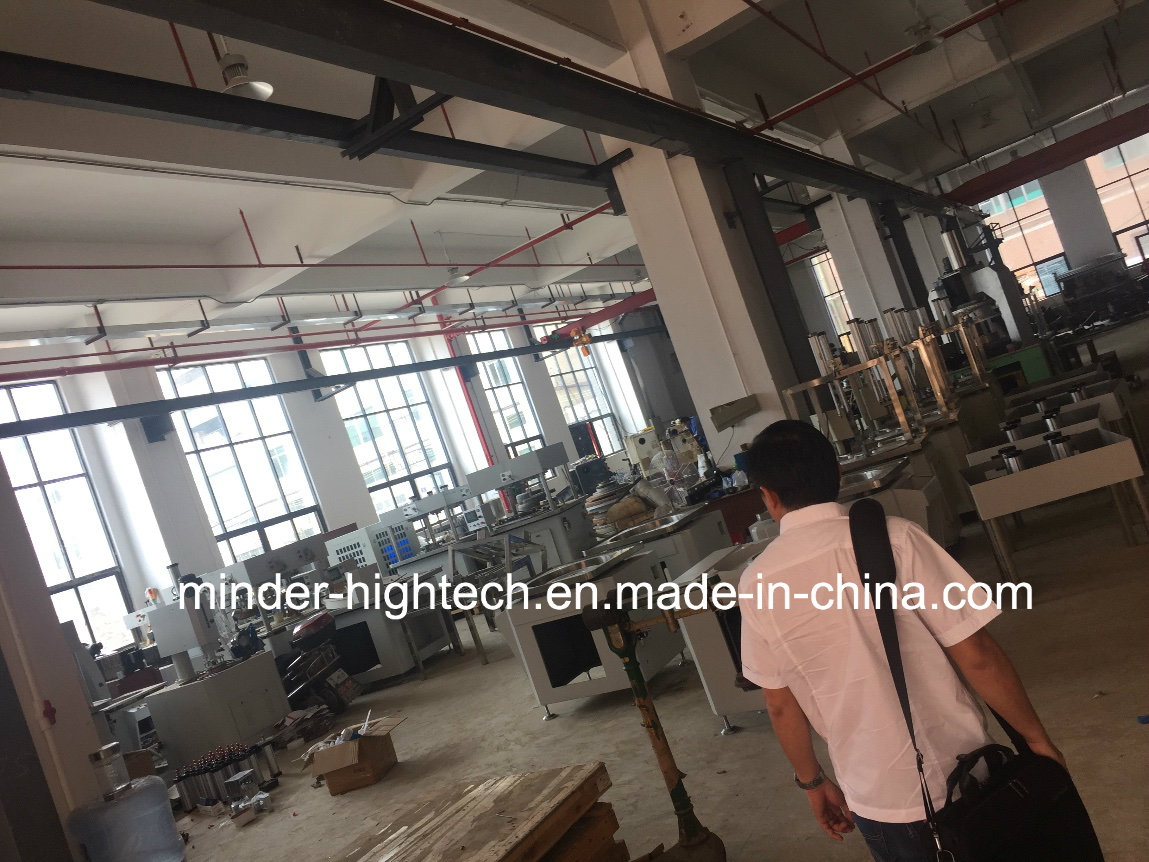

factory view:

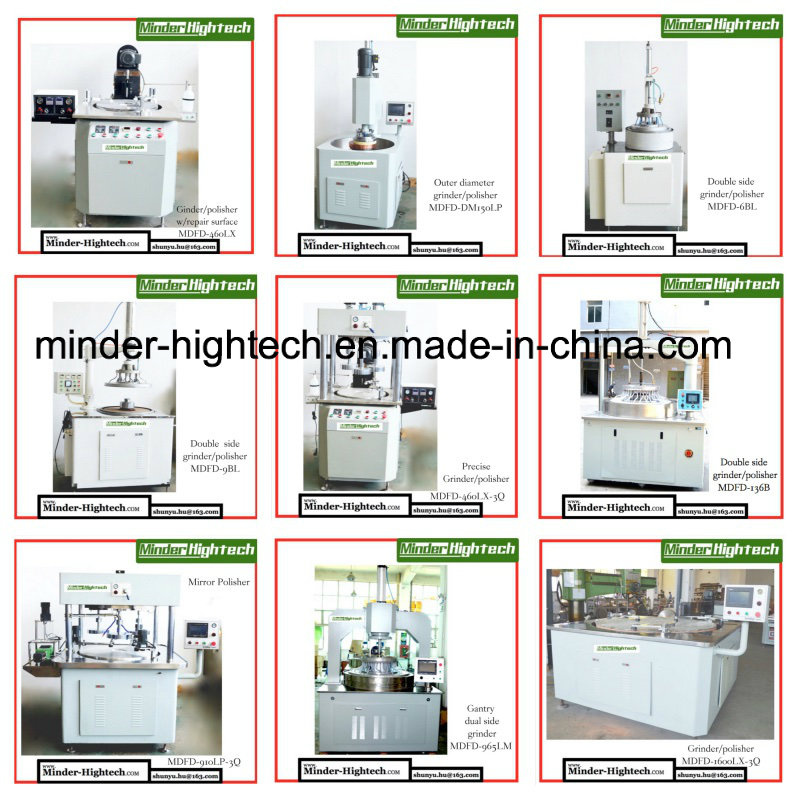

Other type of grinder and polisher:

-----------------------------------------------------------------------------------------------------------------------------------------------------------

guangzhou minder-hightech co.,ltd
contact:shunyu.hu

cellphone:0086-15813334038

Guangzhou Minder-Hightech Co., Ltd is focused on connection(welding).

We are specialized in most of the connection(welding) technics, the most application we have participated in are electronic component(resistance, capacitor, inductor), chip on board, automotive electronic accessories, cell phone, IC cards, motor armature commutator etc. By material, we have engaged in connecting the Aluminum, Copper, Brass, Aurum(gold), Platinum, Nickel, Enameled wire, etc.

Our product are classified into resistance spot welding, inverter seam welding, ultrasonic wire bonding, hot bar soldering, automatic TIN soldering, stud welding, all the product are with mature latest technology, high performance, high precision, and high reliability.

At the same time, we maintain a good relationship with the high school scientific research institution, we know the newest connection(welding) technology direction all over the world, committed to give out the best connection(welding) solution to our global customer.

We chose the most open and industrialized city-guangzhou-to be our base head place, to ensure the efficiency and rapidly response.

We company are fresh, but we have more than 20 years welding experience, these years, we proud of our growth with the famous company such as TPT, K&S, Bosch, Miyachi, Uniteck, Avio, Apollo etc.
