Double Side Grinder Polisher Mdfd-136b

Name: Double Side Grinder Polisher Mdfd-136b
Brand: all-electronics-online.com
SKU: 720075212
Availability: InStock
Rating: 4.9 (39 reviews)

Price:	US $ 1-57000/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MDFD-136B
Type:	Disc Grinder
Power Source:	Electricity
Material:	Panel
Working Style:	High-speed universal
Application:	Semiconductor

Product Description

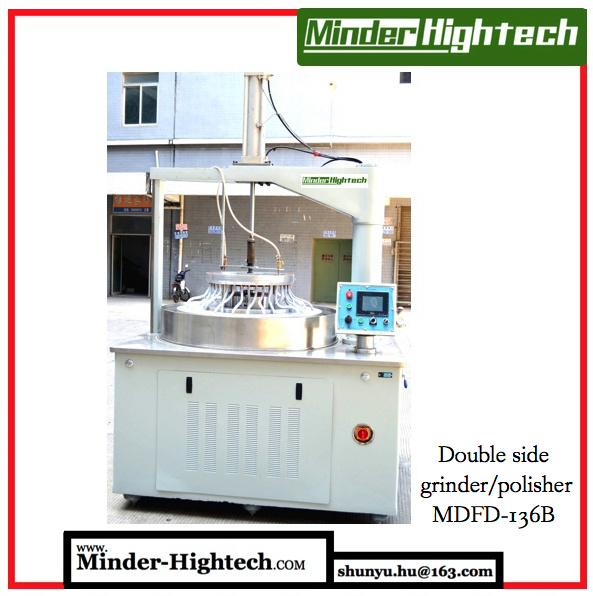

DOUBLE SIDE GRINDER POLISHER MDFD-136B

Application:

Double side grinding and polishing for high hardness,thin,and high precision product. metal or nonmetallic.

Like sapphire substrate, ceramic, optical glass, quartz crystal, silicon wafer,ceramic,wolfram plate, germanium plate.

Principle and character:

1, VFD speed control and full gear transmission, working very stable.

2, Can stepless adjust the pressure during "light pressure","middle pressure","heavy pressure","precise grinding" process, provide better grinding efficiency and grinding process.

3, Can adjust the lifting height of the gear ring.
4, Automatic lubrication device, lubricate the gear automatically.
5, Can storage 30 groups of files(including the pressure, speed, time, or cycle

number).
6, With lock cylinder, can easily lock the upper grinding disc.

Specification:

Grinding disc spec.	D965D38545	Lifting cylinder	D80*250mm
Planetary gear spec.	DP 12 Z=152 a=20o	End lock cylinder	D32*15mm
Planetary gear number	3<=N<=6	Main motor	Y132M-4 7.5kw
Workpiece Thickness b	0.2mm<= b <=20mm	Vice motor	Y90L-4 1.5kw
Best workpiece diameter	D125	Sand pump motor	250w
Lifting height of great ring	35mm	Dimension	170013502650Hmm
Lower grinding disc speed	0-50rpm	Weight	2700-3000 kg
Main cylinder

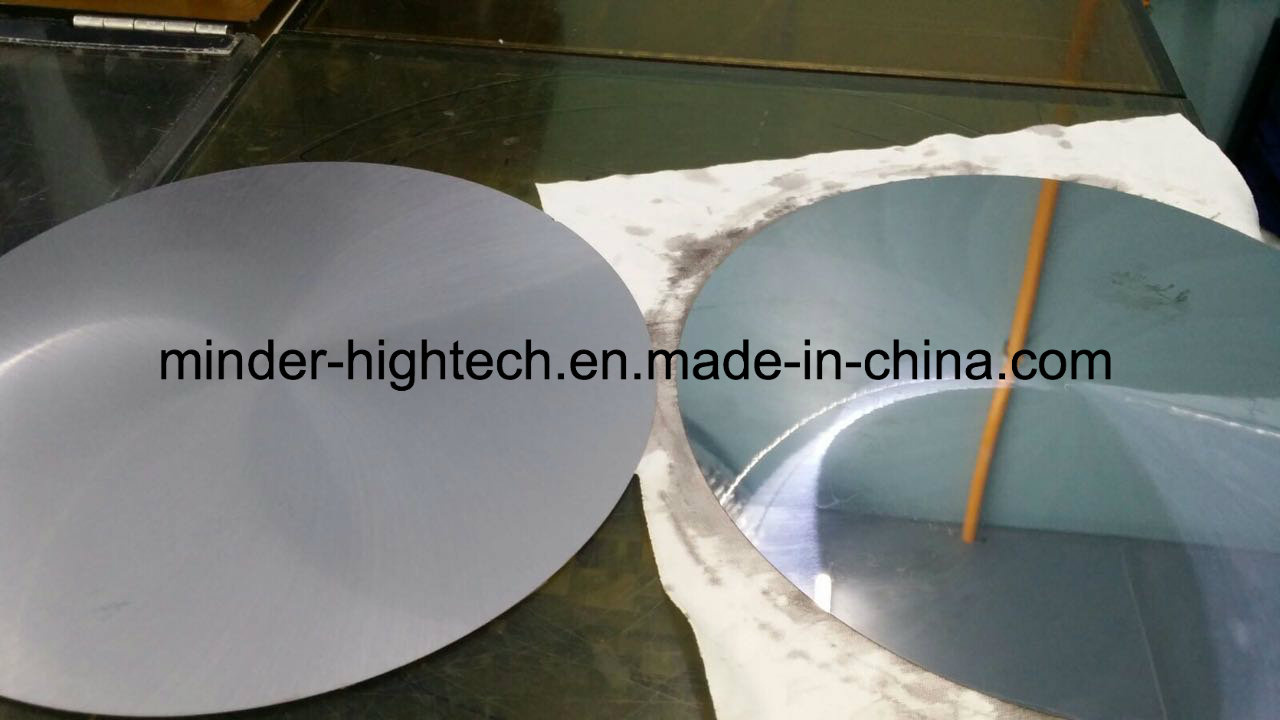

some grinding sample:

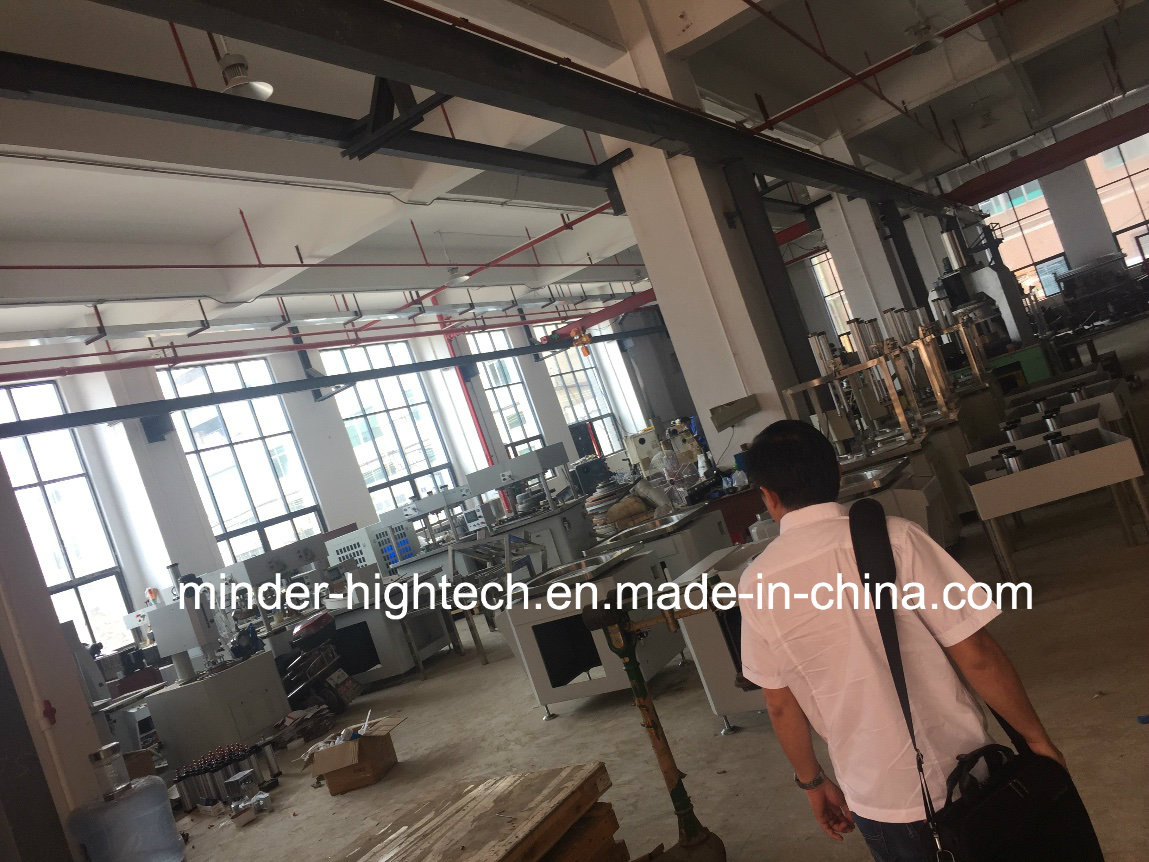

factory view:

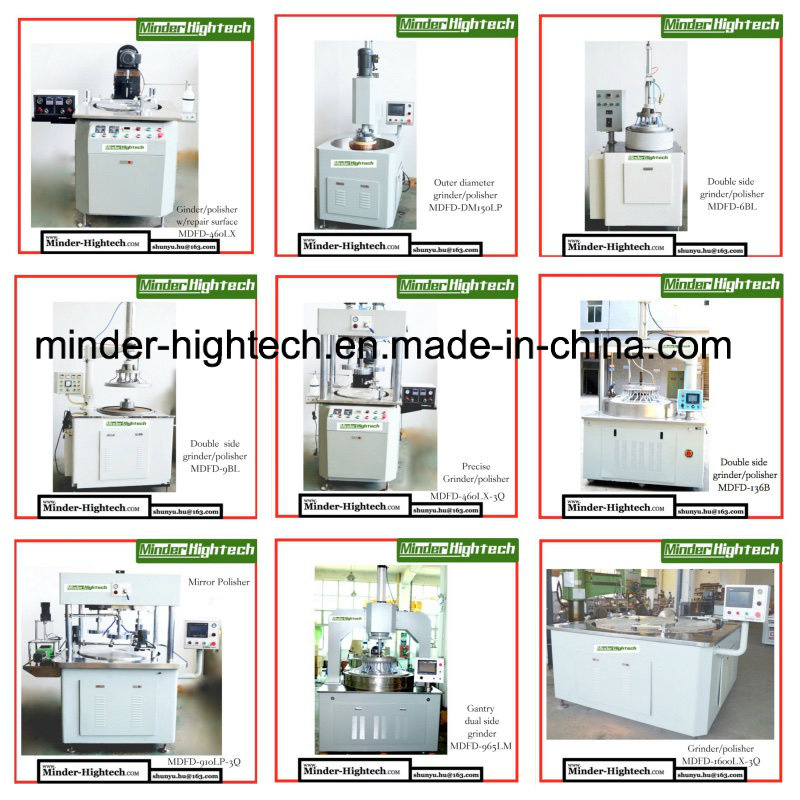

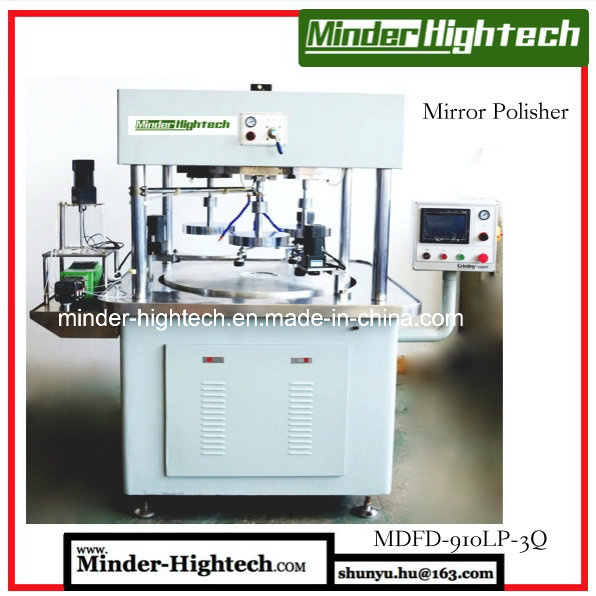

Other type of grinder and polisher:

-----------------------------------------------------------------------------------------------------------------------------------------------------------

guangzhou minder-hightech co.,ltd
contact:shunyu.hu

cellphone:0086-15813334038

Guangzhou Minder-Hightech Co., Ltd is focused on connection(welding).

We are specialized in most of the connection(welding) technics, the most application we have participated in are electronic component(resistance, capacitor, inductor), chip on board, automotive electronic accessories, cell phone, IC cards, motor armature commutator etc. By material, we have engaged in connecting the Aluminum, Copper, Brass, Aurum(gold), Platinum, Nickel, Enameled wire, etc.

Our product are classified into resistance spot welding, inverter seam welding, ultrasonic wire bonding, hot bar soldering, automatic TIN soldering, stud welding, all the product are with mature latest technology, high performance, high precision, and high reliability.

At the same time, we maintain a good relationship with the high school scientific research institution, we know the newest connection(welding) technology direction all over the world, committed to give out the best connection(welding) solution to our global customer.

We chose the most open and industrialized city-guangzhou-to be our base head place, to ensure the efficiency and rapidly response.

We company are fresh, but we have more than 20 years welding experience, these years, we proud of our growth with the famous company such as TPT, K&S, Bosch, Miyachi, Uniteck, Avio, Apollo etc.
