1 kHz or 2 kHz High Quality DC Current Medium-Frequency Resistance Welding Inverter

Name: 1 kHz or 2 kHz High Quality DC Current Medium-Frequency Resistance Welding Inverter
Brand: all-electronics-online.com
SKU: 838890725
Availability: InStock
Rating: 4.5 (46 reviews)

Price:	Negotiable/Set
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MD-06BL
Condition:	New
Application:	Switch Power Supply for Industrial Use
Type:	DC Current
Output Type:	Single
Warranty:	1 Year
Output Power:	>500W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Certification:	CE
Input Voltage:	3~380V

Product Description

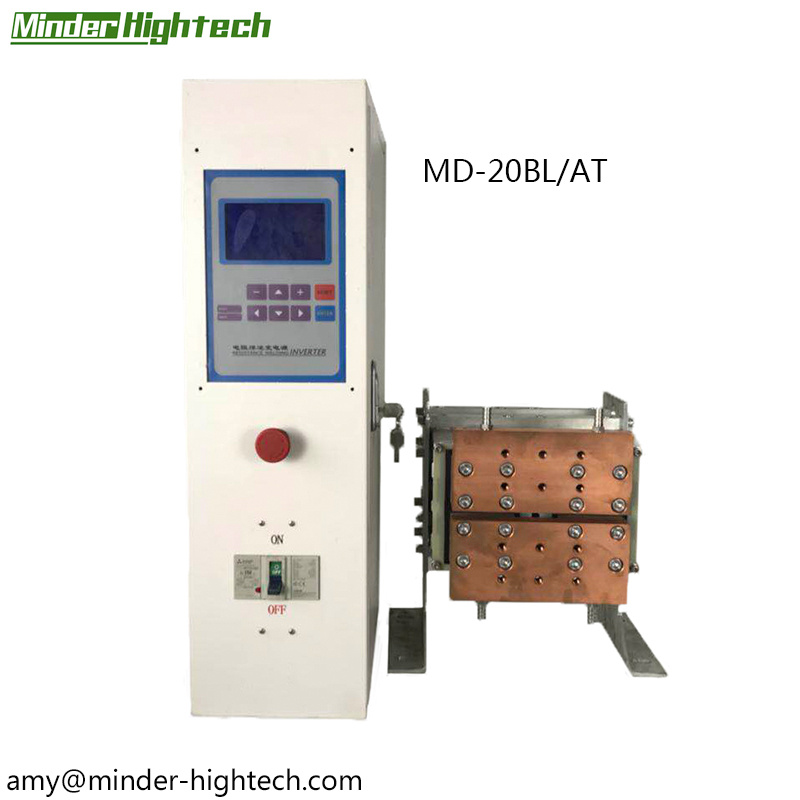

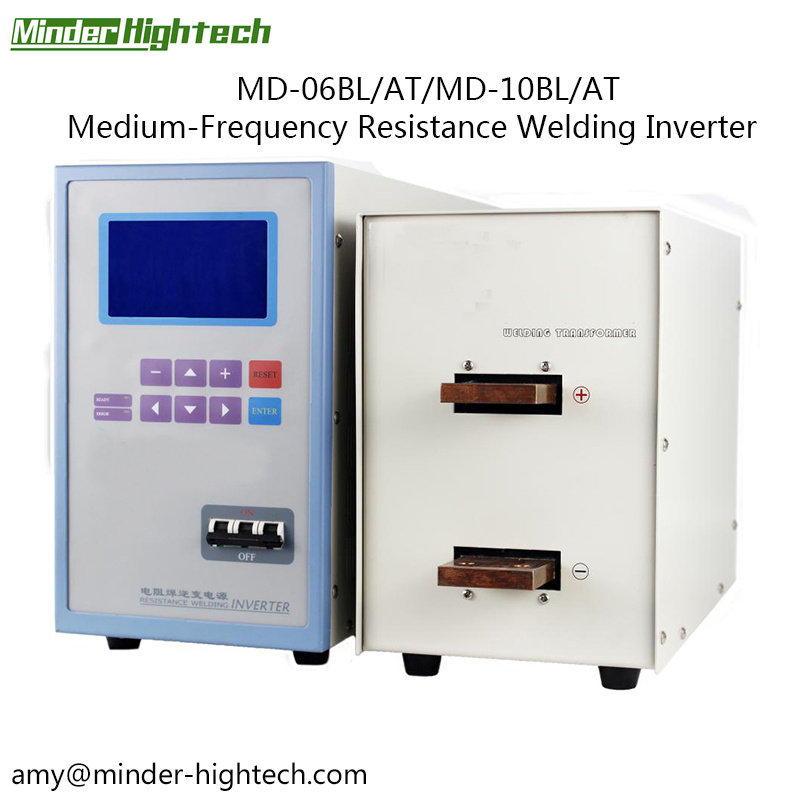

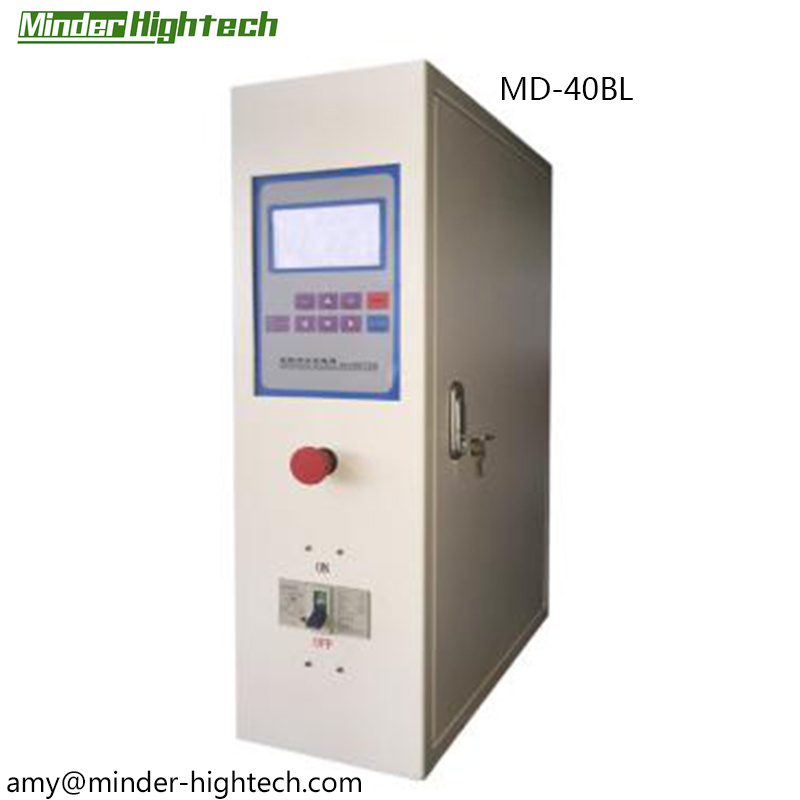

PRODUCT SHOW

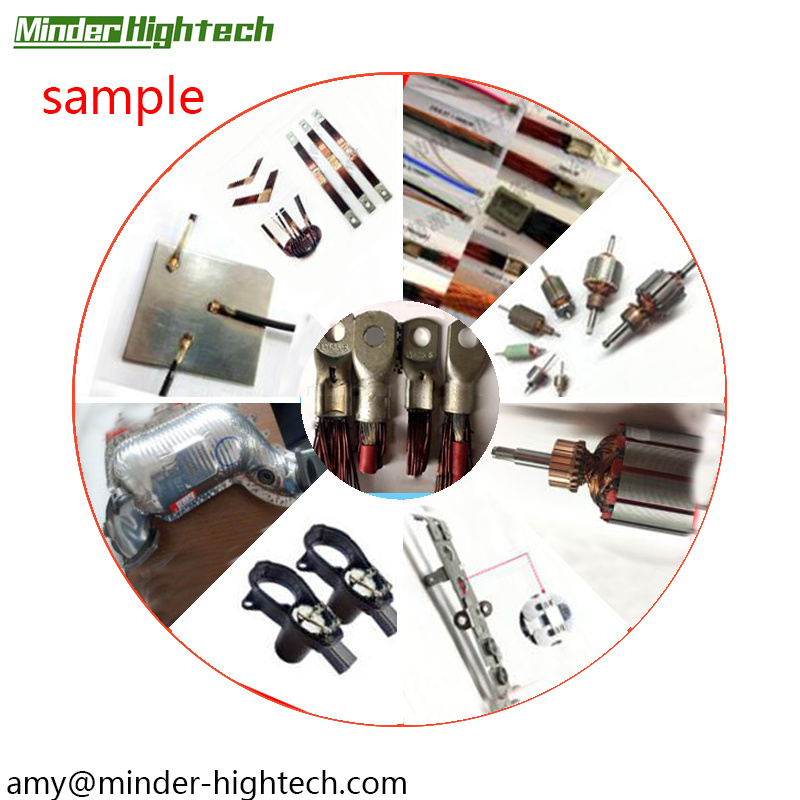

WELDING SAMPLES

FEATURES

1. 1 kHz or 2 kHz inverter, current and time controlled in 1 ms or 0.5 ms,

high current stability;

2. Three heating pulses with upslope and downslope control,

avoid spatter and ensure stable welding.

3. Monitor current, voltage and power to improve the welding consistency.

4. Fault diagnosis and protection for current, line voltage, temperature,

air pressure and cooling water.

5. Saving energy as comparing the common AC spot welder.

6. DC current output, high thermal efficiency, effectively prolonging the electrode life.

TECHNICAL PARAMETER

Type	MD-06BL/AT	MD-10BL/AT	MD-20BL/AT	MD-40BL/AT
Line voltage (V)	3~380V	3~380V	3~380V	3~380V
Rated capacity (kVA)	16	25	75	150
Max. output current (DCA)	6000	10000	20000	40000
Duty cycle (%)	10	10	10	10
Inverting frequency (kHz)	1.2	1.2	1.2	1.2
Control modes	Constant current, constant voltage, constant power, constant pulse width
Process stage	11	11	11	11
Welding pulses	3	3	3	3
Upslope and downslope	yes	yes	yes
schedules	20	20	20	20
Dimensions (LBH) (mm)	460222345 385200300	460222345 385200300	650210450 260160125	730210510 351270283
Weight (kg)	23.5/26.5	26/30	43/39	51.5/57.5

QUALIFICATION HONOR

If you need more further details about our machine, please feel free to contact us .

Guangzhou Minder-Hightech Co., Ltd is focused on connection(welding).

We are specialized in most of the connection(welding) technics, the most application we have participated in are electronic component(resistance, capacitor, inductor), chip on board, automotive electronic accessories, cell phone, IC cards, motor armature commutator etc. By material, we have engaged in connecting the Aluminum, Copper, Brass, Aurum(gold), Platinum, Nickel, Enameled wire, etc.

Our product are classified into resistance spot welding, inverter seam welding, ultrasonic wire bonding, hot bar soldering, automatic TIN soldering, stud welding, all the product are with mature latest technology, high performance, high precision, and high reliability.

At the same time, we maintain a good relationship with the high school scientific research institution, we know the newest connection(welding) technology direction all over the world, committed to give out the best connection(welding) solution to our global customer.

We chose the most open and industrialized city-guangzhou-to be our base head place, to ensure the efficiency and rapidly response.

We company are fresh, but we have more than 20 years welding experience, these years, we proud of our growth with the famous company such as TPT, K&S, Bosch, Miyachi, Uniteck, Avio, Apollo etc.
