4 Pairs Shield FTP CAT6 LAN Cable

Name: 4 Pairs Shield FTP CAT6 LAN Cable
Brand: all-electronics-online.com
SKU: 609305274
Availability: InStock
Rating: 4.5 (140 reviews)

Price:	Negotiable/Box
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Box
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	D175
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Category:	Cat5e/CAT6/Cat7 Cable
Gauge:	24/26/28 AWG Optional
Conductor Size:	0.50mm-0.51mm Bare Copper or CCA
No. Of Conductor:	8
Insulation:	HDPE
Jacket:	PVC,LSZH,PE
Approved:	ISO/IEC11801, ANSI/Tia/Eia-568b
Operating Temperature Range:	-20°c to 80 °c
Package:	Drum or Easy Pull Box
Certificate:	UL, RoHS
Application:	Submarine Cable
Conductor Material:	Copper
Cover Material:	PVC
Type:	Cat 6
Certification:	UL
Model:	UTP/FTP/SSTP
Brand:	Fulsan

Product Description

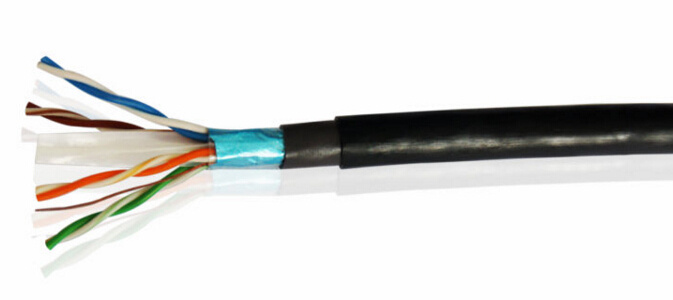

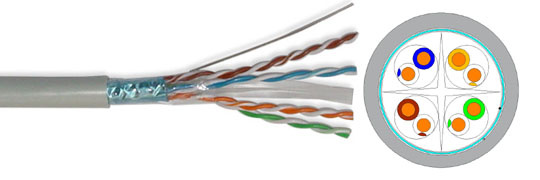

4 Pairs Shield FTP CAT6 LAN Cable

FTP cat6 lan cable

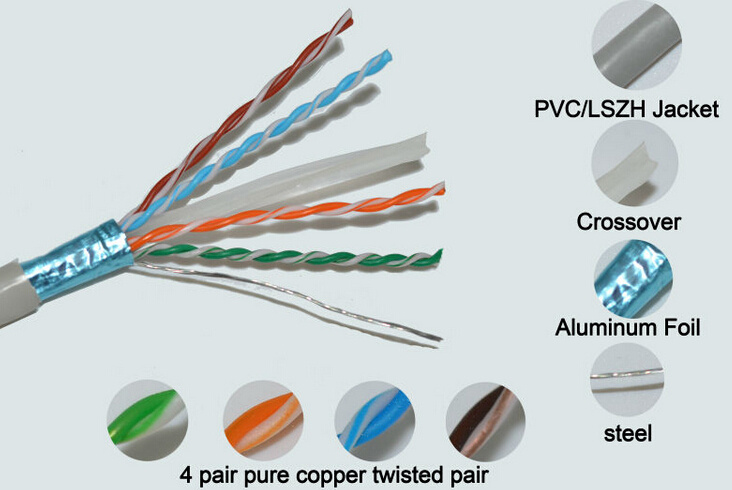

Structure:
Bare copper, PE insulation, FR PVC/LSOH PVC RoHS jacket
Standards:
ISO/IEC11801, ANSI/TIA/EIA-568B,

Application:
Used as work-station oution to the FD/IDF and other horizontal cabling, supporting TP-PMD Audio, integrated service digital network(ISDN), ATM 155Mbps, 1Gmbps TPDDI, Fast Ether-net etc.

Specifications
Conductor: 24AWG(0.50+/-0.05mm) Solid/stranded Bare Copper,CCA,CCAG,CCAU,CU,22/23/24/26AWG
Cabling : 4 twishted pairs cabled around a cross shaped central filler into the cable core.
Colour:grey,blue,red,yellow,green,black,white, also as customers requirements.
Pair Insulation:Polyethylene, 0.90+/-0.05mm HDPE
Outer Cable Diameter: 5.7 ± 0.2 mm
Sheat: 5.0+/-0.1mm PVC/PE/LSZH
Options:Jelly filled ,UV,FR,ROHS complied is available
Operating temperature: -20°C to +75°C

Usage: Network cabling
Certificate: UL, CE, CCC
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
