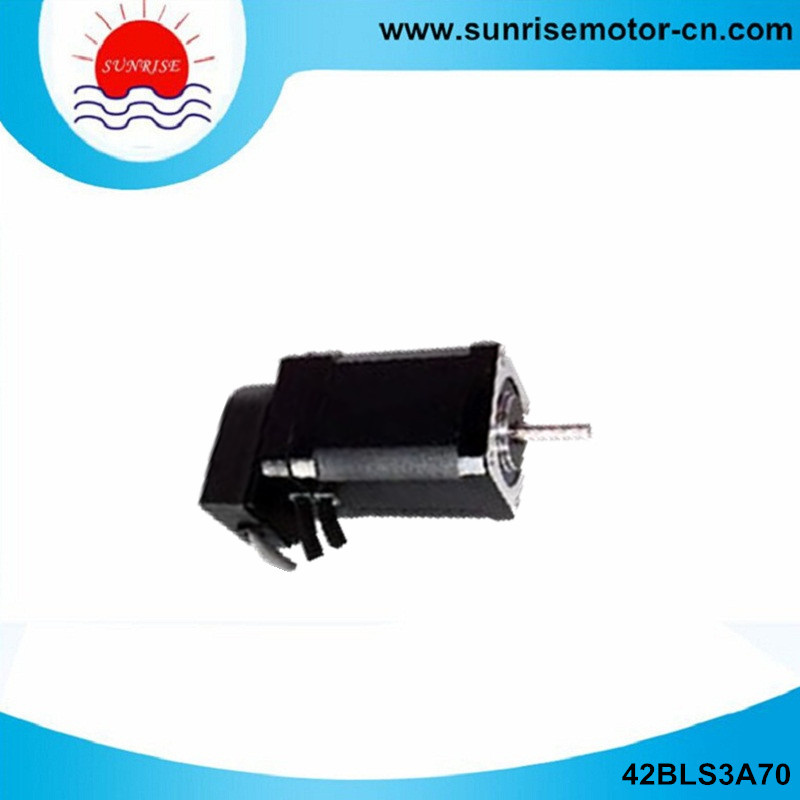

42bls3a70 36VDC 64W 0.2n. M 3000rpm Brushless DC Servo Motor

Name: 42bls3a70 36VDC 64W 0.2n. M 3000rpm Brushless DC Servo Motor
Brand: all-electronics-online.com
SKU: 725905595
Availability: InStock
Rating: 4.5 (147 reviews)

Price:	US $ 58.2-65.94/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	42BLS3A70
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	42bls3a70
Voltage:	36VDC
Current:	2.4A
Power:	64W
Rated Speed:	3000rpm
Rated Torque:	0.2n.M
Encoder:	1000CPR
Winding Class:	B
Weight:	0.55kg
Application:	Power Tools
Operating Speed:	High Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Type:	BLDC Servo
Certification:	SGS
Brand:	Sunrise Motor

Product Description

42BLS Brushless DC Servo motor
NEMA 17

MODEL: 42BLS3A70
VOLTAGE: 36V
POWER: 64W
SPEED: 3000RPM
CURRENT: 2.4A
TORQUE: 0.2N. M
ENCODER: 1000CPR
WINDING CLASS: B

			42BL3A45		42BL3A50		42BL3A70		42BL3A90
Specification		Unit	-A	-B	-A	-B	-A	-B	-A	-B
Rated voltage	U	V	+24	+36	+24	+36	+24	+36	+24	+36
Rated out power	P out	W	15.7	15.7	32	32	64	64	95	95
Rated speed	n N	rpm	3000
Rated current	I N	A	0.82	0.54	1.8	1.2	3.6	2.4	5.4	3.6
Rated torque	T N	N.m	0.05	0.05	0.1	0.1	0.2	0.2	0.3	0.3
Peak current	I P	A	2.5	1.6	5.4	3.6	10.8	7.2	16.2	10.8
Peak torque	T p	N.m	0.15	0.15	0.3	0.3	0.6	0.6	0.9	0.9
Voltage constant	K E	V/ Krpm	6.3	9.47	6.3	9.47	6.3	9.47	6.3	9.47
Torque constant	K T	N.m/A	0.06	0.09	0.06	0.09	0.06	0.09	0.06	0.09
Rotor inertia	J	Kg.cm 2	0.13	0.13	0.26	0.26	0.39	0.39	0.52	0.52
Number of poles	N P		8 8 8 8 8 8 8 8
Encoder		CPR	1000
Winding class			B B B B B B B B
Motor weight		Kg	0.3	0.3	0.35	0.35	0.55	0.55	0.75	0.75

Figure:

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
