42bls3a90 24VDC 95W 0.3n. M 3000rpm NEMA17 Servo Motor

Name: 42bls3a90 24VDC 95W 0.3n. M 3000rpm NEMA17 Servo Motor
Brand: all-electronics-online.com
SKU: 726004925
Availability: InStock
Rating: 5 (71 reviews)

Price:	US $ 64.06-73.63/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	42BLS3A90
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	42bls3a90
Voltage:	24VDC
Current:	5.4A
Power:	95W
Rated Speed:	3000rpm
Rated Torque:	0.3n.M
Encoder:	1000CPR
Winding Class:	B
Weight:	0.75kg
Application:	Household Appliances
Operating Speed:	High Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Type:	BLDC Servo Motor
Certification:	SGS
Brand:	Sunrise Motor

Product Description

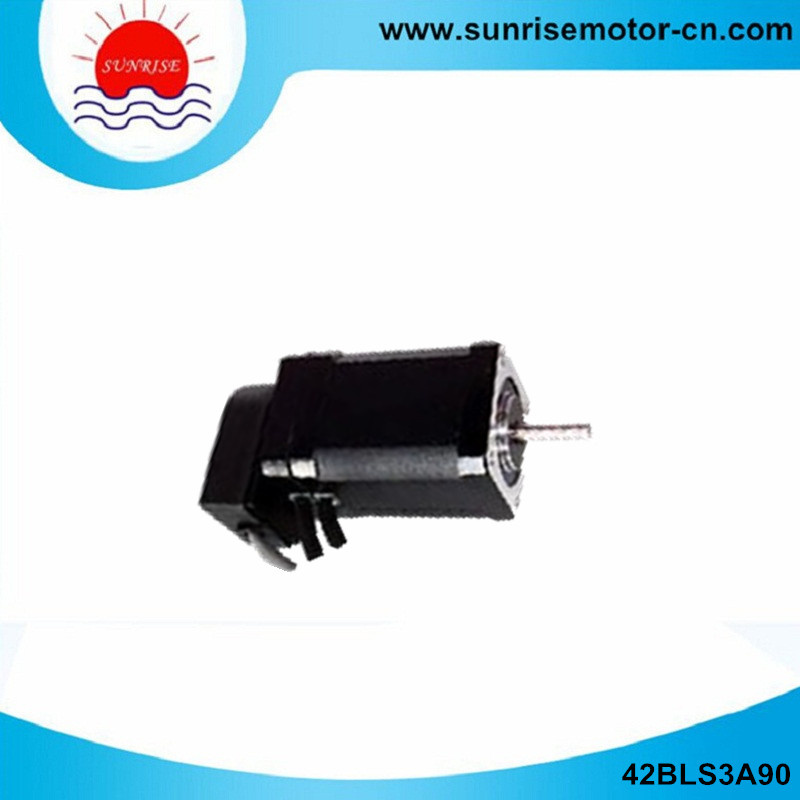

42BLS Brushless DC Servo Motor
NEMA 17

MODEL: 42BLS3A90
VOLTAGE: 24V,
POWER: 95W
SPEED: 3000RPM
CURRENT: 5.4A
TORQUE: 0.3N. M
ENCODER: 1000CPR
WINDING CLASS: B

We can produce motor according to customer's requirements.

			42BLS3A45		42BLS3A50		42BLS3A70		42BLS3A90
Specification		Unit	-A	-B	-A	-B	-A	-B	-A	-B
Rated voltage	U	V	+24	+36	+24	+36	+24	+36	+24	+36
Rated out power	P out	W	15.7	15.7	32	32	64	64	95	95
Rated speed	n N	rpm	3000
Rated current	I N	A	0.82	0.54	1.8	1.2	3.6	2.4	5.4	3.6
Rated torque	T N	N.m	0.05	0.05	0.1	0.1	0.2	0.2	0.3	0.3
Peak current	I P	A	2.5	1.6	5.4	3.6	10.8	7.2	16.2	10.8
Peak torque	T p	N.m	0.15	0.15	0.3	0.3	0.6	0.6	0.9	0.9
Voltage constant	K E	V/ Krpm	6.3	9.47	6.3	9.47	6.3	9.47	6.3	9.47
Torque constant	K T	N.m/A	0.06	0.09	0.06	0.09	0.06	0.09	0.06	0.09
Rotor inertia	J	Kg.cm 2	0.13	0.13	0.26	0.26	0.39	0.39	0.52	0.52
Number of poles	N P		8 8 8 8 8 8 8 8
Encoder		CPR	1000
Winding class			B B B B B B B B
Motor weight		Kg	0.3	0.3	0.35	0.35	0.55	0.55	0.75	0.75

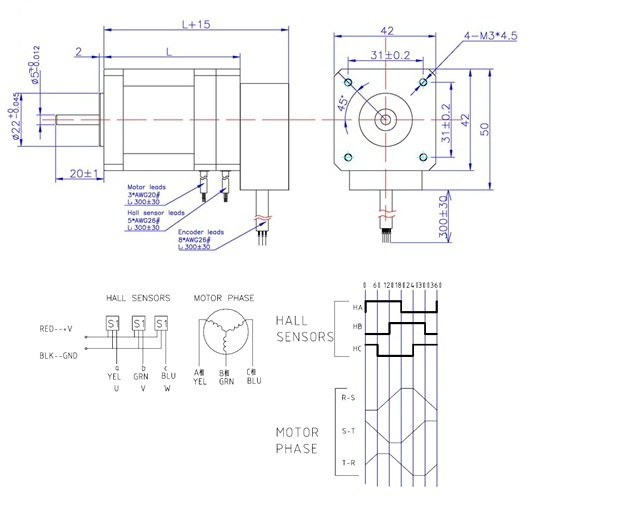

Figure:

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
