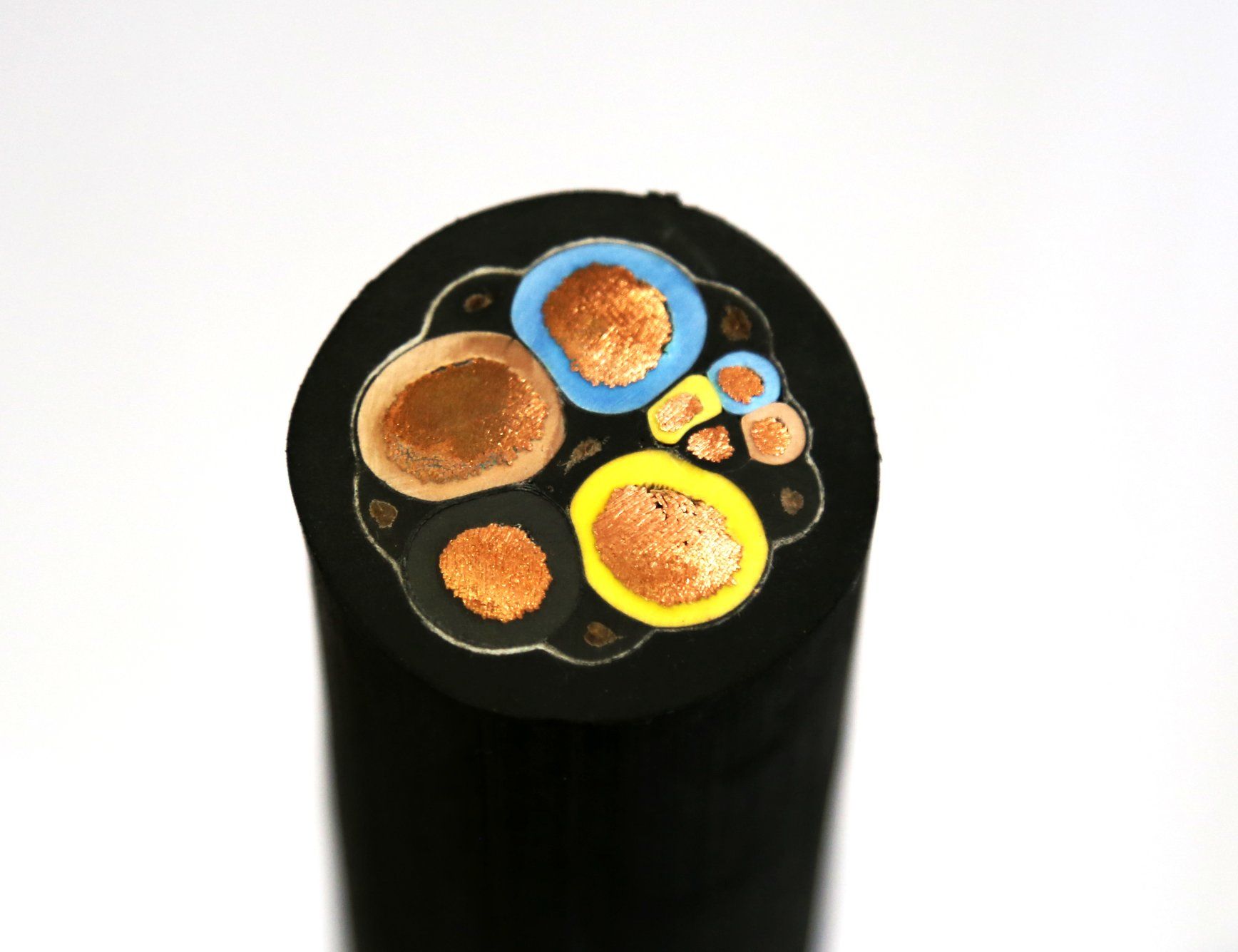

450/750V General Rubber Sheathed Flexible Cables

Name: 450/750V General Rubber Sheathed Flexible Cables
Brand: all-electronics-online.com
SKU: 822888525
Availability: InStock
Rating: 4.9 (70 reviews)

Price:	US $ 4/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCW, YC
Standards:	Accord with The Request
Type:	Insulated
Conductor Type:	Stranded
Application:	Heating
Conductor Material:	Copper
Insulation Material:	Rubber
Certification:	SABS
Sheath Material:	Rubber
Brand:	Jiapu

Product Description

SpecificationsMulti-core General Rubber Sheath Flexible Cable IEC 60245
YZ model rated voltage Uo/U is 300/500V, YC model is 450/750V
rubber

Multi-core General Rubber Sheath Flexible Cable IEC 60245
Detailed Product Description
1. Usage:Rubber sheath cable is suitable for rated AC vo1tage 450/750V or below domestic applies, power-operated tools and various portable electric Equipments
2.       Working temperature:
1)     YZ model rated voltage Uo/U is 300/500V, YC model is 450/750V
    2)    Long time allow working temperature of wire core is not more than 650C
    3)   W model cable has the property of durability and suitable for outdoor touching   of  greasy dirt
    4)     ZR model cable has the property of fire-resistance
3.       Model name and usage:

Model	Name	Rated Voltage(V)	Section Area(mm2)	No. of Cores	Usage
YQ,YQW	Light model rubber sheath flexible cable	300/500	0.30.5	2,3	Used for light portable electric equipment and tools
IEC60245-53YZ	Middle model rubber sheath flexible cable	300/500	0.75--6	2,3,4,5	Used for various portable electric equipment and tools
IEC60245-57YZW	Middle model rubber sheath flexible cable	300/500	0.75--6	2,3,4,5	Used for various portable electric equipment and tools
YC	Heavy model rubber sheath flexible cable	450/750	1.5--400	1	Used for various portable electric equipment which can bear large mechanical force effect
			1.5--95	2
			1.5--150	3
IEC60245-66YCW			1.5--150	4
			2.5150 + 1.5--50	3+1
			1.5--25	5

Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.

The main products are as follows:

Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)

Aerial Bundled Cable 1kV-35kV (ABC Cable)

PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable

Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable

Welding Cable, Control Cable, Rubber Sheathed Cable

Fiber Optic Cable (OPGW, ADSS, etc. )

Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )

We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.

We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
