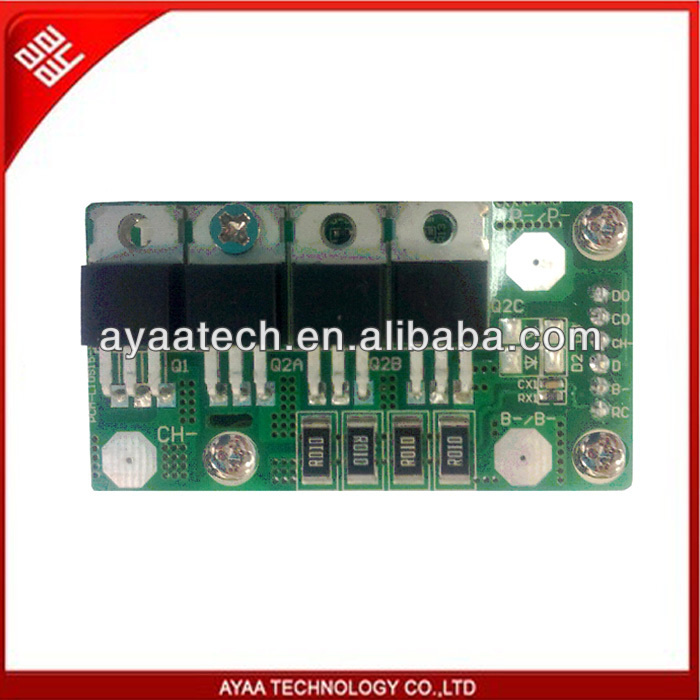

48.1 (13S) Li-ion Battery Pack PCM/BMS

Name: 48.1 (13S) Li-ion Battery Pack PCM/BMS
Brand: all-electronics-online.com
SKU: 737854225
Availability: InStock
Rating: 4.5 (70 reviews)

Price:	US $ 0.3-0.6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCM-L13S15-910 13S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Green
Size:	L60W3917mm
Base Material:	FR-4
Mode Of Production:	SMT
Metal Coating:	Copper

Product Description

Ayaa have three main divisions related to portable power supply:
1. PCM/BMS For Li-ion/Li-polymer/Lifepo4 battery pack
2. Customized Assembly battery packs with our high quality PCM/BMS
3. Matching Charger for Lithium/Li-ion/Li-po/Lifepo4 battery pack
48.1 (13S) Li-ion Battery Pack PCM/BMS
Max. Continuous charging current: 5A
Over current detection current: 60± 10A
Dimension: L60*W39*17mm

AYAA TECHNOLOGY

Protection Circuit Module Specification For 48.1V(13S)Lithium Battery Pack

Model: PCM-L13S15-910(13S)

No.

Test Item

Criterion

Voltage

Charging voltage(compliance voltage)

DC:54.6V CC/CV

Balance voltage for single cell

Current

Balance current for single cell

Current consumption for single cell

≤ 20 μ A

Maximal continuous charging current

Maximal continuous Discharging current

15A

Over charge Protection (single cell)

Over charge detection voltage

4.20±0.025V

Over charge detection delay time

0.5S_2S

Over charge release voltage

4.10±0.025V

Over discharge protection (single cell)

Over discharge detection voltage

2.80±0.05V

Over discharge detection delay time

10mS_200mS

Over discharge release voltage

2.9±0.05V

Over current protection

Over current detection voltage

0.15±0.015V

Over current detection current

60±10A

Detection delay time

5ms_20ms

Release condition

Cut load, Auto Recovery

Short protection

Detection condition

Exterior short circuit

Detection delay time

200-500us

Release condition

Cut load, Auto Recovery

Resistance

Protection circuitry(MOSFET)

≤ 30m Ω

Temperature

Operating Temperature Range

-40 ~ +85 °C

Storage Temperature Range

-40 ~ +125 °C

AYAA TECHNOLOGY Co., Ltd has 11 years experience in the design, engineering and service of all kinds of safety board PCM/BMS for Li-ion (Lithium ion) and Li- Po (Lithium Polymer) batteries, battery pack, also different types of chargers.

We are dedicated to utilize extensive knowledge and expertise of cells and battery pack build in order to provide the most innovative, effective and economical battery solutions. As a leader of safety board, worldwidely providing battery packs for different devices which are used in the industry and households - power tools, medical equipment, emergency and evacuation lighting, energy storage station, navigation systems for cars, , GPS devices, golf buggy, e-bikes and etc.

We offers free technical advise on battery selection and pack design and has extensive technical backup. AYAA has its own sample verification centre with state of the art welding and manufacturing equipment. We has no minimum quantities on battery pack builds, and has a pricing structure to recognize production runs., As a conformity company by ISO9001, We take quality as business soul, all products will be 100% strictly checked by our QC person, , Care is taken during every process from material checking, assembling, test and package, customer satisfactory always powerful for our continuously improvements.

Meet us, meet reliability, meet our mutual development.

Why choose us?

• We have excellent specialists and equipment in the field of emergency power supply and in particular in the field of batteries.

• Only here you will find a very good balance between price, quality and warranty of the products and services

• We give free advices to the clients about the quality of the products and how their operation throughout their life cycle

• We have friendly and professional sales always standby for all your questions.

What makes us better than others?

• We give a guarantee for the services we provide

• We use only quality materials and specialized machine for spot welding, charging and test devices

• We have 11 years experience in the industry and numerous regular customers from worldwide

• We fulfill orders in agreed terms.

You can trust us!
