| Prod Model: |
Pure Sine Wave Inverter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Metal |
Product Description
2000W Pure Sine Wave Inverter1. Specification1. Pure sine wave output: Relative to the square wave or modified sine wave(step wave), it has a strong effert in loading or load capacity.
2. Available with capacitive load, inductive load and any other type of general -purpose AC load, if it runs a refrigerator, televison or radio equipment, there would be no interference and noise and will not affect the load equipment performance and life.
3. High Stability: Since it has over voltage, under voltage, overload, overheating, short circuit, reverse and improved protection, stability of the system.
4. Digital display: Can display battery voltage and the AC output voltage in a visual way.
5. Digital intelligent control: The core device is controlled by a powerful microcontroller, making the external circuit structure being simple, control being flexible and control strategy being powerful, thus ensuring excellent performance and stability
6. Maxium 2000w continuous output and 4000w surge power. With USB output.
| Machine Model | B12P2000-1 | B24P2000-1 | B48P2000-1 | B12P2000-2 | B24P2000-2 | B48P2000-2 |
| Output power | 2000W |
| Peak power | 4000W |
| Input voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
| Output voltage | 100VAC or 110VAC or 120VAC±5% | 220VAC or 230VAC or 240VAC±5% |
| No-load current(<) | 1.2A | 0.5A | 0.2A | 1.2A | 0.5A | 0.2A |
| Output frequency | 50Hz±0.5Hz or 60Hz+±0.5Hz |
| Output waveform | Pure sine ware |
| Waveform distortion | THD<3%(Linear load) |
| USB | 5V 1A |
| Output efficiency | A maximum of 94% |
| Input voltage range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V |
| Undervoltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V |
| Undervoltage protection | 10±0.5V | 20±0.5V | 40±1V | 10±0.5V | 20±0.5V | 40±1V |
| Overvoltage protection | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V |
| Voltage recovery | 13±0.5V | 24±0.5V | 48±1V | 13±0.5V | 24±0.5V | 48±0.5V |
| Overvoltage recovery | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | 14.8V±0.5V | 29.5V±0.5V | 59V±0.5V |
| Protection function | Undervoltage/Overvoltage | LED red light,alarm,automatic recovery |
| Over load | LED red light, alarm, lock |
| Over-temperature | LED red light,alarm,automatic recovery |
| Short circuit | LED red light,alarm,automatic recovery |
| Input reverse | Doides or MOS transistor |
| Operating ambient temperature | -10ºC-+60ºC |
| Storage ambient temperature | -30ºC-+70ºC |
| Product size(mm) | 305*169*86 |
| Net weight(KG) | 4.2 |
| QTY/CNT | 4 pieces |
| Package size(mm) | 430*430*320 |
| Warranty | One year |
| Start | Bipolar soft-start |
| Cooling | Temperature Controlled Fan |

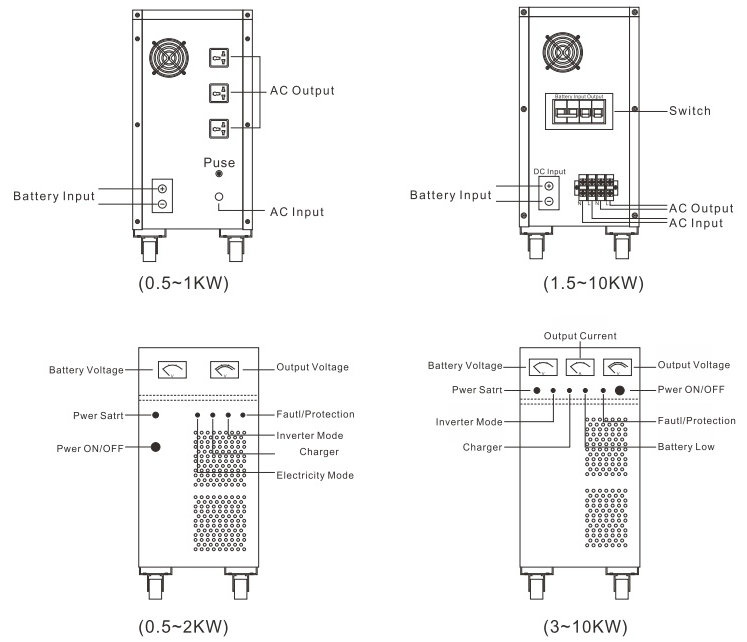

2. Structure Diagram
3. Company ProfileChangan Group Co., Ltd, Established in 1987, comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 30years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,
Contactor, Relay, Switch, Solar Inverter etc..
1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Europe, South America, Mid-east and Africa Market.
Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.
Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.
All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".
We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
