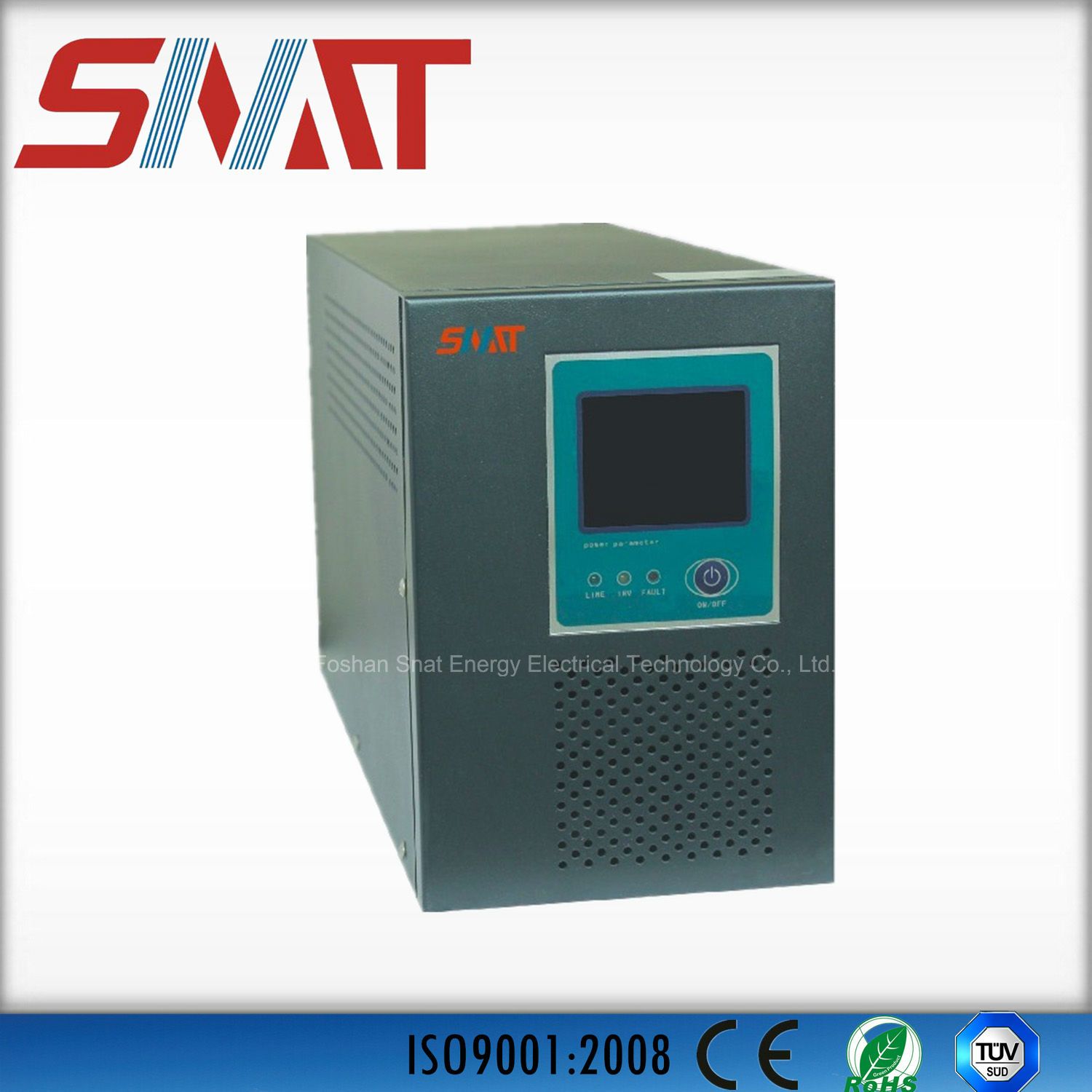

500W Pure Sine Wave Power Inverter for UPS

Prod Model:	FI-500W-12v/24v48v
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Snat
Pure Sine Wave Inverter:	300W-5000W
Work Time:	Supply Power Day and Night with Battery
Sample Order:	Accept
Accessory:	Controller, Inverter, Battery.Power System
Protection:	Shirt-Cuirt, High/Low Voltage, Overload
Export Markets:	Golbal
Phase:	Single
Power Source:	Solar Power
Application:	Home, Industrial, Commercial

Product Description

500W Pure Sine Wave Power Inverter for UPS

Product overview

Product applies to different type of loads because of its full digital design and real pure sine wave output, with power-frequency and design and highly stable output voltage and frequency, it can operate continuously for a long time, thus it can avoids the disadvantages of direct use of the mains supply, such as interruption of power supply, voltage instability, noise and lightning attacks and the disadvantage of short power supply time of small inverter supplies, guaranteeing continuous and reliable operation for electrical equipment, sine wave inverter supplier are the best guarantee for the safe and reliable operation of systems
Product is now widely used in china telecom, China Mobile, China Unicom, aerospace railways financial management, office automation industrial automatic control, medical health, military scientific research

Main features
Excellent performance because of an MCU intelligent control technology a wide range of applicable loads because of power-frequency transformer design and pure sine wave AC output
Personalized digital communication via an intelligent RS232 interface a wide range, high accuracy and full automatic voltage stabilization
Overall protection functions (overload protection, short circuit protection, overvoltage protection, under voltage protection and over temperature protection)
Simple LEDs and a LCD for visualization of operation status of the equipment
Use with generators because of high adaptability to power grids
A longer battery life because of intelligent battery management and overcharge protection


Model-FIH	0.3kW
Rated power	300W
DC voltage	12/24/48V DC
Input voltage	160-265V AC
Input frequency	45-65Hz
Output voltage	220V AC ±5%
Output frequency	50Hz±1%
Switching time	5m seconds
Charge current	Maximum 15A
Inverter output protection	Input overvoltage/under voltage protection, DC under voltage protection, peak surge protection, over load protection 100-120%, 30 seconds >120%, 100m seconds 150%, 50m seconds output short circuit<150μ seconds
Noise	<45dB
Ambient temperature for operation	0 to 40°C
Ambient temperature for storage	-15 to +15
Relative humidity for operation/storage	0-90% RH (no condensation)
Altitude for operation	0-3000m
Attitude for storage	0-15000m
product  dimensions	370*122*188
pcking dimensions	445*195*260
Net weight/gross weight	7.2*8.5

Warranty:
Quality warranty for 1 year;Parts will be shipped for free during warranty period.

Delivery time:
Stick to contract.

Concurrently engaged in relative solar power system products such as solar panel, gel battery, sealed lead acid battery, Combiner box, etc

Accept special design requirements.
