Yueqing Langir Electric Co., Ltd. >> 55.02 55.04 General Purpose Relay

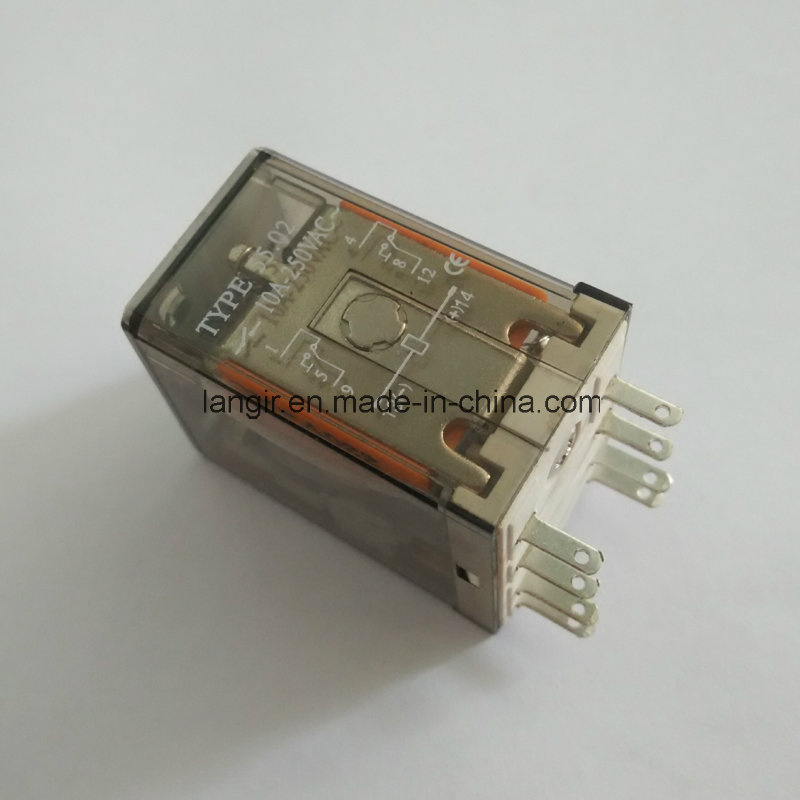

55.02 55.04 General Purpose Relay

55.02 55.04 General Purpose Relay
Price: US $ 1/Piece
Min Order: 10/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: 55.02
Contact Form: 2z, 2h, 2D 4z, 4h, 4D
Rated Coil Power: 0.9W 1.2va
Terminal Type: PCB and Socket

Product Description

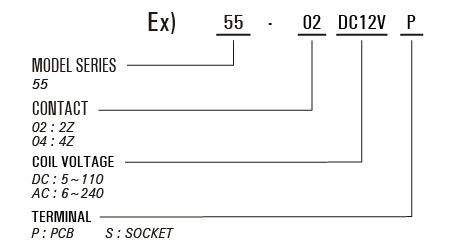

Order Code

Technical Specification

Insulation Resistance≥500mΩ (500VDC)
Dielectric strengthBetween coil and contacts ≥1500VAC1min
Between open contacts ≥1000VAC1min
Between contacts of different poles ≥1500VAC1min
Operate/ Release time≤25ms/ 25ms
Terminal TypePCB and Socket

Contact Specification

Contact Form2Z, 2H, 2D
4Z, 4H, 4D
Contact Resistance≤50mΩ (1A 6VDC)
Contact MaterialAgCdO, AgSnO2
Contact Capacity55.02: 10A 250VAC/ 30VDC
55.04: 5A 250VAC/ 30VDC

Coil Specification

Rated Coil Power0.9W 1.2VA

Coil Date

Nominal voltage
VDC
Operate voltage
VDC
Release voltage
VDC
Coil resistance
Ω±10%
Nominal voltage
VAC
Operate voltage
VAC
Release voltage
VAC
Coil resistance
Ω±10%
54.00.502864.801.8012
64.80.6040129.603.6042
129.61.201602419.207.20168
2419.22.406404838.414.40675
4838.44.802560 12096.036.003500
11088.011.0012100220/240176.066.0014000/16500

Dimension

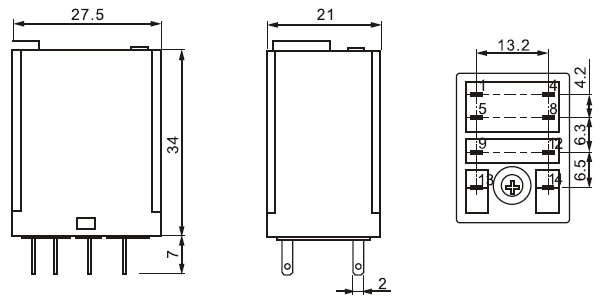

55.02

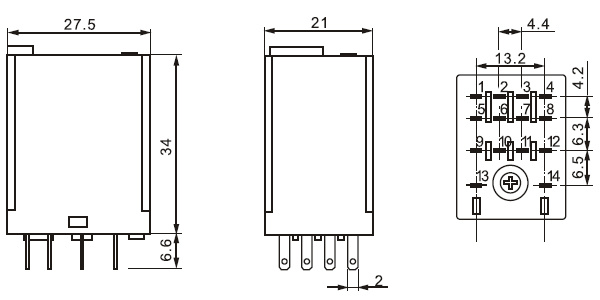

55.04

Wiring Diagram

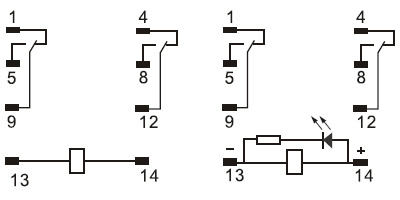

5502

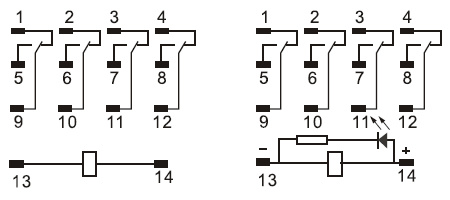

5504


Profile
