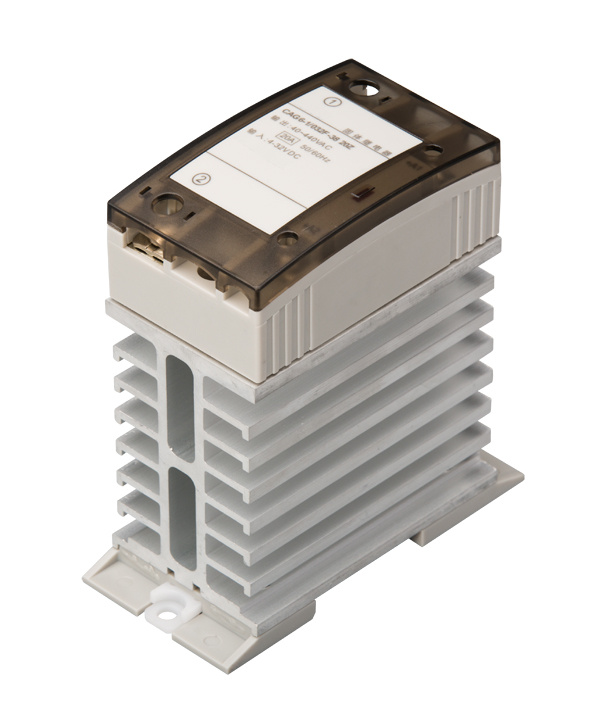

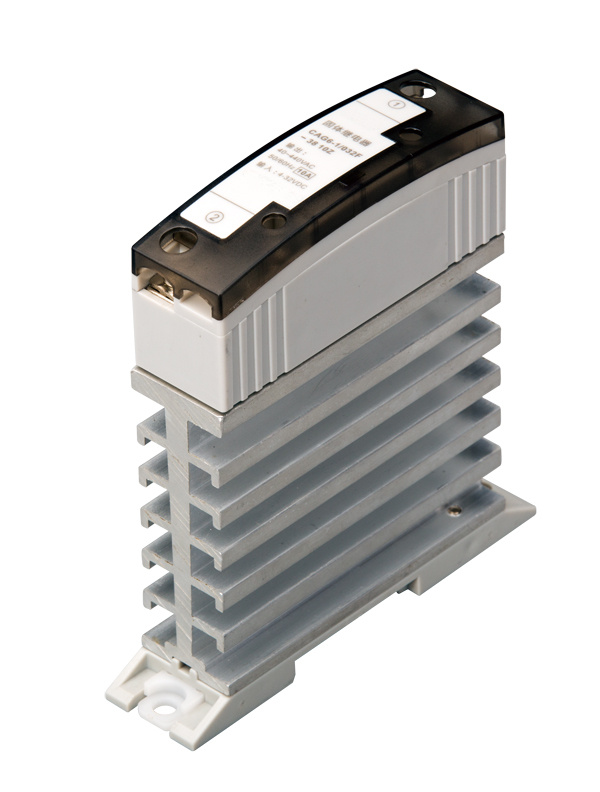

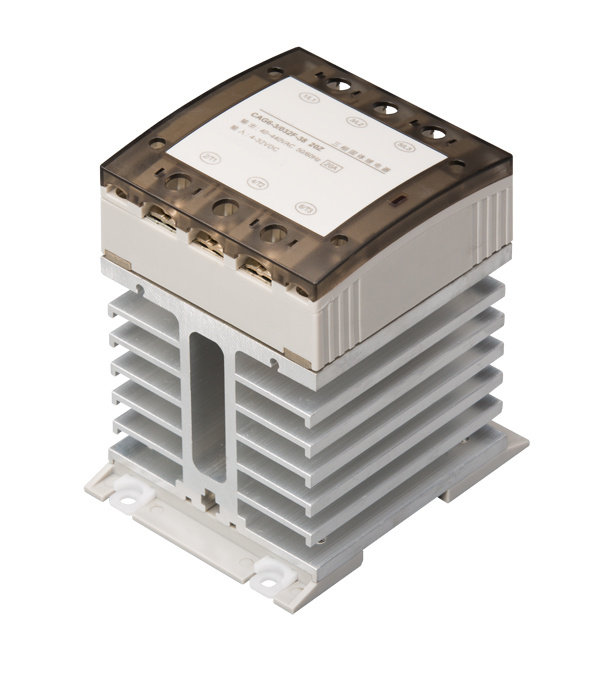

Cag6-1 Solid State Relay with High Quality

Cag6-1 Solid State Relay with High Quality
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T,D/P,Western Union,Paypal
Prod Model: CAG6-1

Product Description

ModelCAG6-1/032F-22,38CAG6-1/250F-22,38CAG6-3/032F-38CAG6-3/250F-38
Dimension(mm)100*48*107100*48*107115*80*140115*80*140
Contrl voltage(input)032:4-32VDC250:90-250VAC032:4-32VDC250:90-250VAC
Control current5-20mA5-20mA5-25mA5-25mA
Turn-on voltage4VDC90VAC4VDC90VAC
Turn-off voltage2VDC 10VAC2VDC10VAC
Load voltage(output)22:30-240VAC
38:40-440VAC
22:30-240VAC   38:40-440VAC38:40-440VAC38:40-440VAC
Load current10/15/20/25/30/40/60/80A10/15/20/25/30/40/60/80A10/15/20/25/30/40/60/80A10/15/20/25/30/40/60/80A
Instant voltage22:600VAC 38:900VAC22:600VAC 38:900VAC38:100VAC38:100VAC
On-state voltage drop<1.6VAC<1.6VAC<1.6VAC<1.6VAC
On-off time=<10mS=<10mS=<10mS=<10mS
Off-state leakage current=<10mA=<10mA=<10mA=<10mA
Dielectric strength>=2500VAC>=2500VAC>=2500VAC>=2500VAC






Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
