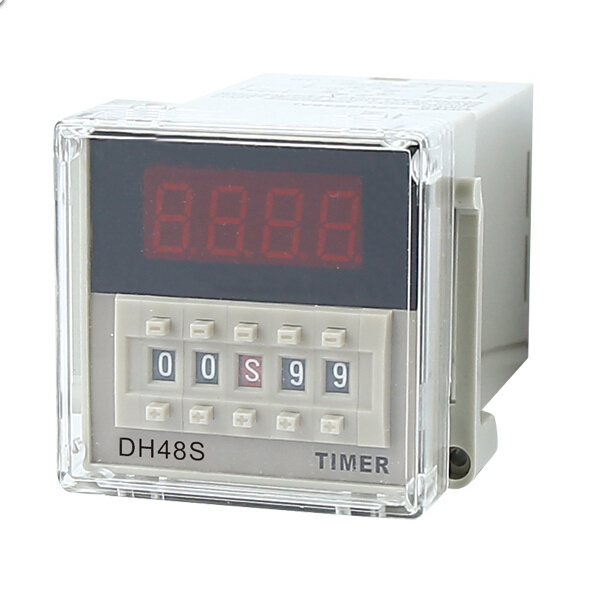

High Quality Dh48s-1z Time Relay / Timer with Socket

Name: High Quality Dh48s-1z Time Relay / Timer with Socket
Brand: all-electronics-online.com
SKU: 785010795
Availability: InStock
Rating: 4.8 (30 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DH48S-1Z
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimensions:	48h×48W×81.6D
Rated Voltage:	DC(V)12,24; AC(V)12,24,110,220,240,380,50/60Hz
Life:	5×106times
Consumed Power:	2va
Ambient Temperature:	-10~+55
Ambent Huminity:	45~85%Rh

Product Description

Model: DH48S-1Z
Appearance Dimension(mm):48H*48W*95D
Working Mode: Power on delay
Contact capacity:One group delay contacts circular time relay
Voltage: AC250V 5A
Contact Electrical life:10*100000
Ambient Temperature:-5-40°c
Delay Precision≤0.5%
Working voltage:AC:50HZ 36V 127V 220V 380V DC:24V 12V
Delay Specification:99s-99s , 99m-99m , 99h-99h
Installing Mode:Panel type
Operation Type:Repeat cycle

Model number	DH48S
Supply voltage	12, 24, 36, 48, 110, 220 or 380 Vac; 12 or 24 Vdc
Tolerance	-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
Power consumption	2W max
Setting method	Dial switch
Indication method	8-segment 4-digital display
External dimensions	48x48x97.4 mm
Perforate dimensions	45 10x45 10 mm
Contact rating	3A@250Vac, 5A@28Vdc
Repeat accuracy	±0.3%, ±0.05 sec
Setting error	±0.5%, ±0.05 sec
Power frequency	50...60 Hz
Termination	8 pins
Mounting	Panel, din rail
Matched socket	PF083A, PF083A-E
Mechanical life	1x106
Electrical life	1x105
Operating temperature	0 to 50 °C (32 to 122 °F)
Operating humidity	95% RH max, non-condensing
Alias name	DH48S digital timer
