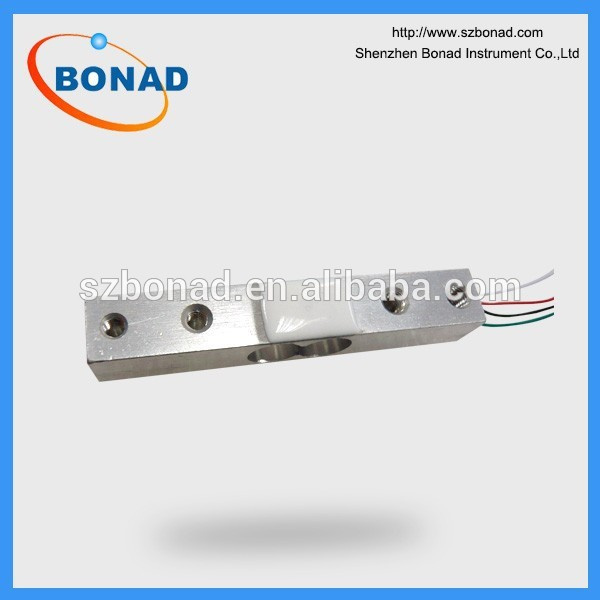

0.5kg Micro Load Cell for Kitchen Scale

Name: 0.5kg Micro Load Cell for Kitchen Scale
Brand: all-electronics-online.com
SKU: 809943455
Availability: InStock
Rating: 4.6 (133 reviews)

Price:	US $ 2-10/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND- CZL601
Combined Accuracy:	C2
Safety Overload:	120%
Ultimate Overload:	150%
Combined Error:	0.02%F.S
Output Resistance:	350 Omega
Accuracy:	1&2mv/V
Insulation Resistance:	5000momega;(100VDC)
Nonlinearity:	0.02%F.S
Excitation Ranger:	9~12VDC
Hysteresis:	0.02%F.S
Material:	Alloy Steel
Pattern:	Single Point Load Cells

Product Description

0.5kg Micro Load Cell for Kitchen Scale

Capacity : 0.5,1,3,5,6,10,15,20,25(kg)
Features:Aluminum alloy material, rubber seal protective treatment, colorless anodized
Application:Suitable for weight scales, and other small electronic weight scales.

Detailed Information

Parameters:

Model Number	BND- CZL601
Material	Aluminum alloy
combined accuracy	C2
Safety overload	120%
Ultimate Overload	150%
Combined Error	0.02%F.S
Output Resistance	350±3Ω
Accuracy	1±0.1&2±0.1mv/v
Insulation Resistance	≥5000MΩ(100VDC)
Nonlinearity	0.02%F.S
Excitation Ranger	9~12VDC
Hysteresis	0.02%F.S
Compensated Temp. Range	-10~+40ºC
Repeatability	0.02%F.S
Temp. Range	-20~+60ºC
Creep	0.02%F.S/10min
Temp. Effection Zero	0.03%F.S/10ºC
Zero Balance	±1%F.S
Temp.Effection Output	0.02%F.S/10ºC
Input Resistance	405±10Ω
Protection	IP65
Dimensions (mm)	200 × 200mm( recommended )

Wiring schematic diagram:

Color	Type
Red	Input ( + )
White	Output ( - )
Black	Input ( - )
Green	Output ( + )

Packaging & Delivery

Packaging : cartons with woven bags
Delivery : Within 3~7days after receiving your payment.

FAQ

1.What's your MOQ?
MOQ for most of our products is 1 unit. If you purchase more products, you will get a better price accordingly.
2.Do you have an OEM/OED service?
Yes! Please contact us for details.
3.What's the lead time?
It depends on the product and the qty.
If it is in stock, 3~7 days will be taken. Normally, 1~2 weeks for most products. 4~7 or more weeks will be needed for complex ones.
Please contact us to confirm.
4.What's the payment term?
T/T, Western Union, Money gram ,PayPal ,etc .
5.What's the shipping way?
Via air , sea or express like DHL, UPC, TNT, FedEx and so on.
6.What's your after-sales service policy?
One year warranty and life long tech support.
