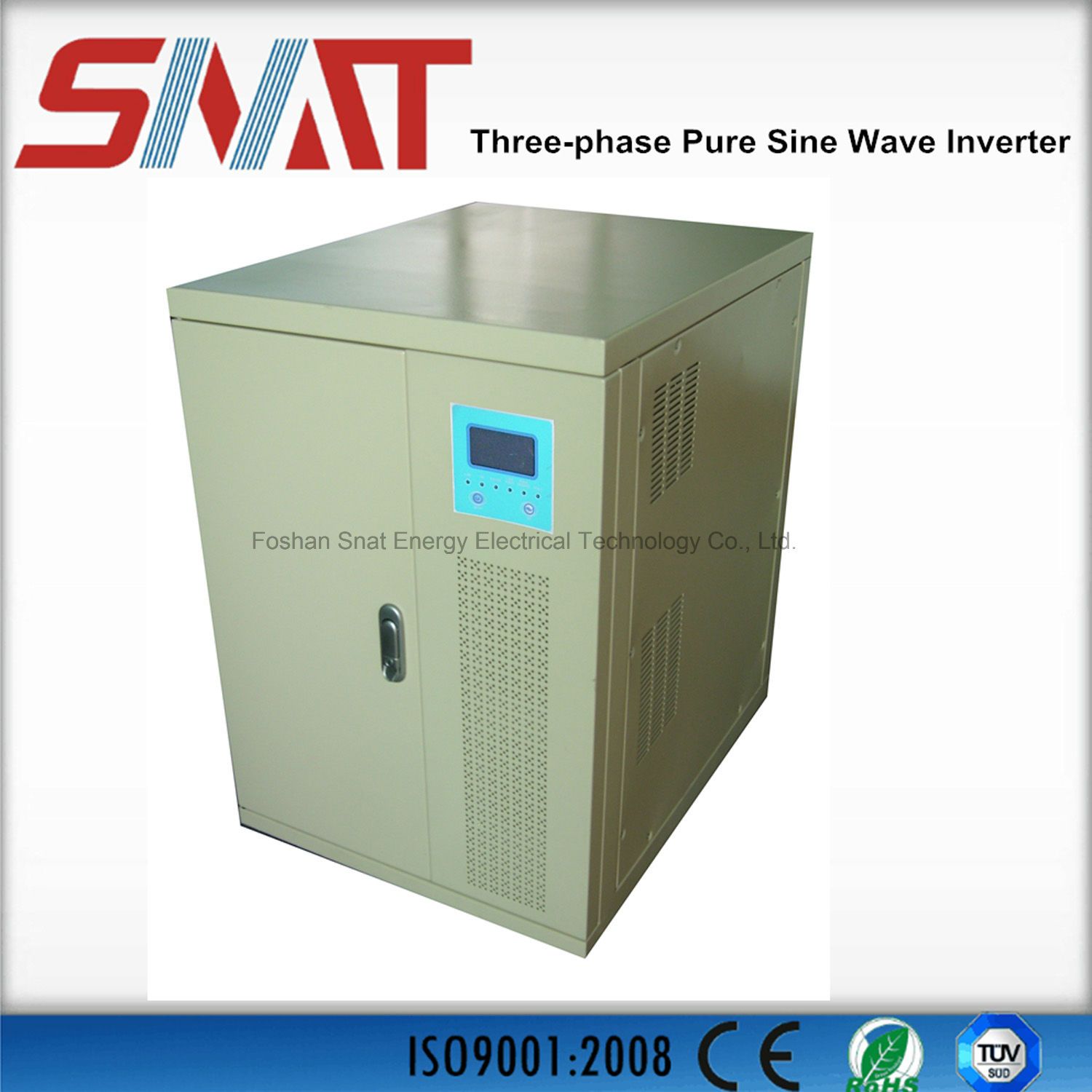

5kw-10kw Three- Phase Power Frequency Inverter for Power Light System

Prod Model:	TM -5KW-10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Snat
OEM/ODM:	Provide
Sine Wave Inverter:	1kw-15kw
Sample Orde:	Accept
Accessory:	Controller, Inverter, Battery.Power System
Protection:	Shirt-Cuirt, High/Low Voltage, Overload
Work Time:	Supply Power Day and Night with Battery
Phase:	Three
Power Source:	Solar Power
Brand:	Snat

Product Description

Product overview
Applies to different types of loads because of its full digital design and real pure sine wave output
With power-frequency design and highly stable output voltage and frequency, it can operate continuously for a long time, thus, it avoids the disadvantage of direct use of the mains supply, such as interruption of power supply, voltage instability, noise, and the lightning attacks, and the disadvantage of the short power supply time of small inverter supplies guaranteeing continuous and reliable operation for electrical equipment, sine wave inverter supplies are best guarantee for the safe and reliable operation of systems
Product is now widely used in china telecom, China mobile, china Unicom, aerospace railways financial management, office automation industrial automatic control, medical health, military scientific research

Main features

Excellent performance because of an MCU intelligent control technology
A wide range of applicable loads because of power-frequency transformer design and pure sine wave AC output
A wide range, high accuracy and full automatic voltage stabilization
Overall protection functions (overload protection, short circuit protection, over-voltage protection, under voltage protection and over temperature protection)
Simple LEDs and a LCD for visualization of operation status of the equipment


Model  TM-	5kW					7kW	8kW	10kW
Rated power	5kW					7kW	8kW	10kW
DC voltage	48V DC/96V DC/192V DC
Input voltage	three-phase four-wire system =ground wire 380V±20%
Input frequency	45-65Hz
output voltage	220V AC ±5%(three-phase four-wire system)
output frequency	50Hz±1%
Switching time	switching from the main supply mode to the battery mode: 50ms; switching from the battery mode to the mains supply mode: 25ms
charge current	max 8A
inverter output protection	input overvoltage/undervoltage protection, DC under voltage protection, peak surge protection, overload protection 100-120%, 30s;  >120%,100ms;
noise	<45dB
ambient temperature for operation	0-40ºC
ambient temperature for storage	-15-+15ºC
relative humidity for operation/storage	0-90% (no condensation)
altitude for operation	0-3000m
attitude for storage	0-15000m
net weight/gross weight	29.7/30.7		38/46.5		40.7/50.4 49.7/55.3		58.7/64	104/123	113/137	123/150

WARRANTY

Quality warranty for 1 year;Parts will be shipped for free during warranty period.

Delivery time:
Stick to contract.

Concurrently engaged in relative solar power system products such as solar panel, gel battery, sealed lead acid battery, Combiner box, etc

Accept special design requirements.
