5V 24 Volt 30A Uninterruptible Switch LED Power Supply Adapter Driver

5V 24 Volt 30A Uninterruptible Switch LED Power Supply Adapter Driver
Price: US $ 7-19/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: 4235
In Put Voltage: 90 ~ 264vact127 ~ 370VDC
Output Voltage: 5/12/15/24/36V
Power: 35W
Warranty: 2 Years
Item Name: Switching Power Supply
Usage: Light
Output Type: Single
Driving Method: LED Regulator Voltage
Circuit Structure: PWM Controlled
Brand: Meanwell

Product Description

Why choose us

feature

Withstand 300VAC Surge input for 5  seconds
Universal AC input I Full  range
Cooling by free air  convection
Protections: Short circuit I Over load I Over  voltage
Fully  isolated  plastic case
100% full load burn-in  test
Small  and  compact size
Class 2 power unit
IP 42 design
Pass LPS
Specification

MODEL

APV-35-5

APV-35-12

APV-35-15

APV-35-24

APV-35-36



DC VOLTAGE

5V

12V

15V

24V

36V



RATED CURRENT

5A

3A

2.4A

1.5A

1A



CURRENT RANGE

0 ~ 5A

0 ~ 3A

0 ~ 2.4A

0 ~ 1.5A

0 ~ 1A

  OUTPUT

RATED POWER

25W

36W

36W

36W

36W



RIPPLE & NOISE (max.) Note.2

120mVp-p

150mVp-p

150mVp-p

180mVp-p

180mVp-p



VOLTAGE TOLERANCE Note.3

±5.0%



SETUP, RISE TIME Note.6

1500ms, 40ms / 230VAC 1500ms,40ms / 115VAC at full load



HOLD UP TIME (Typ.)

20ms/230VAC 12ms/115VAC at full load



VOLTAGE RANGE Note.4

90 ~ 264VAC 127 ~ 370VDC



EFFICIENCY  (Typ.)

76.5%

83%

84%

84%

85%

    INPUT

AC CURRENT

0.5A/230VAC 0.75A/115VAC



INRUSH  CURRENT(Typ.)

COLD START 45A(twidth=440μs measured at 50% Ipeak) at 230VAC



MAX. No. of PSUs on 16A CIRCUIT BREAKER

6 units (circuit breaker of type B) / 10 units (circuit breaker of type C) at 230VAC



LEAKAGE CURRENT

0.25mA / 240VAC

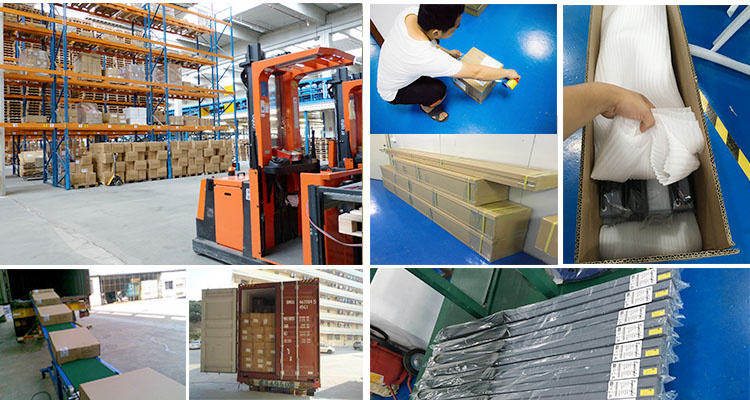

Packaging&transportation:


FAQ:

Q:How will I know whether to use a Constant Voltage or Constant Current driver with my LED's?
A:Usually the manufacturer of the LED load will specify whether the LED module is for use with either a Constant Voltage or Constant Current driver.

Q:What is input voltage range of LED Driver?
A:85-264VAC,120-373VDC

Q:What is output DC voltage of LED Driver?
A:3.3/5/12/15/24/36/48V

Q:What is the working temperature?
A:-30~+70ºC

Q:What is the warranty for an LED Driver?
A:Our LED drivers have a 5 year limited warranty


Advantage than other suppliers
Shenzhen FMT Lighting Group is one of the largest LED lights manufacturer in Shenzhen, China. We are specializing in the production of led aluninum profile, led strip, DC power track, led downlight, led track light, led power supply, led trunking light, led panel light, etc...over 9years, enjoys the high reputation in lighting industries in China.

Over
50000 sqm manufacturing space, it including 2 product rooms and 3 big warehouses
UL, ETL and Energy Star approved for LED
products

Our value message is " Quality is our culture"
All our products is coming with...
1:quality certification.
2:delivery time certification
3:refund money agreement
4:delivery time agreement
5:certification of origin
6:
confidentiality

If you check all round china, you can not find any company offer these kind of certification
with us your money in safe your business in safe

Shenzhen Gocus technology Co., Ltd., located in longgang district, 1st Building Hongchangfa Dustric Park, Longgang District, Shenzhen, Guangdong province.

Founded in March 2009, with 2009 square meters super clean, antistatic workshop and a number of international advanced complete set solid crystal, wire, sealing glue, spectral color separation, Japan imported highspeed SMT placement machine, reflow soldering, fully automatic equipment such as ultrasound; Focusing on IC design and LED light-emitting diode encapsulation; Production LED drive power supply module; LED commercial lighting, home lighting, outdoor lighting lamps and anterns of production; We are committed to high-end LED light source encapsulation and intelligent lighting MCU application, basically achieved the LED constant current power supply design, product appearance and heat dissipation structure design, light packaging, SMT, diecasting injection molding, assembling and product integration in production of lamps and lanterns, etc., s China's leading high thermal conductive ceramics and plastics professional manufacturer of LED lighting products, using the most advanced technology, through independent research and developmentsystem, always adhere to the continuous product upgrades and innovation movement, provides the high quality for the Volkswagen group, high cost performance, low carbon environmental protection and energy saving LED lighting products.
