DC24 V LED Driver Switching Power Supply Unit

Name: DC24 V LED Driver Switching Power Supply Unit
Brand: all-electronics-online.com
SKU: 830991745
Availability: InStock
Rating: 4.7 (20 reviews)

Price:	US $ 7-19/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

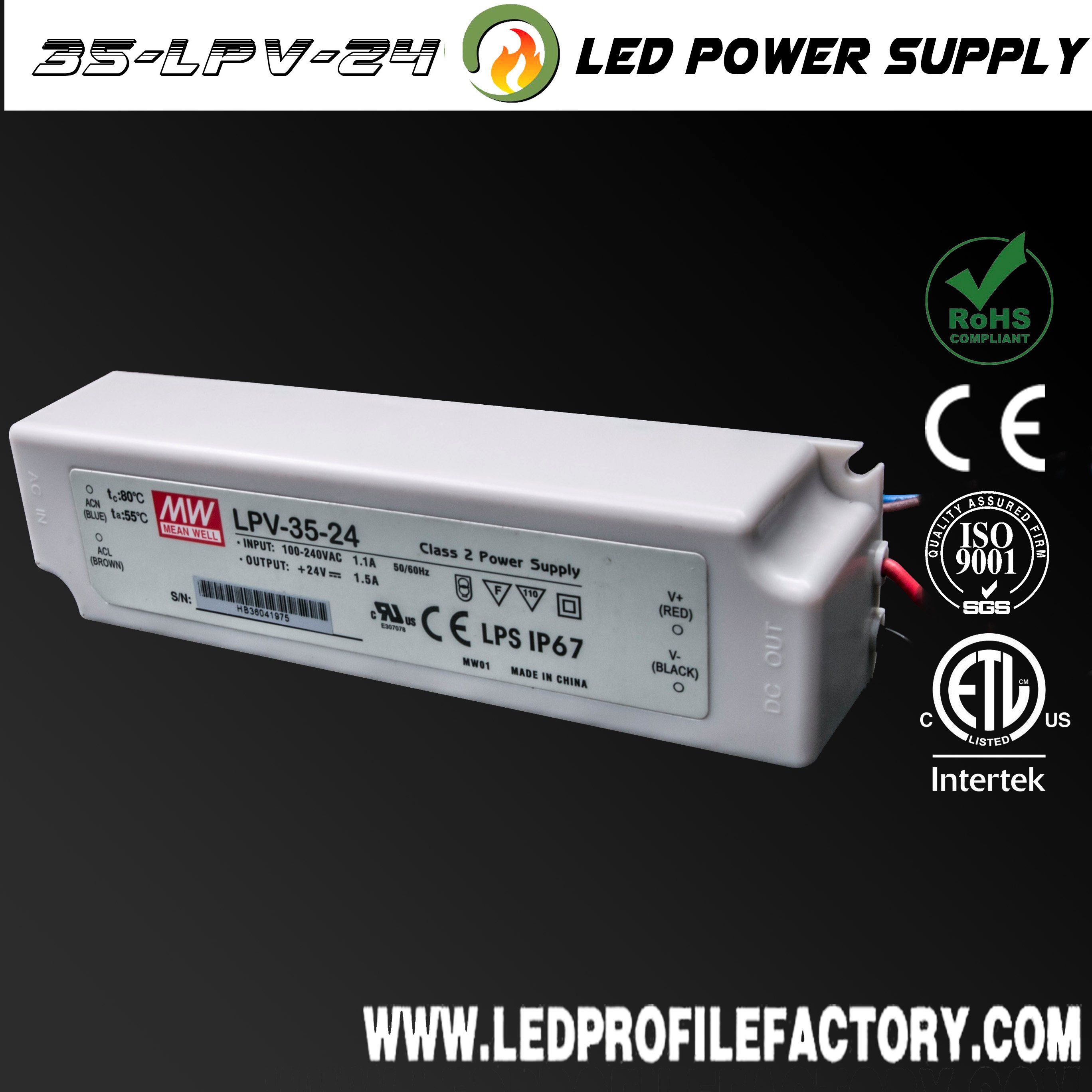

Prod Model:	LPV-35-24
In Put Voltage:	90 ~ 264vact127 ~ 370VDC
Output Voltage:	5/12/15/24/36V
Power:	35W
Warranty:	2 Years
Item Name:	12V LED Drive Power Supply
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Brand:	Meanwell

Product Description

feature
Withstand 300VAC Surge input for 5 seconds
Universal AC input I Full range
Cooling by free air convection
Protections: Short circuit I Over load I Over voltage
Fully isolated plastic case
100% full load burn-in test
Small and compact size
Class 2 power unit
IP 42 design
Pass LPS
Specification

MODEL		APV-35-5	APV-35-12	APV-35-15	APV-35-24	APV-35-36
	DC VOLTAGE	5V	12V	15V	24V	36V
	RATED CURRENT	5A	3A	2.4A	1.5A	1A
	CURRENT RANGE	0 ~ 5A	0 ~ 3A	0 ~ 2.4A	0 ~ 1.5A	0 ~ 1A
OUTPUT	RATED POWER	25W	36W	36W	36W	36W
	RIPPLE & NOISE (max.) Note.2	120mVp-p	150mVp-p	150mVp-p	180mVp-p	180mVp-p
	VOLTAGE TOLERANCE Note.3	±5.0%
	SETUP, RISE TIME Note.6	1500ms, 40ms / 230VAC 1500ms,40ms / 115VAC at full load
	HOLD UP TIME (Typ.)	20ms/230VAC 12ms/115VAC at full load
	VOLTAGE RANGE Note.4	90 ~ 264VAC 127 ~ 370VDC
	EFFICIENCY (Typ.)	76.5%	83%	84%	84%	85%
INPUT	AC CURRENT	0.5A/230VAC 0.75A/115VAC
	INRUSH CURRENT(Typ.)	COLD START 45A(twidth=440μs measured at 50% Ipeak) at 230VAC
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	6 units (circuit breaker of type B) / 10 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	0.25mA / 240VAC

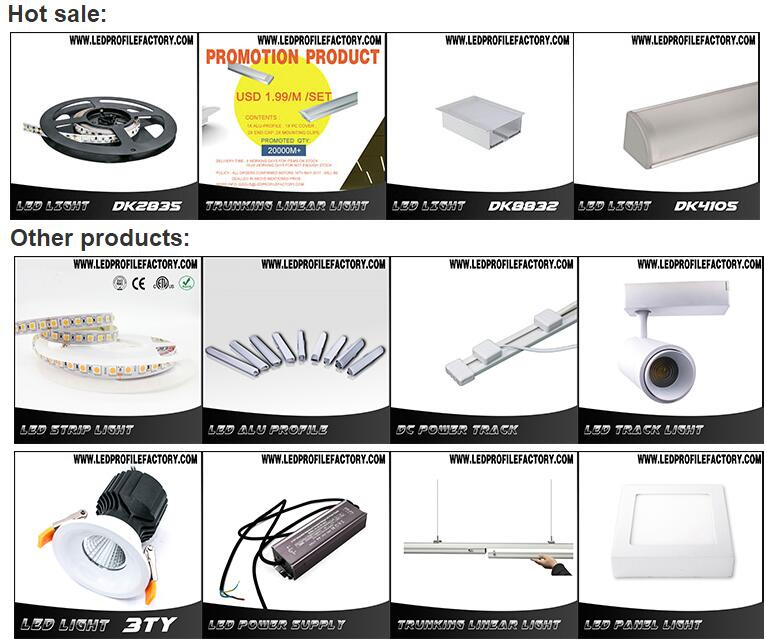

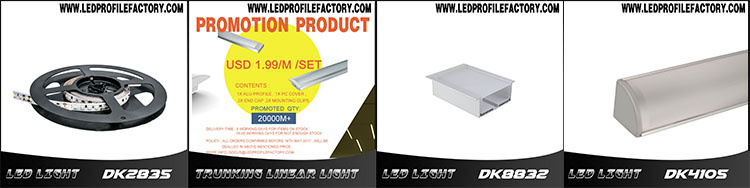

Hot sale:

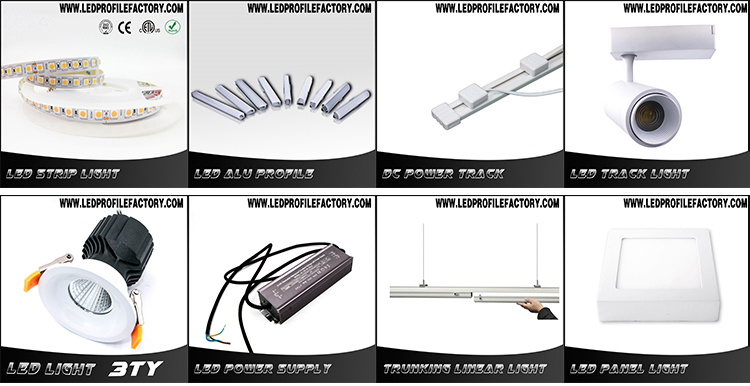

Other products:

FAQ
Q:Are you factory?
A:Yes,we are factory.

Q:Are you provide free sample?
A:Yes, 20cm free sample is available.

Q:What is your delivery time?
A:For product on stock, delivery in 5-7 working days.For product out of stock, delivery in 25-30 working days.

Q:Can we have the profile in other color?like white and black?
A:Yes, we can power coated the other color in the led profile.

Q:What is the length on stock?
A:2m/2.5m

Q:Can we have diifferent length?
A:Yes,customized length is availble. We'll charge only the labour cost of cutting.

Q:What is the max length of the profile?
A:Max 3m for air shipment, 5m for sea shipment.

New Product

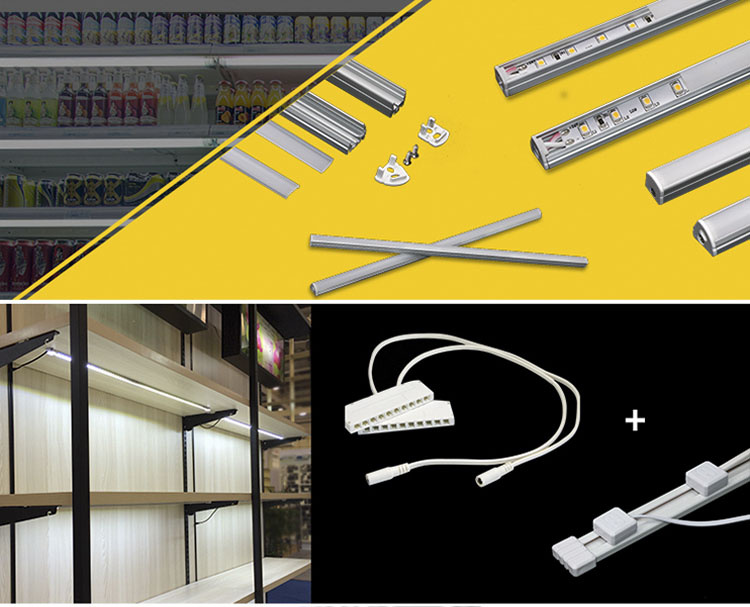

DC Power Track and Magnet Aluminium Profile for Shelves Lighting
