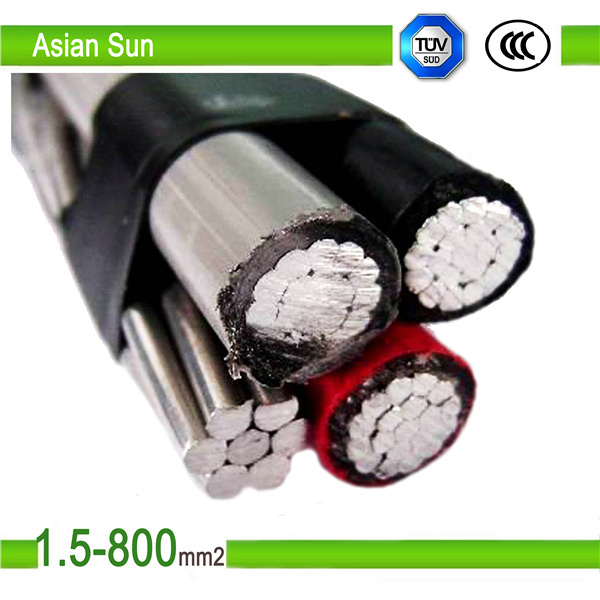

0.6/1kv XLPE/PVC Insulation, ACSR Conductor ABC Overhead Cable

Prod Model:	AS-AR-166
Supplier's Nature:	Manufacturer, Trading Company
Certificate:	ISO9001,CCC,TUV
Current:	DC & AC
Model No:	AAC/AAAC/ACSR Cable
Color:	Silver
Transportation:	by Air,Sea or Express
Voltage:	Low Voltage
Wooden Drum:	Normal Size 0.5,1.1 or as Per Customer Require
Years Of Manufacturer Found:	6 Years
Usage:	Overhead Transmission Line
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Aluminum
Insulation Material:	PVC
Certification:	TUV
Application:	Construction, Overhead, Underground, Industrial
Range Of Application:	Construction, Overhead, Underground, Industrial, P
Brand:	Dayuan

Product Description

Factory Direct Sale of 0.6/1kv Aluminiun Core Overhead Line ABC Cable

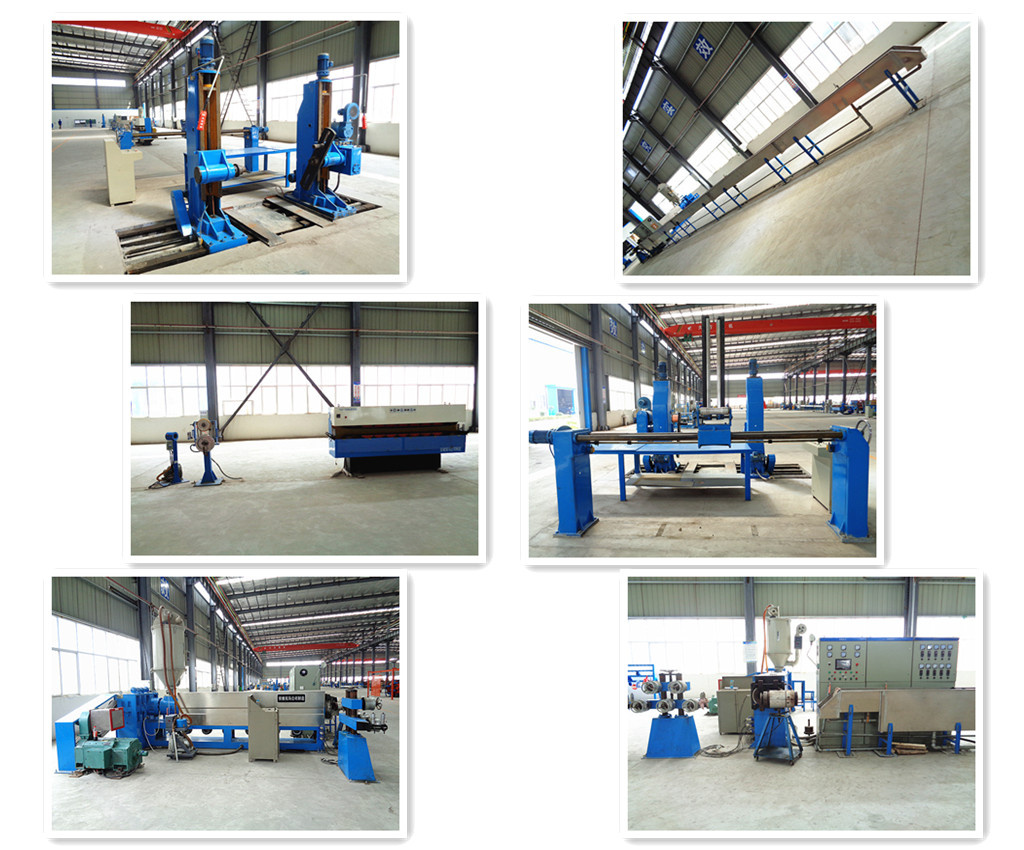

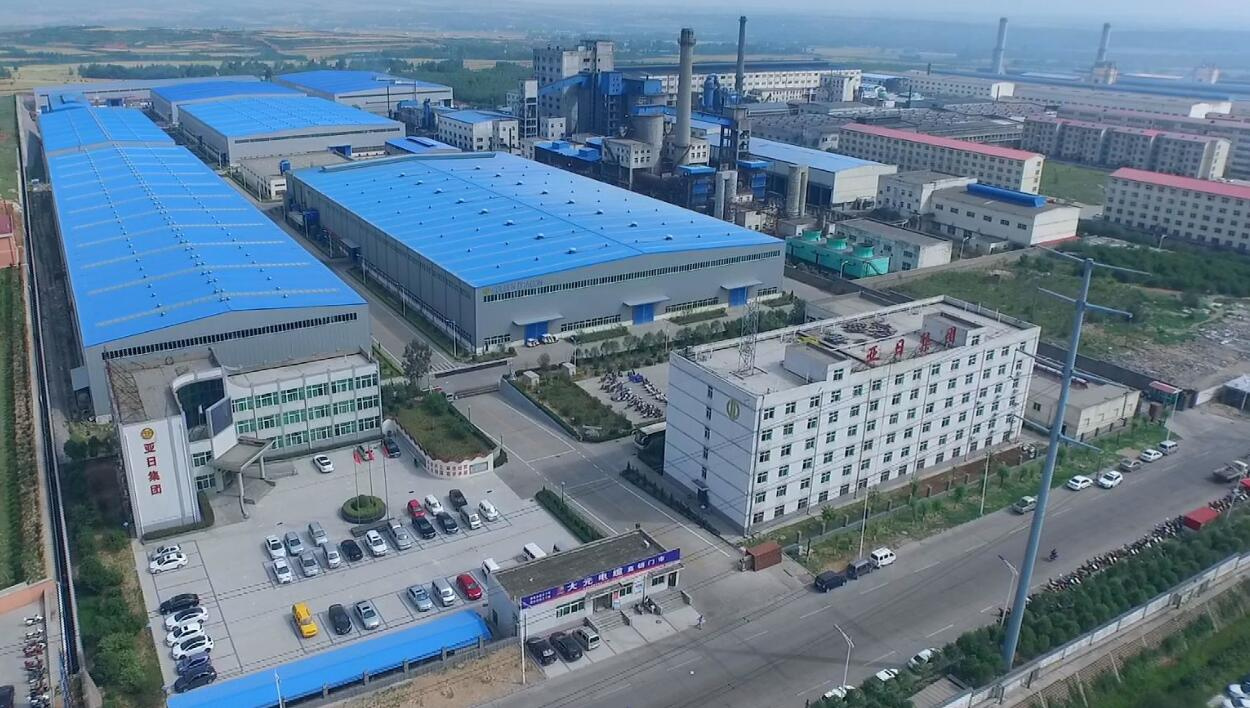

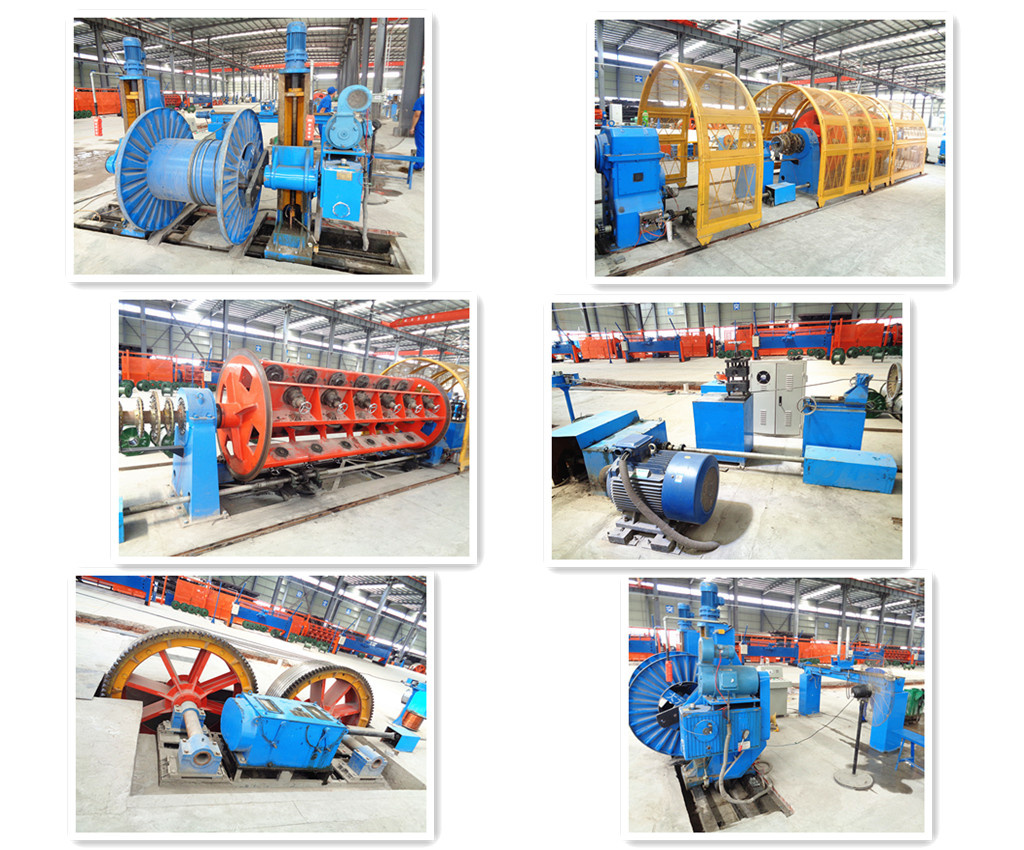

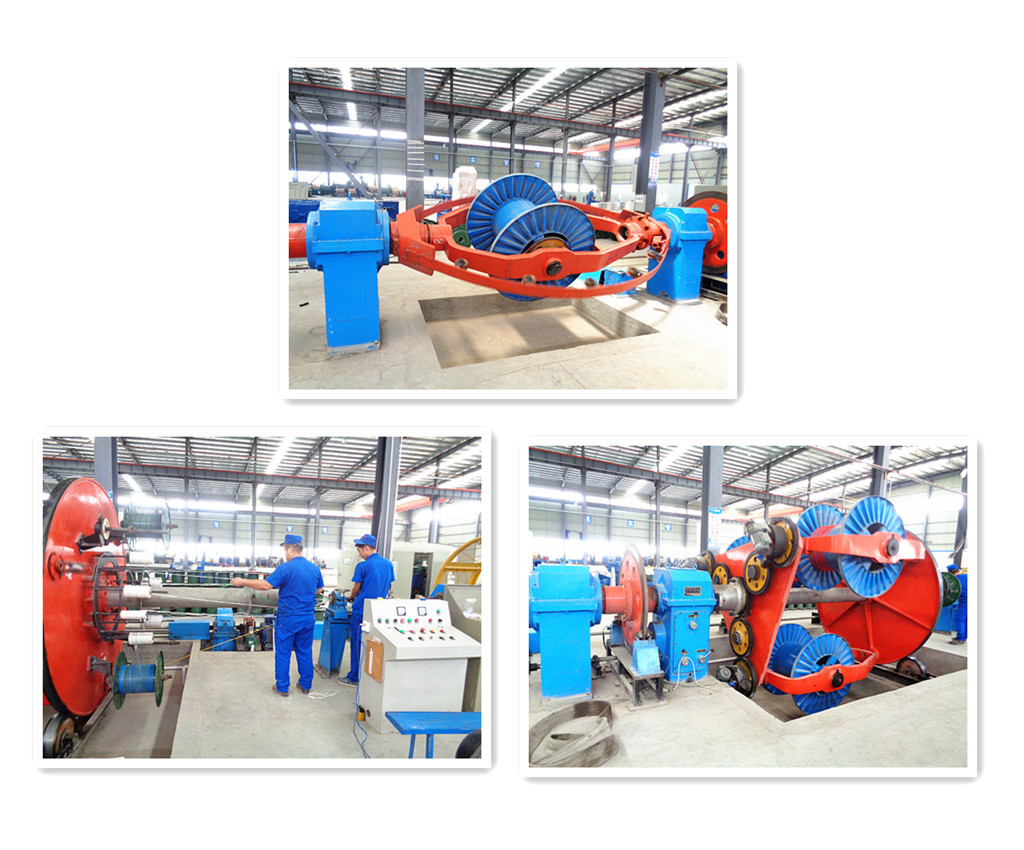

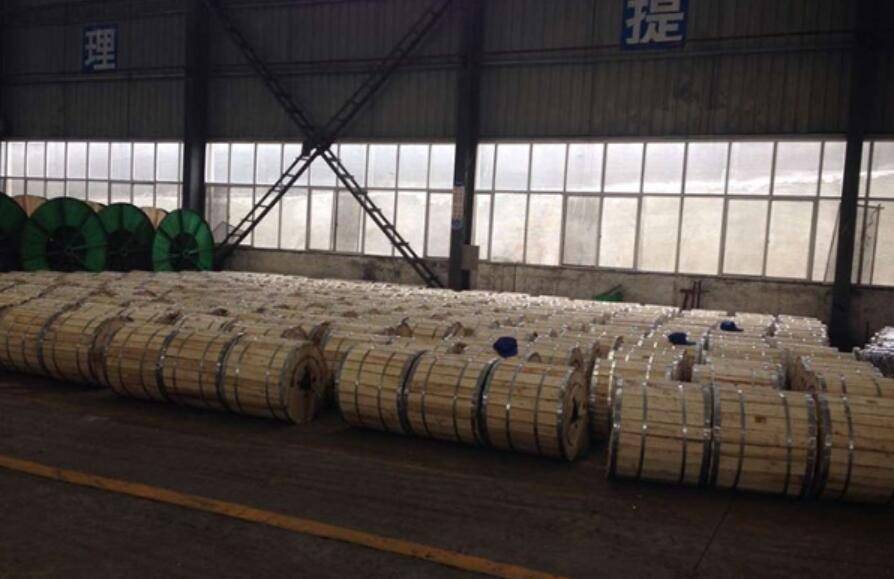

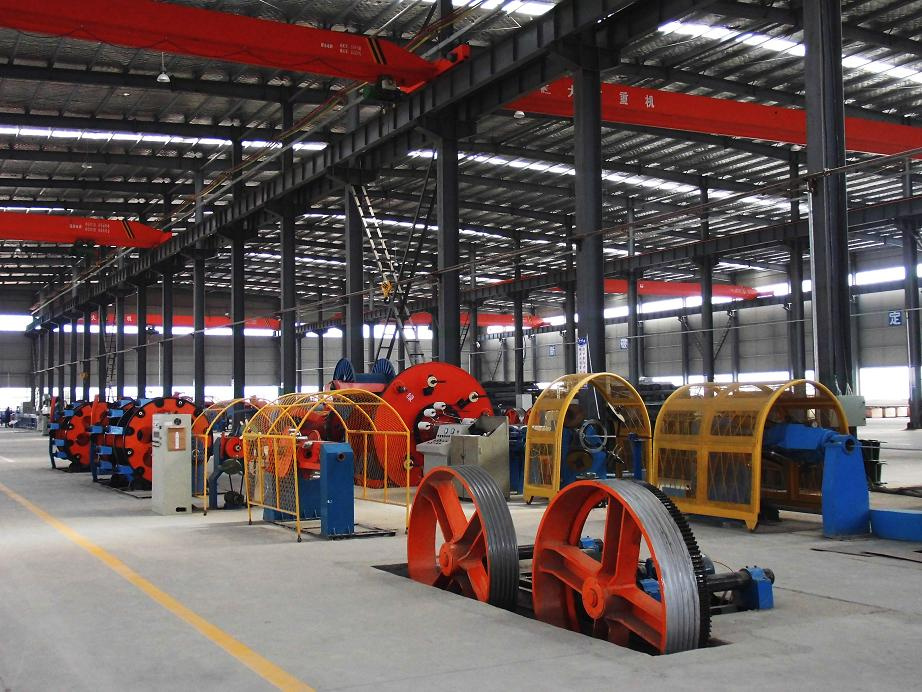

Factory information:

We have one big workshop to produce the raw material: aluminium wire rod, many company buy it from us to produce various cable so that our monthly turnover of it has up to 100 million!
So our price is very competitive and can gurantee the delivery time!




Applications of twisted abc cable

Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.

Specification of twisted abc cable

service drop cable meets or exceeds the following ASTM specifications:
· B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
· B-231 Aluminum Conductors, Concentric-Lay-Stranded.
· B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
· B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
· B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire


Construction of twisted abc cable

Conductors are concentrically stranded, compressed 1350 H-19 aluminum. Insulated with either polyethylene or cross-linked polyethylene (XLPE). Neutral messengers are concentrically stranded 6201, AAC, or ACSR.
BS Standard:

Code name	Nominal Aluminium  Area	Stranding  and wire  diameter		Sectioanal  area of aluminium	Total  Sectional  area	Overall  Diameter	Linear  mass	Calculate  Breaking  Load	Calculate  D.C Resistance  at20°C	Final  Modulus of elasticity	Corefficient  of linear  expansion
	mm²	Aluminium	Steel	mm²	mm²	mm	kg/km	daM	Ω/km	hhar	/°C
Wolf	150	30/2.59	7/2.59	158.1	194.9	18.13	726	6920	0.1828	8000	17.8×10-6
Caracal	175	18/3.81	1/3.61	184.3	194.5	18.05	587	4110	0.1563	6600	21.2×10-6
Lynx	175	30/2.79	7/2.79	183.4	226.2	19.53	842	7980	0.1576	8000	17.8×10-6
Jaguar	200	18/3.86	1/3.86	210.6	222.3	19.30	671	4655	0.1367	6600	21.2×10-6
Panther	200	30/3.00	7/3.00	212.1	261.5	21.00	974	9225	0.1363	8000	17.8×10-6
Lion	225	30/3.18	7/3.18	238.5	294.2	22.26	1095	10060	0.1212	8000	17.8×10-6
Bear	250	30/3.35	7/3.35	264.0	325.6	23.45	1213	11110	0.1093	8000	17.8×10-6
Goat	300	30/3.71	7/3.71	324.3	400.0	25.97	1489	13570	0.0891	8000	17.8×10-6
Sheep	350	30/3.99	7/3.99	374.1	461.4	27.93	1718	15590	0.07704	8000	17.8×10-6
Antilope	350	54/2.97	7/2.97	373.1	421.5	26.73	1411	11820	0.07727	6900	19.3×10-6
Bison	350	54/3.00	7/3.00	381.8	431.3	27.00	1444	12090	0.07573	6900	19.3×10-6
Deer	400	30/4.27	7/4.27	429.3	529.5	28.89	1971	17850	0.0674	8000	17.8×10-6
Zebra	400	54/3.18	7/3.18	428.9	484.5	28.62	1621	13190	0.0674	6900	19.3×10-6
Elk	450	30/4.50	7/4.50	477.0	588.3	31.50	2190	19820	0.06056	8000	17.8×10-6
Camel	450	54/3.35	7/3.35	475.2	536.8	30.15	1797	14570	0.06073	6900	19.3×10-6
Moose	500	54/3.53	7/3.53	528.7	597.2	31.77	1999	16110	0.0547	6900	19.3×10-6
Finch	550	54/3.65	19/2.29	564.7	642.9	33.35	2243	18070	0.0512	6800	18.3×10-6


US Standard:

Code	Size	Section		Stranding		Diameter		Total Weight	Rated Strength	Maximum Resisitance @20°C
		Al	Total	Al	Steel	Cable	Steel
	AWG or MCM	mm²		mm		mm		kg/km	kg	Ω/km
Wren	8	8.37	9.81	6×1.33	1×1.33	3.99	1.33	33.8	340	3.4017
Turkey	6	13.3	15.48	6×1.68	1×1.68	5.03	1.68	53.7	540	2.1135
Swan	4	21.15	24.71	6×2.12	1×2.12	6.35	2.12	85.4	846	1.3278
Swanate	4	21.15	26.52	7×1.96	1×2.61	6.53	2.61	99.7	1067	1.3133
Sparrow	2	33.62	39.23	6×2.67	1×2.67	8.03	2.67	136	1289	0.8343
Sparate	2	33.62	42.13	7×2.47	1×3.30	8.26	3.3	159	1650	0.8251
Robin	1	42.41	49.48	6×3.00	1×3.00	9.02	3	171	1612	0.6621
Raven	1/0	53.51	62.39	6×3.37	1×3.37	10.11	3.37	216	1987	0.5243
Quail	2/0	67.44	78.65	6×3.78	1×3.78	11.35	3.78	273	2401	0.416
Pigeon	3/0	85.02	99.23	6×4.25	1×4.25	12.75	4.25	344	3006	0.3304
Penguin	4/0	107	125	6×4.77	1×4.77	14.3	4.77	433	3787	0.2618
Owl	266.8	135	153	6×5.36	7×1.79	16.09	5.37	507	4330	0.2109
Waxwing	266.8	135	143	18×3.09	1×3.09	15.47	3.09	431	3117	0.2119
Partridge	266.8	135	157	26×2.57	7×2.00	16.31	5.98	547	5113	0.21
Oatrich	300	152	177	26×2.73	7×2.12	17.27	6.36	614	5755	0.1867
Piper	300	152	188	30×2.54	7×2.54	17.78	7.62	697	7000	0.1902
Merlin	336.4	171	180	18×3.47	1×3.47	17.37	3.47	544	3931	0.168
Linnet	336.4	171	198	26×2.89	7×2.25	18.31	6.74	689	6730	0.1663
Oriole	336.4	171	210	30×2.69	7×2.69	18.82	8.07	784	7865	0.1654
Chickadee	397.5	201	213	18×3.77	1×3.77	18.87	3.77	642	4499	0.1421
Ibis	397.5	201	234	26×3.14	7×2.44	19.89	7.32	814	7488	0.1411
Lark	397.5	201	248	30×2.92	7×2.92	20.47	8.77	927	9202	0.1401
Pelican	477	242	255	18×4.14	1×4.14	20.68	4.14	771	5347	0.1184
Flicker	477	242	273	24×3.58	7×2.39	21.49	7.16	914	7790	0.1178
Hawk	477	242	281	26×3.44	7×2.67	21.79	8.03	977	8880	0.1171
Hen	477	242	298	30×3.20	7×3.20	22.43	9.61	1112	10783	0.1165
Heron	500	253	312	30×3.28	7×3.28	22.96	9.84	1162	11090	0.1141
Osprey	556.5	282	298	18×4.47	1×4.47	22.33	4.47	899	6233	0.1014
Parakeet	556.5	282	319	24×3.87	7×2.58	23.22	7.73	1067	8999	0.101
Dove	556.5	282	328	26×3.72	7×2.89	23.55	8.66	1140	10019	0.1007
Eagle	556.5	282	348	30×3.46	7×3.46	24.21	10.39	1298	12606	0.1001
Peacock	605	307	346	24×4.03	7×2.69	24.21	8.03	1161	9771	0.0928
Squab	605	307	357	26×3.87	7×3.01	24.54	9.04	1240	11018	0.0925
Teal	605	307	376	30×3.61	19×2.16	25.25	10.82	1398	13567	0.0919
Duck	605	307	346	54×2.69	7×2.69	24.21	8.07	1158	10210	0.0944
Kingbird	636	322	340	18×4.78	1×4.78	23.88	4.78	1028	7128	0.0895
Rook	636	322	364	24×4.14	7×2.76	24.82	8.28	1219	10298	0.0883
Grosbeak	636	322	375	26×3.97	7×3.09	25.15	9.27	1302	11427	0.0897
Egret	636	322	396	30×3.70	19×2.22	25.88	11.1	1471	14302	0.0876
Goose	636	322	364	54×2.76	7×2.76	24.84	8.28	1218	10730	0.0898
Flamingo	666.6	338	382	24×4.23	7×2.82	15.4	8.46	1278	10751	0.0843
Gull	666.6	338	382	54×2.82	7×2.82	25.38	8.46	1276	11140	0.0587
Starling	715.5	363	422	26×4.21	7×3.28	26.7	9.83	1465	12865	0.0781
Redwing	715.5	363	445	30×3.92	19×2.35	27.46	11.76	1653	15649	0.0778
Crow	715.5	363	410	54×2.92	7×2.92	26.28	8.76	1370	11950	0.0787
Cuckoo	795	403	455	24×4.62	7×3.08	27.74	9.25	1524	12649	0.0719
Drake	795	403	468	26×4.44	7×3.45	28.14	10.36	1628	14359	0.0705
Mallard	795	403	495	30×4.14	19×2.48	28.96	12.42	1838	18390	0.0699
Tem	795	403	431	45×3.38	7×2.25	27	6.76	1333	10027	0.0712
Condor	795	403	455	54×3.08	7×3.08	27.76	9.25	1524	12770	0.0705
Crane	874.5	443	501	54×3.23	7×3.23	29.11	9.69	1674	14245	0.0643
Canary	900	456	515	54×3.28	7×3.28	29.51	9.83	1725	14483	0.0623
Rail	954	483	517	45×3.70	7×2.47	29.59	7.39	1600	11771	0.0594
Cardinal	954	483	546	54×3.38	7×3.38	30.38	10.13	1829	16323	0.0591
Ortolan	1033.5	524	560	45×3.85	7×2.57	30.81	7.7	1734	12577	0.0548
Curlew	1033.5	524	592	54×3.51	7×3.51	31.65	10.54	1981	16680	0.0545
Bluejay	1113	564	603	45×4.00	7×2.66	31.98	8	1867	13540	0.0509
Finch	1113	564	635	54×3.65	19×2.19	32.84	10.95	2129	17746	0.0509
Bunting	1192.5	604	646	45×4.14	7×2.76	33.07	8.28	2000	14530	0.0476
Grackle	1192.5	604	681	54×3.77	19×2.27	33.99	11.33	2281	18999	0.0472
Bittern	1272	645	689	45×4.27	7×2.85	34.16	8.53	2134	15470	0.0446
Pheasant	1272	645	726	54×3.90	19×2.34	35.1	11.71	2433	19788	0.0443
Dipper	1351.5	685	732	45×4.40	7×2.93	35.2	8.81	2265	16359	0.042
Martin	1351.5	685	772	54×4.02	19×2.41	36.17	12.07	2585	21007	0.0417
Bobolink	1431	725	775	45×4.53	7×3.02	36.25	9.07	2400	17396	0.0397
Plover	1431	725	817	54×4.14	19×2.48	37.21	12.42	2738	22262	0.0394
Nuthatch	1510.5	765	818	45×4.65	7×3.10	37.24	9.3	2533	18152	0.0374
Parrot	1510.5	765	863	54×4.25	19×2.55	38.25	12.75	2890	23499	0.0374
Lapwing	1590	806	861	45×4.77	7×3.18	38.15	9.55	2667	19101	0.0358
Falcon	1590	806	908	54×4.36	19×2.62	39.24	13.08	3041	24769	0.0354
Chukar	1780	902	975	84×3.70	19×2.22	40.69	11.1	3086	23291	0.0318
Bluebird	2156	1092	1181	84×4.07	19×2.44	44.75	12.22	3736	27526	0.0262
Kiwi	2167	1098	1146	72×4.41	7×2.94	44.12	8.81	3427	22819	0.0263

Canada Standard:

Code  Name	Area				Stranding and  wire diamater		overall diameter	Weight			Nominal breaking load	Maxinum dc resistance at 20o C	Standard length
	Aluminum		Steel	Total	Al	Steel		Al	Steel	Total
	AWG or MCM	mm2	mm2	mm2	No./mm	No./mm	mm	Kg/Km		Kg/Km	daN	Ohm/Km	mts ±5%
Wren Warbler Turkey Thrush Swan	8 7 6 5 4	8.39 10.58 13.29 16.77 21.16	1.42 1.74 2.19 2.77 3.55	9.81 12.32 15.48 19.54 24.71	6/1.33 6/1.50 6/1.68 6/1.89 6/2.12	1/1.33 1/1.50 1/1.68 1/1.89 1/2.12	3.99 4.50 5.04 5.67 6.36	23 29 37 46 58	11 14 17 22 27	34 43 54 68 85	333 417 520 647 814	3.4291 2.7194 2.1578 1.7109 1.3562	8200 6500 5200 8200 6600
Swallow Sparrow Robin Raven Quail	3 2 1 1/0 2/0	26.65 33.61 42.39 53.48 67.42	4.45 5.51 7.10 8.90 11.23	31.10 39.22 49.49 62.38 78.65	6/2.38 6/2.67 6/3.00 6/3.37 6/3.78	1/2.38 1/2.67 1/3.00 1/3.37 1/3.78	7.14 8.01 9.00 10.11 11.34	73 92 116 147 185	35 44 55 69 88	108 136 171 216 273	1005 1241 1555 1903 2379	1.0761 0.8533 0.6765 0.5360 0.4255	5200 4100 3300 2600 2050
Pigeon Penguin Owl Waxwing Partridge	3/0 4/0 266.8 266.8 266.8	85.03 107.23 135.16 135.16 135.16	14.19 17.87 17.55 7.48 22.00	99.22 125.10 152.71 142.64 157.16	6/4.25 6/4.77 6/5.36 18/3.09 26/2.57	1/4.25 1/4.77 7/1.79 1/3.09 7/2.00	12.75 14.31 16.09 15.15 16.28	233 294 371 372 374	110 139 137 58 172	343 433 508 430 546	2972 3747 4248 3149 5003	0.3372 0.2677 0.2122 0.2129 0.2135	1650 1300 925 3150 4900
Phoebe Ostrich Piper Merlin Linnet	300 300 300 336.4 336.4	152.00 152.00 152.00 170.45 170.45	8.45 24.71 35.48 9.48 27.81	160.45 176.71 187.48 179.93 198.26	18/3.28 26/2.73 30/2.54 18/3.47 26/2.89	1/3.28 7/2.12 7/2.54 1/3.47 7/2.25	16.40 17.28 17.78 17.35 18.31	418 420 420 469 470	65 193 277 74 217	483 613 697 543 687	3551 5621 6867 3983 6254	0.1893 0.1899 0.1899 0.1689 0.1692	2800 4350 4550 2500 3900
Oriole Chickadee Ibis Lark Pelican	336.4 397.5 397.5 397.5 477	170.45 201.42 201.42 201.42 241.68	39.81 11.16 32.77 46.97 13.42	210.26 212.58 234.19 248.39 255.10	30/2.69 18/3.77 26/3.14 30/2.92 18/4.14	7/2.69 1/3.77 7/2.44 7/2.92 1/4.14	18.83 18.85 19.88 20.44 20.70	470 555 555 557 665	311 86 256 367 104	781 641 811 924 769	7588 4630 7200 8888 5479	0.1696 0.1430 0.1433 0.1433 0.1190	4050 2100 3300 3450 1750
Toucan Hawk Hen Heron Sapsucker	477 477 477 500 556.5	241.68 241.68 241.68 253.35 282.00	23.74 39.42 56.39 59.10 27.68	265.42 281.10 298.07 312.45 309.68	22/3.74 26/3.44 30/3.20 30/3.28 22/4.04	7/2.08 7/2.67 7/3.20 7/3.28 7/2.24	21.20 21.79 22.40 22.96 22.88	667 667 668 700 777	186 308 440 461 216	853 975 1108 1161 993	6867 8652 10389 10879 7912	0.1194 0.1194 0.1194 0.1141 0.1023	1700 2500 2850 2750 1450
Dove Eagle - Duck Goldfinch	556.5 556.5 605 605 636	282.00 282.00 306.58 306.58 322.26	45.94 65.81 30.07 39.81 31.61	327.94 347.81 336.65 346.39 353.87	26/3.72 30/3.46 22/4.21 54/2.69 22/4.32	7/2.89 7/3.46 7/2.34 7/2.69 7/2.40	23.55 24.22 23.86 24.21 24.48	778 778 845 847 888	359 513 235 311 247	1137 1291 1080 1158 1135	9991 12125 8495 10011 8485	0.1023 0.1023 0.09416 0.09416 0.0895	2125 2450 1340 3050 1275
Grosbeak Egret Goose - Gull	636 636 636 666.6  666.6	322.26 322.26 322.26 337.74 337.74	52.45 73.55 41.74 17.35 43.81	374.71 395.81 364.00 355.09 381.55	26/3.97 30/3.70 54/2.76 42/3.20 54/2.82	7/3.09 19/2.22 7/2.76 7/1.78 7/2.82	25.15 25.90 24.84 24.54 25.38	888 890 891 933 933	409 576 326 135 342	1297 1466 1217 1068 1275	11124 14058 10526 7858 10923	0.0895 0.0895 0.0895 0.0856 0.0856	1860 1770 2900 2900 2775
Starling Redwing - Crow Drake	715.5 715.5 715.5 715.5 795	362.58 362.58 362.58 362.58 402.84	59.03 82.53 18.65 46.97 65.61	421.61 445.16 381.23 409.55 468.45	26/4.21 30/3.92 42/3.31 54/2.92 26/4.44	7/3.28 19/2.35 7/1.84 7/2.92 7/3.45	26.68 27.43 25.38 26.28 28.11	1000 1002 1002 1002 1112	461 646 146 367 512	1461 1648 1148 1369 1624	12503 15397 8437 11723 13906	0.0797 0.0797 0.0797 0.0797 0.0715	1650 1580 2700 2600 1500
Mallard Macaw Condor - Crane	795 795 795 874.5 874.5	402.84 402.84 402.84 443.10 443.10	91.87 20.71 52.19 22.84 57.43	494.71 423.55 455.03 465.94 500.68	30/4.14 42/3.50 54/3.08 42/3.67 54/3.23	19/2.48 7/1.94 7/3.08 7/2.04 7/3.23	28.96 26.82 27.72 28.14 29.07	1112 1112 1113 1223 1225	720 162 408 179 449	1832 1274 1521 1402 1674	17109 9368 12704 10168 13969	0.0718 0.0718 0.0718 0.0653 0.0653	1400 2430 2325 2200 2120
- Canary Phoenix Cardinal Snowbird	900 900 954 954 1033.5	456.06 456.06 483.42 483.42 523.68	23.42 59.10 24.84 62.65 26.97	479.48 515.16 508.26 546.07 550.65	42/3.72 54/3.28 42/3.83 54/3.38 42/3.99	7/2.07 7/3.28 7/2.13 7/3.38 7/2.21	28.53 29.52 29.87 30.42 30.57	1259 1261 1335 1336 1447	183 461 193 490 210	1442 1722 1528 1826 1657	10457 14372 10904 15240 11811	0.0633 0.0633 0.05971 0.05971 0.05511	2150 2060 2030 1950 1870
Curlew Beaumont Finch - Grackle	1033.5 1113 1113 1192.5 1192.5	523.68 563.93 563.93 604.26 604.26	67.87 28.97 71.55 31.10 76.58	591.55 592.90 635.48 635.36 680.84	54/3.51 42/4.14 54/3.65 42/4.28 54/3.77	7/3.51 7/2.30 19/2.19 7/2.38 19/2.27	31.59 31.74 32.85 32.82 33.97	1448 1557 1560 1668 1670	530 226 560 243 600	1978 1783 2120 1911 2270	16530 12615 17888 13528 19178	0.0551 0.0512 0.0512 0.0479 0.0479	1800 1750 1540 1620 1440
Scissortail Pheasant - Martin -	1272 1272 1351.5 1351.5 1431	644.51 644.51 684.84 684.84 725.10	33.15 81.83 35.23 86.71 37.35	677.67 726.19 720.07 771.55 762.45	42/4.42 54/3.90 42/4.56 54/4.02 42/4.69	7/2.46 19/2.34 7/2.53 19/2.41 7/2.61	33.90 35.10 34.95 36.17 35.97	1780 1781 1891 1893 2002	259 640 275 679 292	2039 2421 2166 2572 2294	14440 19934 15328 21180 16240	0.0449 0.0449 0.0423 0.0423 0.0397	1520 1350 1430 1270 1350
Plover - Parrot - Falcon	1431 1510.5 1510.5 1590 1590	725.10 765.35 765.35 805.68 805.68	91.87 39.35 96.84 71.10 102.13	816.97 804.70 862.19 876.78 907.81	54/4.14 42/4.82 54/4.25 48/4.63 54/4.36	19/2.48 7/2.67 19/2.55 7/3.60 19/2.62	37.24 36.93 38.25 38.58 39.26	2005 2113 2117 2225 2226	720 307 760 554 799	2725 2420 2877 2779 3025	22425 17133 23715 21180 24961	0.0400 0.0377 0.0377 0.0357 0.0357	1200 1280 1130 1100 1080
HIGH STRENGTH STRANDINGS
Bantam Magpie Shrike Snipe Loon	13.10 20.87 33.20  52.825 66.50	6.65 10.58 16.84 26.77 33.68	8.84 14.13 22.45 35.83 44.97	15.49 24.71 39.29 62.45 78.65	3/6.18 3/2.12 3/2.67 3/3.37 3/3.78	4/1.68 4/2.12 4/2.67 4/3.37 4/3.78	5.04 6.36 8.01 10.11 11.34	18.2 29.0 46.1 73.4 92.4	69.6 110.9 176.5 280.7 353.4	87.8 139.9 222.6 354.1 445.8	1167 1859 2855 4395 5533	4.3218 2.7129 1.7053 1.0718 0.8513	5200 6500 4100 2570 2050
Petrel Minorca Leghorn Guinea	101.8 110.8 134.6 159.0	51.61 56.13 68.19 80.58	30.06 32.77 39.81 46.97	81.67 88.90 108.00 127.55	12/2.34 12/2.44 12/2.69 12/2.92	7/2.34 7/2.44 7/2.69 7/2.92	11.70 12.20 13.45 14.60	142.4 154.7 189.0 221.7	234.8 256.0 311.0 367.6	377.2 410.7 500.0 589.3	4385 4772 5753 6759	0.5600 0.5144 0.4235 0.3586	5400 4950 4080 3450
Dotterel Dorking Brahma Cochin	176.6 190.8 203.2 211.3	89.48 96.71 102.97 107.10	52.19 56.33 91.87 62.45	141.67 153.10 194.84 169.55	12/3.08 12/3.20 16/2.86 12/3.37	7/3.08 7/3.20 19/2.48 7/3.37	15.40 16.00 18.12 16.85	247.0 266.4 284.2 296.1	407.8 440.5 720.3 488.1	654.8 706.9 1004.5 784.2	7303 7887 12257 8741	0.3228 0.2988 0.2812 0.2697	3100 2900 1200 2600

DIN Standard:

Area				Stranding and wire diameter		Overall Diameter	Linear Mass			Nominal Breking Load	Maximum resistance at20°C
Nominal	Actual						Aluminium	Steel	Total
Alu/steel mm²	Alu mm²	Steel mm²	Total mm²	Aluminium mm	Steel mm	mm	kg/km	kg/km	kg/km	daM	Ω/km
70/12	69.9	11.4	81.3	26/1.85	7/1.44	11.7	193	91	284	2680	0.413
95/15	94.4	15.3	109.7	26/2.15	7/1.67	13.6	260	123	383	3575	0.3058
95/55	96.5	56.3	152.8	12/3.20	7/3.20	16	266	446	712	7935	0.2992
105/75	105.7	75.5	181.5	14/3.10	19/2.25	17.5	292	599	891	10845	0.2735
120/20	121.6	19.8	141.4	26/2.44	7/1.90	15.5	336	158	494	4565	0.2374
120/70	122	71.3	193.3	12/3.60	7/3.60	18	337	564	901	10000	0.2364
125/30	127.9	29.8	157.7	30/2.33	7/2.33	16.3	353	238	591	5760	0.2259
150/25	148.9	24.2	173.1	26/2.70	7/2.10	17.1	411	194	605	5525	0.1939
170/40	171.8	40.1	211.9	30/2.70	7/2.70	18.9	475	319	794	7675	0.1682
185/30	183.8	29.8	213.6	26/3.00	7/2.33	19	507	239	746	6620	0.1571
210/35	209.1	34.1	243.2	26/3.20	7/2.49	20.3	577	273	850	7490	0.138
210/50	212.1	49.5	261.6	30/3.00	7/3.00	21	587	394	981	9390	0.1362
230/30	230.9	29.8	260.7	24/3.50	7/2.33	21	638	239	877	7310	0.1249
240/40	243	39.5	282.5	26/3.45	7/2.68	21.9	671	316	987	8640	0.1188
265/35	263.7	34.1	297.8	24/3.74	7/2.49	22.4	728	274	1002	8305	0.1094
300/50	304.3	49.5	353.7	26/3.86	7/3.00	24.5	840	396	1236	10700	0.09487
305/40	304.6	39.5	344.1	54/2.68	7/2.68	24.1	843	317	1160	9940	0.0949
340/30	339.3	29.8	369.1	48/3.00	7/2.33	25	938	242	1180	9290	0.08509
380/50	382	49.5	431.5	54/3.00	7/3.00	27	1056	397	1453	12310	0.07573
385/35	386	34.1	420.1	48/3.20	7/2.49	26.7	1067	277	1344	10480	.0.7478
435/55	434.3	56.3	490.6	54/3.20	7/3.20	28.8	1203	450	1653	13645	0.06656
450/40	448.7	39.5	488.2	48/3.45	7/2.68	28.7	1241	320	1561	12075	0.06434
490/65	490.3	63.6	553.9	54/3.40	7/3.40	30.6	1356	510	1866	15310	0.05896
495/35	494.1	34.1	528.2	45/3.74	7/2.49	29.9	1363	283	1646	12180	0.05846
510/45	510.2	45.3	555.5	48/3.68	7/2.87	30.7	1413	365	1778	13665	0.5655
550/70	550	71.3	621.3	54/3.60	7/3.60	32.4	1520	572	2092	17060	0.05259
560/50	561.7	49.5	611.2	48/3.86	7/3.00	32.2	1553	401	1954	14895	0.0514
570/40	565.5	39.5	610.3	45/4.00	7/2.68	32.2	1563	325	1888	13900	0.05108
650/45	698.8	45.3	653.49	45/4.30	7/2.87	34.4	1791	372	2163	15552	0.0442
680/85	678.8	86	764.8	54/4.00	19/2.40	36	1866	702	2570	21040	0.0426
1045/45	1045.58	45.3	1090.9	72/4.30	7/2.87	43	2879	370	3249	21787	0.0277

IEC Standard:

Code Name	Area			Number of Wire		Wire dia		Diameter		Linear Mass	Rated Strength	D.c Resistance
	Aluminium	Steel	Total			Alum	Steel	Core	Cond
	mm²	mm²	mm²	Al	St	mm	mm	mm	mm	kg/km	daM	Ω/km
16	16	2.67	18.7	6	1	1.84	1.84	1.84	5.53	64.6	6.08	1.7934
25	25	4.17	29.2	6	1	2.30	2.30	2.30	6.91	100.9	9.13	1.1478
40	40	6.67	46.7	6	1	2.91	2.91	2.91	8.74	161.5	14.40	0.7174
63	63	10.5	73.5	6	1	3.66	3.66	3.66	11.0	254.4	21.63	0.4555
100	100	16.7	117	6	1	4.61	4.61	4.61	13.8	403.8	34.33	0.2869
125	125	6.94	132	18	1	2.97	2.97	2.97	14.9	397.9	29.17	0.2304
125	125	20.4	145	26	7	2.47	1.92	5.77	15.7	503.9	45.69	0.2310
160	160	8.89	169	18	1	3.36	3.36	3.36	16.8	508.3	36.18	0.1800
160	160	26.1	186	26	7	2.80	2.18	6.53	17.7	644.9	57.69	0.1805
200	200	11.1	211	18	1	3.76	3.76	3.76	18.8	636.7	44.22	0.1440
200	200	32.6	233	26	7	3.13	2.43	7.30	19.8	806.2	70.13	0.1444
250	250	24.6	275	22	7	3.80	2.11	6.34	21.6	880.6	68.72	0.1154
250	250	40.7	291	26	7	3.50	2.72	8.16	22.2	1007.7	87.67	0.1155
315	315	21.8	337	45	7	2.99	1.99	5.97	23.9	1039.6	79.03	0.0917
315	315	51.3	366	26	7	3.93	3.05	9.16	24.9	1269.7	106.83	0.0917
400	400	27.7	428	45	7	3.36	2.24	6.73	26.9	1320.1	98.36	0.0722
400	400	51.9	452	54	7	3.07	3.07	9.21	27.6	1510.3	123.04	0.0723
450	450	31.1	481	45	7	3.57	2.38	7.14	28.5	1485.2	107.47	0.0642
450	450	58.3	508	54	7	3.26	3.26	9.77	29.3	1699.1	138.42	0.0643
500	500	34.6	535	45	7	3.76	2.51	7.52	30.1	1650.2	119.41	0.0578
500	500	64.8	565	54	7	3.43	3.43	10.3	30.9	1887.9	153.80	0.0578
560	560	38.7	599	45	7	3.98	2.65	7.96	31.8	1848.2	133.74	0.0516
560	560	70.9	631	54	19	3.63	2.18	10.9	32.7	2103.4	172.59	0.0516
630	630	43.6	674	45	7	4.22	2.81	8.44	33.8	2079.2	150.45	0.0459
630	630	79.8	710	54	19	3.85	2.31	11.6	34.7	2366.3	191.77	0.0459
710	710	49.1	759	45	7	4.48	2.99	8.96	35.9	2343.2	169.56	0.0407
710	710	89.9	800	54	19	4.09	2.45	12.3	36.8	2666.8	216.12	0.0407
800	800	34.6	835	72	7	3.76	2.51	7.52	37.6	2480.2	167.41	0.0361
800	800	66.7	867	84	7	3.48	3.48	10.4	38.3	2732.7	205.33	0.0362
800	800	101	901	54	19	4.34	2.61	13.0	39.1	3004.9	243.52	0.0362
900	900	38.9	939	72	7	3.99	2.66	7.98	39.9	2790.2	188.33	0.0321
900	900	75.0	975	84	7	3.69	3.69	11.1	40.6	3074.2	226.50	0.0322
1000	1000	43.2	1043	72	7	4.21	2.80	8.41	42.1	3100.3	209.26	0.0259
1120	1120	47.3	1167	72	19	4.45	1.78	8.90	44.5	3464.9	234.53	0.0258
1120	1120	91.2	1211	84	19	4.12	2.47	12.4	45.3	3811.5	283.17	0.0258
1250	1250	102	1352	84	19	4.35	2.61	13.1	47.9	4253.9	316.04	0.0232
1250	1250	52.8	1303	72	19	4.70	1.88	9.40	47.0	3867.1	261.75	0.0Shipment terms:

By FOB or CIF by sea.
By DHL, UPS, Fedex are also availabl






Our Services:

Luoyang Asian Sun Industrial Group Co., Ltd, a professional wires and cables manufacturer for 6 years in China. Asian Sun attends International Exhibitions every year, we support to offer many kinds of wires and cables, such as xlpe/pvc electrical power cable, control power cable, aerial cable, ABC, AAC, AAAC, ASCR cables, and XLPO/PVC Solar PV Cable etc. We can produce the standard: ASTM, BS, CSA, IEC, ASMC, DIN as your need.
1. Factory: 200,081 square meters, available for OEM&ODM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: CCC,ISO9001, CQC, etc;
4. Payment terms: T/T, L/C;
5. Guarantee: 17 years;
6. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.

Company Certifications:

National Products Safety Cerficcation;
ISO9001 Quality System Certification;
CCC Chinese National Compulsory Products Certification;
Occupational Health Safety Management System Certification;
Environmental Management System Certification;
Production License of Industrial Products;
International Standard Products Sysmbol Certificate, etc.




FAQ:

1) Q: Are you a manufacturer or trading company?
 A: We are one of the biggest manufacturers in China specializing in produce wires & cables, electric round aluminium rod and aluminium bar, solar mounting bracket,steel pile and power transformer etc.

2) Q:Where is your factory? How can i visit there?

A:Our factory is located in Luoyang City,Henan Province,China.
  Warmly welcome to visit our factory anytime.

3) Q: Can I get samples of your products?
A: Yes! We are ready and very honored to offer you the sample orders according to your requirement.

4) Q: How do you guarantee your product quality?
A: Quality is our priority, we treat quality control as the first most important thing from the very beginning to the very end.
Our company has gained CCC, ISO, TUV and IEC certifications.
100% inspection to be done before the delivery.
Your success is our business. Give us a chance, give you more choices.
Please feel free to contact me for more information,we will be available always:

Conta
Bella lee
Department sale manager
International Trade Department
Luoyang Asian Sun Industrial Group Co., Ltd
=================================
Tel: +86-379-69991592
Mobile: + 86-158-3851-0303
Web: http://www.yr-group.cn
Alibaba Showroom: http://lyyari.en.alibaba.com/
=================================
