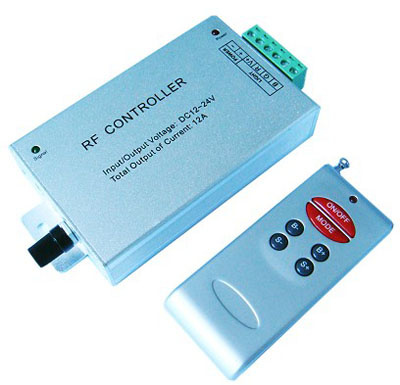

6-Key Audio Controller with CE (GN-AUDIO-001)

Name: 6-Key Audio Controller with CE (GN-AUDIO-001)
Brand: all-electronics-online.com
SKU: 735396975
Availability: InStock
Rating: 4.5 (122 reviews)

Price:	US $ 6.5-8/Piece
Trade Terms:	FOB
Min Order:	5/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GN-AUDIO-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Control The LED Lamp
Application:	LED Products
Signal Transmission:	RF Remote Control
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V

Product Description

I. Specifications:
Working temperature: -20-60 ° C
Supply voltage: DC12~24V
Product size: L128× W64× H25 mm
Package size: L137× W82× H45mm
Net weight: 185g
Gross weight: 215g
Output: Three CMOS drain- open output
Connecting Mode: Common anode
Max load current: 4 A each color

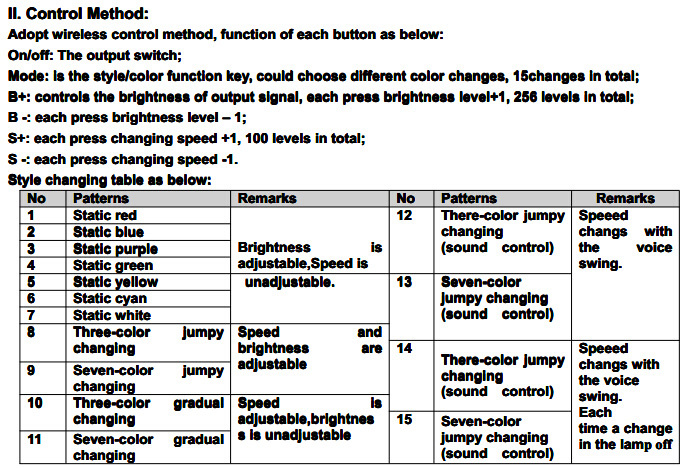

II. Control Method:
Adopt wireless control method, function of each button as below:
On/off: The output switch;
Mode: Is the style/color function key, could choose different color changes, 15changes in total;
B+: Controls the brightness of output signal, each press brightness level+1, 256 levels in total;
B -: Each press brightness level 1;
S+: Each press changing speed +1, 100 levels in total;
S -: Each press changing speed -1.
Style changing table as below:
