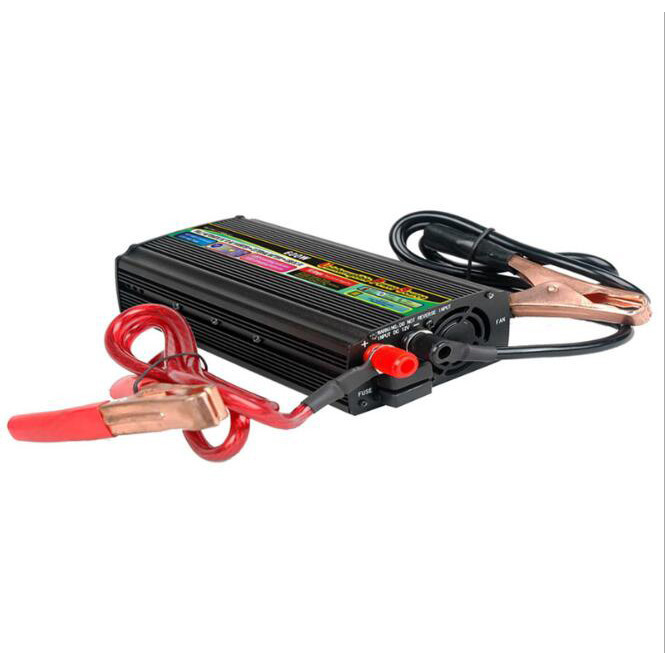

600W DC12V/24V Modified Sine Wave Power Inverters with UPS Charger

Name: 600W DC12V/24V Modified Sine Wave Power Inverters with UPS Charger
Brand: all-electronics-online.com
SKU: 786347135
Availability: InStock
Rating: 4.8 (73 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	50/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WSP-600MSW+UPS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	16.509.04.6mm
Phase:	Single
Power Source:	Electric Power
Application:	Electric Tools
Brand:	OEM

Product Description

600W DC12V/24V AC220V/110 Modified Sine Wave Power Inverters with UPS Charger
DC 12V/24V TO AC 110V/220V/240V
600W continuous power inverter 1200 watt peak.
Over temperature protection
Low battery alarm
Over voltage protection
Overload protection
Low battery shut down
UPS and battery charger

1. Output continuous power	600W
2. / Output peak power	1200W
3.DC / Input DC voltage	12V		24V
4. / Working voltage	11-15V		21-29V
5. / Low-voltage protection	9-10.5V		18-20.5V
5. / Low-voltage protection	9.5-11V		19.5-21V
6. / Over-voltage protection	≥15V		≥29V
7. / Fuse	35A X 2		35A
8. / Non-load current	≤0.5A		≤0.5A
9. / Convert efficiency	≥90%
10. / Overload protection	600W-720W
11. / Short circuit protection	Have
12. / Work temperature	-10ºC -- +50ºC
13. / Temperature protection	60ºC --+70ºC
14. / Output wave	/ Modified sine wave
15.AC / AC Output voltage	110V	220V		240V
16. / Output frequency	60Hz	50Hz		50Hz
17.USB /USB Output voltage	DC 5V(800mA)

AC / AC input voltage	110V	220V
AC / AC input frequency	50HZ/60HZ	50HZ/60HZ
AC / AC working voltage	85V-130V	170V-250V
AC / AC input low voltage protection	≤75V	≤150V
AC / AC input high voltage protection	≥130V	≥250V
AC / AC input Fuse	10A	5A
/ Charge style	Intelligent positive and negative pulse charge
/ Charge process	Prep charge,main charge,float charge,charge fully
/ Charge current	Maximal 10A
/ Charge voltage	14.5V-16V	29V-32V
/ DC to AC inverting household electricity supply time	≤10ms
/ household electricity supply inverting DC to AC time	≤10ms
/ DC to AC inverting household electricity supply requirement	AC / AC input voltage under normal working scope
/ household electricity supply inverting DC to AC requirement	,AC,AC / Not household electricity supply, AC input low voltage protection, AC input high voltage protection

Packing:
1, / Packing                               / Paper Box
2,/ PCS/CTN                                   4PCS
3, / Measurement                           265*152*55mm
4,/ Carton dimension                 350*320*200mm
5,Unit weight                            2.28kg ± 0.15kg
6, / Net weight (N.W)                          9.1kg
7, / Gross weight (G.W)                        10.4kg
