60227 IEC 53 House Wiring Electrical Cable Rvv

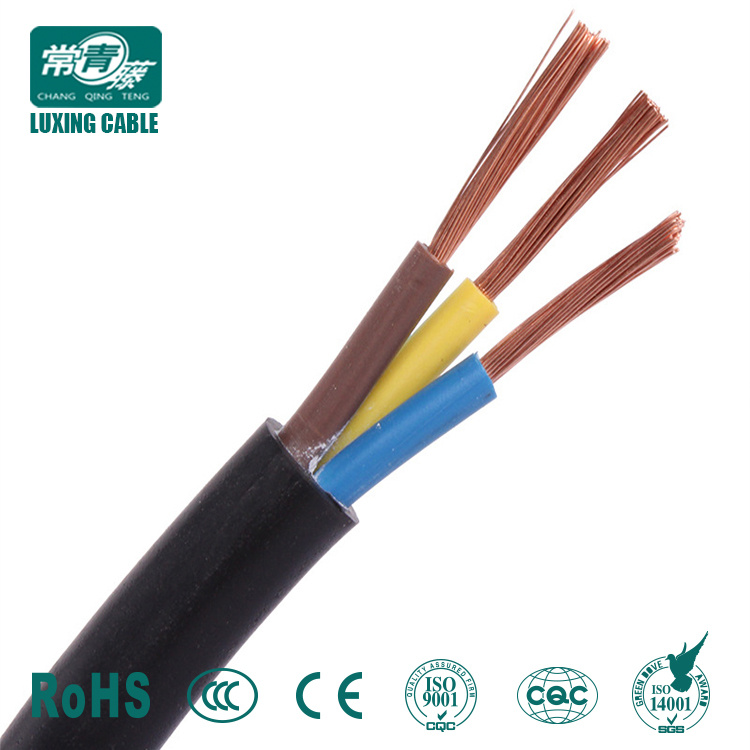

Name: 60227 IEC 53 House Wiring Electrical Cable Rvv
Brand: all-electronics-online.com
SKU: 691245511
Availability: InStock
Rating: 4.8 (103 reviews)

Price:	US $ 0.1-6/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	60227 IEC 53 house wiring electrical cable
Item Name:	60227 IEC 53 House Wiring Electrical Cable
Rated Voltage:	300/500 V 450/750V
Conductor:	Flexible Copper Conductor
Insulation:	PVC
Sheath:	PVC
Standard:	IEC 60227
MOQ:	100
Delivery:	3-10 Working Days
Packaging:	100 Meter One Roll
Color Number:	2 3 4 5 6 7 8
Type:	Insulated
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	VDE
Conductor Type:	Solid / Stranded
Application:	Flexible Cable Wire
Range Of Application:	Lsoh / Flame Retardant
Brand:	Chang Qing Teng

Product Description

Application

The product is applied to AC rated voltage 450/750V and below power plant laid(fixed)wiring. It's widely
used in low voltage power lines,normal electrical equipment, instrumentation and telecommunication equipments.

Technical data

Rated voltage: 300/500V,450/750V

Highest working temperature of conductor: 90°C

Laying temperature:above 0°C

Minimum bending radius:6D

Product description

Type	Description	Rated Voltage
602271EC01(BV)	General purpose single-core hard conductor non-sheath cable	450/720V
602271EC05(BV)	Internal wifing conductor temperature 70oC single-core solid conductor non-sheath calbe	300/500V
6002271EC07(BV-90)	Internal wifing conductor temperature 90oC single-core solid conductor non-sheath calbe	300/500V
600271EC10(BVV)	Light-type PVC sheath cable	300/500V
BLV	Aluminum core PVC insulation cable	450/750V
BVR	Copper core PVC insulation flexible cable	450/750V
BLVV	Aluminum core PVC insulation PVC sheath round cable	300/500V
BVVB	Copper core PVC insulation PVC sheath flat cable	300/500V
BLVVB	Aluminum core PVC insulation PVC sheath flat cable	300/500V
602271EC02(RV)	General purpose single-core flexible conductor non-sheath cable	450/750V
602271EC06(RV)	internal wiring conductor temperature 70oC flexible conductor non-sheath cable	300/500V
602271EC08(RV-90)	Internal wiring conductor temperature 90oC flexible conductor non-sheath cable	300/500V
602271EC52(RVV)	Light-type PVC sheath flexible cable	300/300V
6002271EC53(RVV)	Normal PVC sheath flexible wire	300/500V
602271EC56(RVV-90)	Conductor temperature 90oC of heat-resistance light-type PVC sheath flexible wire	300/300V
RVVP	PVC insulation shield PVC sheath flexible cable	300/300V
RVS	PVC insulation stranded connection flexible wire	300/300V

Flexible wire RVV electric cable Model and name

Sectional Area	Conductor Construction		Insulation Thickness	Sheath Thickness	Overall Diameter	Weight Appr.	Max Conductor Resistance @ 20°C	Min Insulation Resistance @ 70°C	Ampacity in Free Air
mm2	No.	mm	mm	mm	mm	kg/km	Ω/km	MΩ.km	A
2×0.75	24	0.2	0.6	0.8	6.4	58.6	26	0.011	12
2×1.0	32	0.2	0.6	0.8	6.8	66.7	19.5	0.01	14
2×1.5	30	0.25	0.7	0.8	7.8	90.2	13.3	0.01	18
2×2.5	49	0.25	0.8	1	9.4	137.1	7.98	0.009	25
3×0.75	24	0.2	0.6	0.8	6.8	70.3	26	0.011	10
3×1.0	32	0.2	0.6	0.8	7.2	80.7	19.5	0.01	12
3×1.5	30	0.25	0.7	0.9	8.5	112.6	13.3	0.01	16
3×2.5	49	0.25	0.8	1.1	10.2	171.1	7.98	0.009	21
4×0.75	24	0.2	0.6	0.8	7.4	87.8	26	0.011	10
4×1.0	32	0.2	0.6	0.9	8.1	105.1	19.5	0.01	12
4×1.5	30	0.25	0.7	1	9.5	146.1	13.3	0.01	16
4×2.5	49	0.25	0.8	1.1	11.2	215.9	7.98	0.009	21
5×0.75	24	0.2	0.6	0.9	8.3	110.4	26	0.011	10
5×1.0	32	0.2	0.6	0.9	8.8	127.2	19.5	0.01	12
5×1.5	30	0.25	0.7	1.1	10.6	181.0	13.3	0.01	16
5×2.5	49	0.25	0.8	1.2	12.4	267.0	7.98	0.009	21

Shandong New Luxing Cable Co.,Ltd

1.18 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency

Strict Quality Test ( Raw Material & Finished Cable )

Certificates

Type test report

Packaging & Shipping

Contact Information

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
